1. Connection options

Copied.
Connector Gateway
Modbus Zigbee
CN21, CN22
Connector on the indoor-unit PCB 		TB-1-MB-B

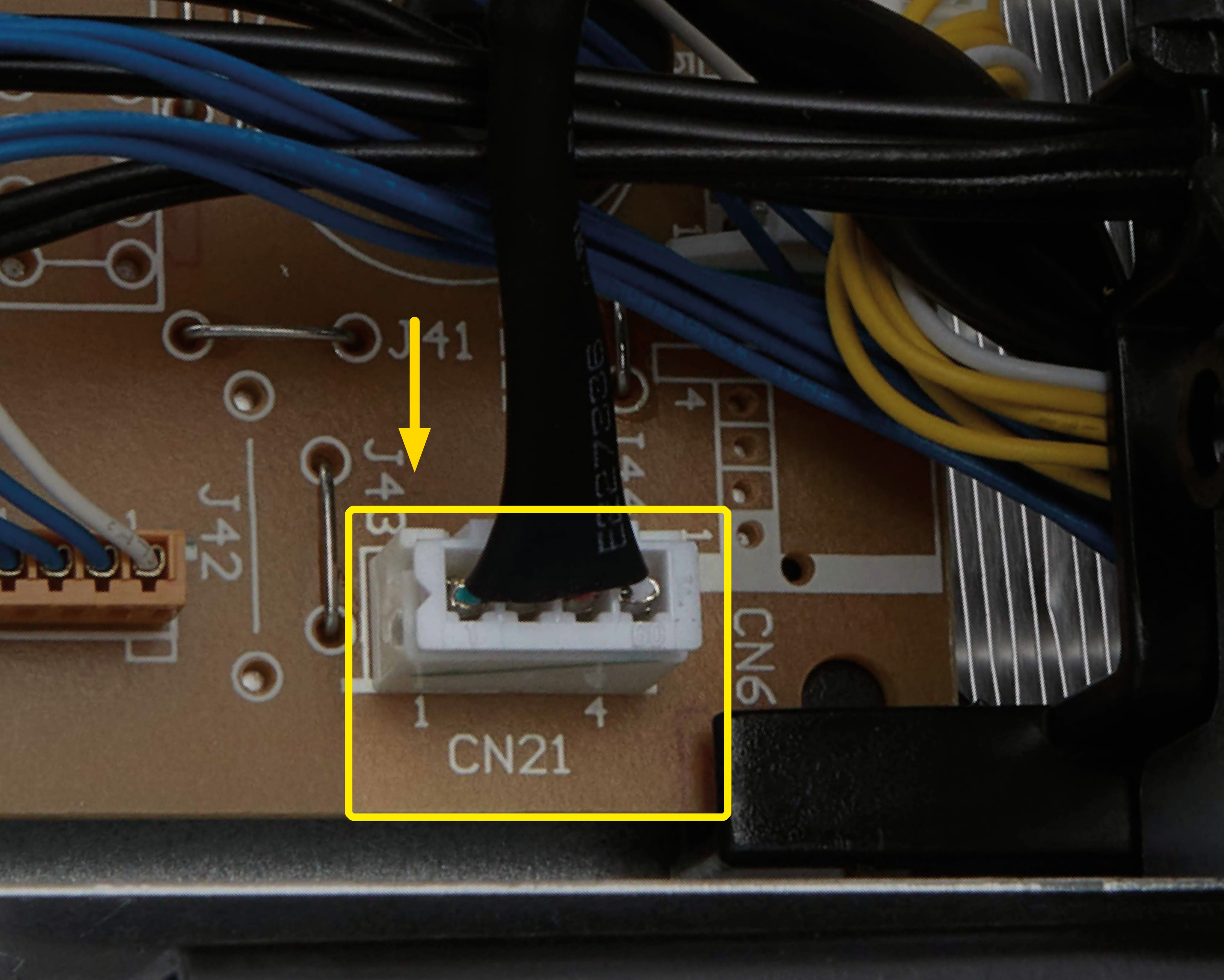

1.1 Connector example CN21

Copied.


loading

Connector example CN21 for connecting a gateway to the Toshiba air conditioner

Connector example CN21 for connecting a gateway to the Toshiba air conditioner

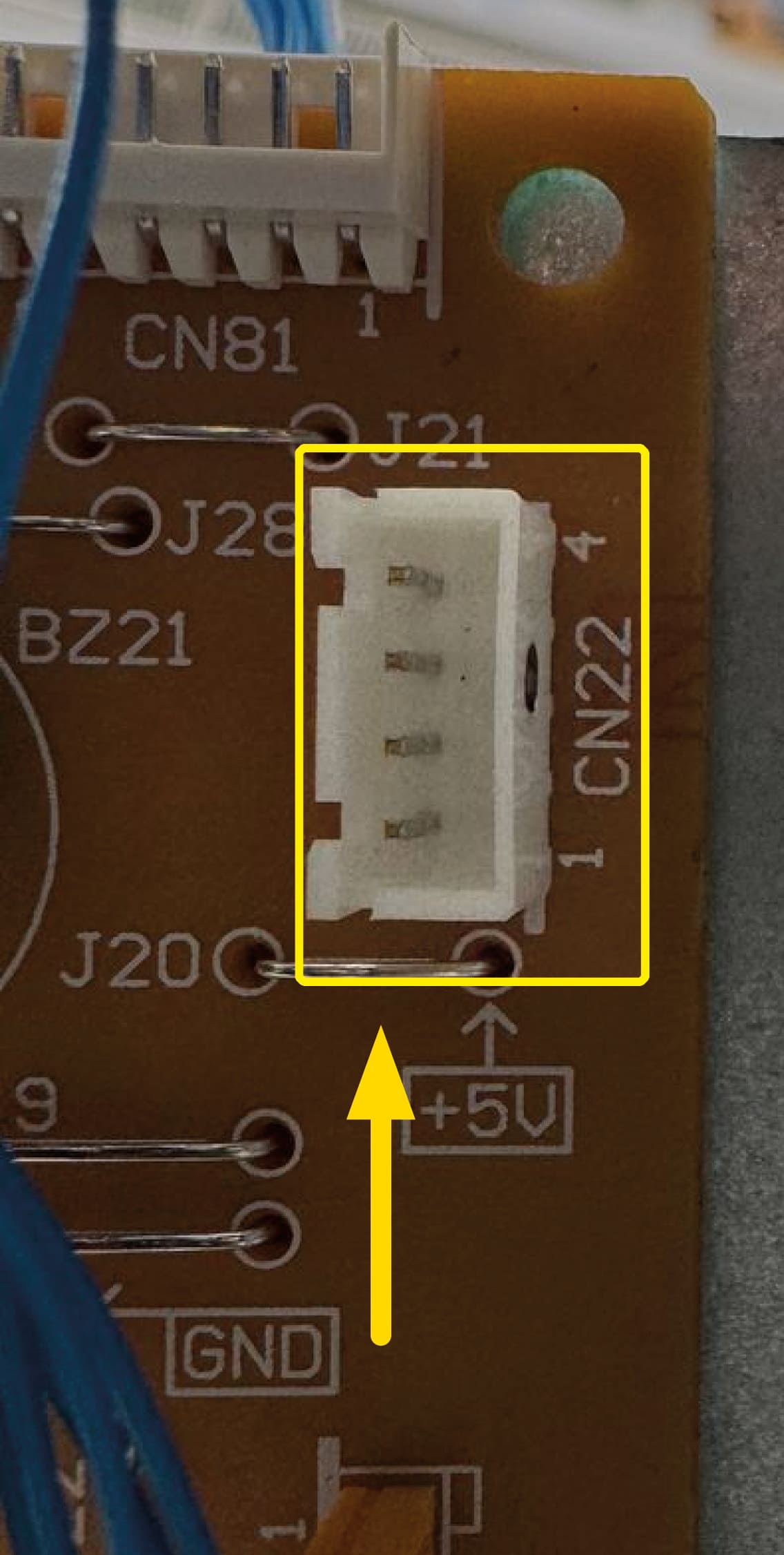

1.2 Connector example CN22

Copied.


loading

Connector example CN22 for connecting a gateway to the Toshiba air conditioner

Connector example CN22 for connecting a gateway to the Toshiba air conditioner

2. Compatible Toshiba air-conditioning models

Copied.

2025

2.1 Air conditioners: 2025

Copied.


Air-conditioning seriesModelGateway
Inverter split systems
Wall-mounted units series Seiya Classic 2RAS-B10B2KVG-E2 | RAS-10B2AVG-E2Modbus: TB-1-MB-B
RAS-B13B2KVG-E2 | RAS-13B2AVG-E2
RAS-B16B2KVG-E2 | RAS-16B2AVG-E2
RAS-B18B2KVG-E2 | RAS-18B2AVG-E2
RAS-B24B2KVG-E2 | RAS-24B2AVG-E2
Wall-mounted units series SeiyaRAS-B10E2KVG-E | RAS-10E2AVG-EModbus: TB-1-MB-B
RAS-B13E2KVG-E | RAS-13E2AVG-E
RAS-B16E2KVG-E | RAS-16E2AVG-E
RAS-B18E2KVG-E | RAS-18E2AVG-E
RAS-B24E2KVG-E | RAS-24E2AVG-E
Wall-mounted units series Shorai Edge WhiteRAS-B10G3KVSG-E | RAS-10J2AVSG-E1Modbus: TB-1-MB-B
RAS-B13G3KVSG-E | RAS-13J2AVSG-E1
RAS-B16G3KVSG-E | RAS-16J2AVSG-E1
RAS-B18G3KVSG-E | RAS-18J2AVSG-E1
RAS-B22G3KVSG-E | RAS-22J2AVSG-E1
RAS-B24G3KVSG-E | RAS-24J2AVSG-E1
Wall-mounted units series Shorai Edge BlackRAS-B10G3KVSGB-E | RAS-10J2AVSG-E1Modbus: TB-1-MB-B
RAS-B13G3KVSGB-E | RAS-13J2AVSG-E1
RAS-B16G3KVSGB-E | RAS-16J2AVSG-E1
RAS-B18G3KVSGB-E | RAS-18J2AVSG-E1
RAS-B22G3KVSGB-E | RAS-22J2AVSG-E1
RAS-B24G3KVSGB-E | RAS-24J2AVSG-E1
Wall-mounted units series HaoriRAS-B10N4KVRG-E1 | RAS-10J2AVSG-E1
Modbus: TB-1-MB-B
RAS-B13N4KVRG-E | RAS-13J2AVSG-E1
RAS-B16N4KVRG-E | RAS-16J2AVSG-E1
Wall-mounted units series Daiseikai 10 WhiteRAS-B10S4KVPG-E | RAS-10S4AVPG-EModbus: TB-1-MB-B
RAS-B13S4KVPG-E | RAS-13S4AVPG-E
RAS-B18S4KVPG-E | RAS-18S4AVPG-E
Wall-mounted units series Daiseikai 10 WoodRAS-B10S4KVDG-E | RAS-10S4AVPG-EModbus: TB-1-MB-B
RAS-B13S4KVDG-E | RAS-13S4AVPG-E
RAS-B18S4KVDG-E | RAS-18S4AVPG-E
Floor-standing units series ConsoleRAS-B10J2FVG-E | RAS-10J2AVSG-E1Modbus: TB-1-MB-B
RAS-B13J2FVG-E | RAS-13J2AVSG-E1
RAS-B18J2FVG-E | RAS-18J2AVSG-E1
Inverter multi-split systems
Wall-mounted units series Seiya Classic 2RAS-B07B2KVG-E2Modbus: TB-1-MB-B
RAS-B10B2KVG-E2
RAS-B13B2KVG-E2
RAS-B16B2KVG-E2
RAS-B18B2KVG-E2
RAS-B24B2KVG-E2
Wall-mounted units series SeiyaRAS-B07E2KVG-EModbus: TB-1-MB-B
RAS-B10E2KVG-E
RAS-B13E2KVG-E
RAS-B16E2KVG-E
RAS-B18E2KVG-E
RAS-B24E2KVG-E
Wall-mounted units series Shorai Edge WhiteRAS-B07G3KVSG-EModbus: TB-1-MB-B
RAS-B10G3KVSG-E
RAS-B13G3KVSG-E
RAS-B16G3KVSG-E
RAS-B18G3KVSG-E
RAS-B22G3KVSG-E
RAS-B24G3KVSG-E
Wall-mounted units series Shorai Edge BlackRAS-B10G3KVSGB-EModbus: TB-1-MB-B
RAS-B13G3KVSGB-E
RAS-B16G3KVSGB-E
RAS-B18G3KVSGB-E
RAS-B22G3KVSGB-E
RAS-B24G3KVSGB-E
Wall-mounted units series HaoriRAS-B10N4KVRG-E1Modbus: TB-1-MB-B
RAS-B13N4KVRG-E
RAS-B16N4KVRG-E
Wall-mounted units series Daiseikai 10 WhiteRAS-B10S4KVPG-EModbus: TB-1-MB-B
RAS-B13S4KVPG-E
RAS-B18S4KVPG-E
Wall-mounted units series Daiseikai 10 WoodRAS-B10S4KVDG-EModbus: TB-1-MB-B
RAS-B13S4KVDG-E
RAS-B18S4KVDG-E
Floor-standing units series ConsoleRAS-B10J2FVG-EModbus: TB-1-MB-B
RAS-B13J2FVG-E
RAS-B18J2FVG-E
One-way cassette unitsRAS-M10G3YVG-ENot supported
RAS-M13G3YVG-E
RAS-M16G3YVG-E
RAS-M24G3YVG-E
Compact four-way cassette unitsRAS-M10S4MUVG-ENot supported
RAS-M13S4MUVG-E
RAS-M16S4MUVG-E
Ducted unitsRAS-M10U2DVG-ENot supported
RAS-M13U2DVG-E
RAS-M16U2DVG-E
RAS-M22U2DVG-E
RAS-M24U2DVG-E
Multi-split outdoor units
Outdoor units| RAS-2M14G3AVG-ENot supported
| RAS-2M18G3AVG-E
| RAS-3M18G3AVG-E
| RAS-3M26G3AVG-E
| RAS-4M27G3AVG-E
| RAS-5M34G3AVG-E
Light-commercial split systems
Wall-mounted units series High WallRAV-HM301KRTP-ENot supported
RAV-HM401KRTP-E
RAV-HM561KRTP-E
RAV-HM801KRTP-E
RAV-HM901KRTP-E
RAV-HM1101KRTP-E
Ceiling-mounted unitsRAV-HM401CTP-ENot supported
RAV-HM561CTP-E
RAV-HM801CTP-E
RAV-HM901CTP-E
RAV-HM1101CTP-E
RAV-HM1401CTP-E
RAV-HM1601CTP-E
Compact four-way cassette unitsRAV-HM301MUTP-ENot supported
RAV-HM401MUTP-E
RAV-HM561MUTP-E
Four-way cassette units SmartRAV-HM561UT-ENot supported
RAV-HM801UT-E
RAV-HM1101UT-E
RAV-HM1401UT-E
Four-way cassette unitsRAV-HM561UTP-ENot supported
RAV-HM801UTP-E
RAV-HM901UTP-E
RAV-HM1101UTP-E
RAV-HM1401UTP-E
RAV-HM1601UTP-E
One-way cassette unitsRAV-HM301U1TP-ENot supported
RAV-HM401U1TP-E
Slim low-static-pressure ducted unitsRAV-HM301SDTY-ENot supported
RAV-HM401SDTY-E
RAV-HM561SDTY-E
RAV-HM801SDTY-E
Medium-static-pressure ducted unitsRAV-HM561BTP-ENot supported
RAV-HM801BTP-E
RAV-HM901BTP-E
RAV-HM1101BTP-E
RAV-HM1401BTP-E
RAV-HM1601BTP-E
High-static-pressure ducted unitsRAV-RM2241DTP-E2Not supported
RAV-RM2801DTP-E2
Column-type unitsRAV-HM561FT-ENot supported
RAV-HM801FT-E
RAV-HM901FT-E
RAV-HM1101FT-E
RAV-HM1401FT-E
RAV-HM1601FT-E
Light-commercial split-system outdoor units
Outdoor units series Digital Inverter CLASSIC| RAV-GV561ATP-ENot supported
| RAV-GV801ATP-E
| RAV-GV1101ATP-E
| RAV-GV1401ATP-E
| RAV-GV1601ATP-E
| RAV-GV1101AT8P-E
| RAV-GV1401AT8P-E
| RAV-GV1601AT8P-E
Outdoor units series Digital Inverter| RAV-GM302ATP-ENot supported
| RAV-GM402ATP-E
| RAV-GM562ATP-E
| RAV-GM802ATW-E
| RAV-GM902ATW-E
| RAV-GM1102ATW-E
| RAV-GM1402ATW-E
| RAV-GM1602ATW-E
| RAV-GM1102AT8W-E
| RAV-GM1402AT8W-E
| RAV-GM1602AT8W-E
Outdoor units series Super Digital Inverter| RAV-GP561ATW-ENot supported
| RAV-GP801ATW-E
| RAV-GP1101AT-E
| RAV-GP1401AT-E1
| RAV-GP1101AT8-E
| RAV-GP1401AT8-E
| RAV-GP1601AT8-E
Outdoor units series Digital Inverter Big Single Fan| RAV-GM2243AT8P-ENot supported
| RAV-GM2803AT8P-E
VRF outdoor units
Outdoor units series SMMS-u| MMY-MUP0801HT8P-ENot supported
| MMY-MUP1001HT8P-E
| MMY-MUP1201HT8P-E
| MMY-MUP1401HT8P-E
| MMY-MUP1601HT8P-E
| MMY-MUP1801HT8P-E
| MMY-MUP2001HT8P-E
| MMY-MUP2201HT8P-E
| MMY-MUP2401HT8P-E1
Outdoor units series MiNi SMMS| MCY-MUG0401HSW-ENot supported
| MCY-MUG0501HSW-E
| MCY-MUG0601HSW-E
| MCY-MHP0406HT-E
| MCY-MHP0506HT-E1
Outdoor units series MiNi SMMS-e| MCY-MHP0404HS8-ENot supported
| MCY-MHP0504HS8-E
| MCY-MHP0604HS8-E
| MCY-MHP0806HS8-E
| MCY-MHP1006HS8-E
Outdoor units series SHRM-e| MMY-MAP0806FT8P-ENot supported
| MMY-MAP1006FT8P-E
| MMY-MAP1206FT8P-E
| MMY-MAP1406FT8P-E
| MMY-MAP1606FT8P-E
| MMY-MAP1806FT8P-E
| MMY-MAP2006FT8P-E
Outdoor units series SHRM-a| MMY-SUG0801MT8P-ENot supported
| MMY-SUG1001MT8P-E
| MMY-SUG1201MT8P-E
| MMY-SUG1401MT8P-E
| MMY-SUG1601MT8P-E
| MMY-SUG1801MT8P-E
| MMY-SUG2001MT8P-E
| MMY-SUG2201MT8P-E
| MMY-SUG2401MT8P-E
VRF systems
Wall-mounted units series HaoriMMK-UP0071DHPL-ENot supported
MMK-UP0091DHPL-E
MMK-UP0121DHPL-E
MMK-UP0151DHPL-E
MMK-UP0181DHPL-E
Wall-mounted units series High WallMMK-UP0031HP-ENot supported
MMK-UP0051HP-E
MMK-UP0071HP-E
MMK-UP0091HP-E
MMK-UP0121HP-E
MMK-UP0151HP-E
MMK-UP0181HP-E
MMK-UP0241HP-E
MMK-UP0271HP-E
MMK-UP0301HP-E
MMK-UP0361HP-E
Wall-mounted units series High Wall with remote EEVMMK-UP0031HPL-ENot supported
MMK-UP0051HPL-E
MMK-UP0071HPL-E
MMK-UP0091HPL-E
MMK-UP0121HPL-E
MMK-UP0151HPL-E
MMK-UP0181HPL-E
MMK-UP0241HPL-E
Ceiling-mounted unitsMMC-UP0151HP-ENot supported
MMC-UP0181HP-E
MMC-UP0241HP-E
MMC-UP0271HP-E
MMC-UP0361HP-E
MMC-UP0481HP-E
MMC-UP0561HP-E
Compact four-way cassette unitsMMU-UP0051MHP-ENot supported
MMU-UP0071MHP-E
MMU-UP0091MHP-E
MMU-UP0121MHP-E
MMU-UP0151MHP-E
MMU-UP0181MHP-E
Four-way cassette unitsMMU-UP0091HP-ENot supported
MMU-UP0121HP-E
MMU-UP0151HP-E
MMU-UP0181HP-E
MMU-UP0241HP-E
MMU-UP0271HP-E
MMU-UP0301HP-E
MMU-UP0361HP-E
MMU-UP0481HP-E
MMU-UP0561HP-E
Four-way cassette units SmartMMU-UP0091H-ENot supported
MMU-UP0121H-E
MMU-UP0151H-E
MMU-UP0181H-E
MMU-UP0241H-E
MMU-UP0271H-E
MMU-UP0301H-E
MMU-UP0361H-E
MMU-UP0481H-E
MMU-UP0561H-E
Two-way cassette unitsMMU-UP0071WH-ENot supported
MMU-UP0091WH-E
MMU-UP0121WH-E
MMU-UP0151WH-E
MMU-UP0181WH-E
MMU-UP0241WH-E
MMU-UP0271WH-E
MMU-UP0301WH-E
MMU-UP0361WH-E
MMU-UP0481WH-E
MMU-UP0561WH-E
One-way cassette unitsMMU-UP0031YHP-ENot supported
MMU-UP0051YHP-E
MMU-UP0071YHP-E
MMU-UP0091YHP-E
MMU-UP0121YHP-E
MMU-UP0151YHP-E
MMU-UP0181YHP-E
MMU-UP0241YHP-E
MMU-UP0271YHP-E
Medium-static-pressure ducted unitsMMD-UP0051BHP-ENot supported
MMD-UP0071BHP-E
MMD-UP0091BHP-E
MMD-UP0121BHP-E
MMD-UP0151BHP-E
MMD-UP0181BHP-E
MMD-UP0241BHP-E
MMD-UP0271BHP-E
MMD-UP0301BHP-E
MMD-UP0361BHP-E
MMD-UP0481BHP-E
MMD-UP0561BHP-E
Slim low-static-pressure ducted unitsMMD-UP0031SPHY-ENot supported
MMD-UP0051SPHY-E
MMD-UP0071SPHY-E
MMD-UP0091SPHY-E
MMD-UP0121SPHY-E
MMD-UP0151SPHY-E
MMD-UP0181SPHY-E
MMD-UP0241SPHY-E
MMD-UP0271SPHY-E
High-static-pressure ducted unitsMMD-UP0181HP-ENot supported
MMD-UP0241HP-E
MMD-UP0271HP-E
MMD-UP0361HP-E
MMD-UP0481HP-E
MMD-UP0561HP-E
MMD-UP0721HP-E1
MMD-UP0961HP-E1
Ducted units with 100% fresh-air intakeMMD-UP0481HFP-ENot supported
MMD-UP0721HFP-E1
MMD-UP0961HFP-E1
MMD-UP1121HFP-E1
MMD-UP1281HFP-E1
Floor-standing units Bi-FlowMML-UP0071NHP-ENot supported
MML-UP0091NHP-E
MML-UP0121NHP-E
MML-UP0151NHP-E
MML-UP0181NHP-E
Concealed console unitsMML-UP0071BH-ENot supported
MML-UP0091BH-E
MML-UP0121BH-E
MML-UP0151BH-E
MML-UP0181BH-E
MML-UP0241BH-E
Column-type unitsMMF-UP0151H-ENot supported
MMF-UP0181H-E
MMF-UP0241H-E
MMF-UP0271H-E
MMF-UP0361H-E
MMF-UP0481H-E
MMF-UP0561H-E
Heat-recovery ventilation unitsVN-U00151SY-ENot supported
VN-U00251SY-E
VN-U00351SY-E
VN-U00501SY-E
VN-U00651SY-E
VN-U00801SY-E
VN-U01001SY-E
Heat-recovery ventilation units with direct coolingMMD-UPV0501HY-ENot supported
MMD-UPV0801HY-E
MMD-UPV1001HY-E

2024

2.2 Air conditioners: 2024

Copied.


Air-conditioning seriesModelGateway
Inverter split systems
Wall-mounted units series DaiseikaiRAS-10PKVPG-E | RAS-10PAVPG-EModbus: TB-1-MB-B
RAS-13PKVPG-E | RAS-13PAVPG-E
RAS-16PKVPG-E | RAS-16PAVPG-E
Wall-mounted units series HaoriRAS-B10N4KVRG-E | RAS-10J2AVSG-E1Modbus: TB-1-MB-B
RAS-B13N4KVRG-E | RAS-13J2AVSG-E1
RAS-B16N4KVRG-E | RAS-16J2AVSG-E1
Wall-mounted units series Shorai EdgeRAS-B07G3KVSG-E | RAS-07J2AVSG-E1Modbus: TB-1-MB-B
RAS-B10G3KVSG-E | RAS-10J2AVSG-E1
RAS-B10G3KVSGB-E | RAS-10J2AVSG-E1
RAS-B13G3KVSG-E | RAS-13J2AVSG-E1
RAS-B13G3KVSGB-E | RAS-13J2AVSG-E1
RAS-B16G3KVSG-E | RAS-16J2AVSG-E1
RAS-B16G3KVSGB-E | RAS-16J2AVSG-E1
RAS-B18G3KVSG-E | RAS-18J2AVSG-E1
RAS-B18G3KVSGB-E | RAS-18J2AVSG-E1
RAS-B22G3KVSG-E | RAS-22J2AVSG-E1
RAS-B22G3KVSGB-E | RAS-22J2AVSG-E1
Wall-mounted units series High Wall Digital InverterRAV-RM301KRTP-E | RAV-GM301ATP-ENot supported
RAV-RM401KRTP-E | RAV-GM401ATP-E
RAV-RM561KRTP-E | RAV-GM561ATP-E
RAV-RM801KRTP-E | RAV-GM801ATP-E
RAV-GM901KRTP-E | RAV-GM901ATP-E
RAV-GM1101KRTP-E | RAV-GM1101AT(8)P-E
Wall-mounted units series SeiyaRAS-B05CKVG-EE | RAS-B05E2KVG-EModbus: TB-1-MB-B
RAS-05CAVG-EE | RAS-05E2AVG-E
RAS-B07CKVG-EE | RAS-07CAVG-EE
RAS-B07E2KVG-E | RAS-07E2AVG-E
RAS-B10CKVG-E | RAS-10CAVG-E
RAS-B10E2KVG-E | RAS-10E2AVG-E
RAS-B13CKVG-E | RAS-13CAVG-E
RAS-B13E2KVG-E | RAS-13E2AVG-E
RAS-B16CKVG-EE | RAS-16CAVG-EE
RAS-B16E2KVG-E | RAS-16E2AVG-E
RAS-18CKVG-E | RAS-18CAVG-E
RAS-18E2KVG-E | RAS-18E2AVG-E
RAS-24CKVG-EE | RAS-24CAVG-EE
RAS-24E2KVG-E | RAS-24E2AVG-E
Floor-standing units series ConsoleRAS-B10J2FVG-E | RAS-10J2AVSG-EModbus: TB-1-MB-B
RAS-B13J2FVG-E | RAS-13J2AVSG-E
RAS-B18J2FVG-E | RAS-18J2AVSG-E
Light-commercial split systems
Compact cassette units series Digital InverterRAV- RM301MUT-E | RAV-GM301ATP-ENot supported
RAV- RM401MUT-E | RAV-GM401ATP-E
RAV- RM561MUT-E
| RAV-GM561ATP-E
Four-way cassette units series Digital InverterRAV-RM561UTP-E | RAV-GM561ATP-ENot supported
RAV-RM801UTP-E | RAV-GM801ATP-E
RAV-GM901UTP-E | RAV-GM901ATP-E
RAV-RM1101UTP-E | RAV-GM1101ATP-E
RAV-RM1401UTP-E | RAV-GM1401ATP-E
RAV-RM1601UTP-E | RAV-GM1601ATP-E
RAV-RM1101UTP-E | RAV-GM1101AT8P-E
RAV-RM1401UTP-E | RAV-GM1401AT8P-E
RAV-RM1601UTP-E | RAV-GM1601AT8P-E
Slim low-static-pressure ducted units series Digital InverterRAV-RM301SDT-E | RAV-GM301ATP-ENot supported
RAV-RM401SDT-E | RAV-GM401ATP-E
RAV-RM561SDT-E | RAV-GM561ATP-E
Medium-static-pressure ducted units series Digital InverterRAV-RM561BTP-E | RAV-GM561ATP-ENot supported
RAV-RM801BTP-E | RAV-GM801ATP-E
RAV-GM901BTP-E | RAV-GM901ATP-E
RAV-RM1101BTP-E | RAV-GM1101ATP-E
RAV-RM1401BTP-E | RAV-GM1401ATP-E
RAV-RM1601BTP-E | RAV-GM1601ATP-E
RAV-RM1101BTP-E | RAV-GM1101AT8P-E
RAV-RM1401BTP-E | RAV-GM1401AT8P-E
RAV-RM1601BTP-E | RAV-GM1601AT8P-E
Ceiling-suspended units series Digital InverterRAV-RM401CTP-E | RAV-GM401ATP-ENot supported
RAV-RM561CTP-E | RAV-GM561ATP-E
RAV-RM801CTP-E | RAV-GM801ATP-E
RAV-GM901CTP-E | RAV-GM901ATP-E
RAV-RM1101CTP-E | RAV-GM1101ATP-E
RAV-RM1401CTP-E | RAV-GM1401ATP-E
RAV-RM1601CTP-E | RAV-GM1601ATP-E
RAV-RM1101CTP-E | RAV-GM1101AT8P-E
RAV-RM1401CTP-E | RAV-GM1401AT8P-E
RAV-RM1601CTP-E | RAV-GM1601AT8P-E
Column-type units series Digital InverterRAV-RM561FT-EN | RAV-GM561ATP-ENot supported
RAV-RM801FT-EN | RAV-GM801ATP-E
RAV-RM1101FT-EN | RAV-GM1101ATP-E
RAV-RM1401FT-EN | RAV-GM1401ATP-E
RAV-RM1601FT-EN | RAV-GM1601ATP-E
RAV-RM1101FT-EN | RAV-GM1101AT8P-E
RAV-RM1401FT-EN | RAV-GM1401AT8P-E
RAV-RM1601FT-EN | RAV-GM1601AT8P-E
Compact cassette units series Super Digital InverterRAV-RM561MUT-E | RAV-GP561ATP-ENot supported
Cassette units Smart series Super Digital InverterRAV-GM561UT-E | RAV-GP561ATP-ENot supported
RAV-GM801UT-E | RAV-GP801AT-E
RAV-GM1101UT-E | RAV-GP1101AT-E
RAV-GM1401UT-E | RAV-GP1401AT-E
Four-way cassette units series Super Digital InverterRAV-RM561UTP-E | RAV-GP561ATP-ENot supported
RAV-RM801UTP-E | RAV-GP801AT-E
RAV-RM1101UTP-E | RAV-GP1101AT-E
RAV-RM1401UTP-E | RAV-GP1401AT-E
RAV–RM1101UTP–E | RAV–GP1101AT8–E
RAV–RM1401UTP–E | RAV–GP1401AT8–E
RAV–RM1601UTP–E | RAV–GP1601AT8–E
Slim low-static-pressure ducted units series Super Digital InverterRAV-RM561SDT-E | RAV-GP561ATP-ENot supported
Medium-static-pressure ducted units series Super Digital InverterRAV-RM561BTP-E | RAV-GP561ATP-ENot supported
RAV-RM801BTP-E | RAV-GP801AT-E
RAV-RM1101BTP-E | RAV-GP1101AT-E
RAV-RM1401BTP-E | RAV-GP1401AT-E
RAV-RM1101BTP-E | RAV-GP1101AT8-E
RAV-RM1401BTP-E | RAV-GP1401AT8-E
RAV-RM1601BTP-E | RAV-GP1601AT8-E
High-static-pressure ducted units series Big Digital InverterRAV-RM2241DTP-E1 | RAV-GM2241AT8-ENot supported
RAV-RM2801DTP-E1 | RAV-GM2801AT8-E
Ceiling-suspended units series Super Digital InverterRAV-RM561CTP-E | RAV-GP561ATP-ENot supported
RAV-RM801CTP-E | RAV-GP801AT-E
RAV-RM1101CTP-E | RAV-GP1101AT-E
RAV-RM1401CTP-E | RAV-GP1401AT-E
RAV-RM1101CTP-E | RAV-GP1101AT8-E
RAV-RM1401CTP-E | RAV-GP1401AT8-E
RAV-RM1601CTP-E | RAV-GP1601AT8-E
Column-type units series Super Digital InverterRAV-RM561FT-EN | RAV-GP561ATP-ENot supported
RAV-RM801FT-EN | RAV-GP801AT-E
RAV-RM1101FT-EN | RAV-GP1101AT-E
RAV-RM1401FT-E | RAV-GP1401AT-E
RAV-RM1101FT-EN | RAV-GP1101AT8-E
RAV-RM1401FT-EN | RAV-GP1401AT8-E
RAV-RM1601FT-EN | RAV-GP1601AT8-E
Multi-split outdoor units series IMS
Outdoor units| RAS-2M10G3AVG-ENot supported
| RAS-2M14G3AVG-E
| RAS-2M18G3AVG-E
| RAS-3M18G3AVG-E
| RAS-3M26G3AVG-E
| RAS-4M27G3AVG-E
| RAS-5M34G3AVG-E
Multi-split systems series IMS
Wall-mounted units series DaiseikaiRAS-M10PKVPG-EModbus: TB-1-MB-B
RAS-M13PKVPG-E
RAS-M16PKVPG-E
Wall-mounted units series HaoriRAS-B10N4KVRG-EModbus: TB-1-MB-B
RAS-B13N4KVRG-E
RAS-B16N4KVRG-E
Wall-mounted units series Shorai EdgeRAS-B07G3KVSG-EModbus: TB-1-MB-B
RAS-B07G3KVSGB-E
RAS-B10G3KVSG-E
RAS-B10G3KVSGB-E
RAS-B13G3KVSG-E
RAS-B13G3KVSGB-E
Wall-mounted units series SeiyaRAS-B05CKVG-EEModbus: TB-1-MB-B
RAS-B05E2KVG-E
RAS-B07CKVG-EE
RAS-B07E2KVG-E
RAS-B10CKVG-E
RAS-B10E2KVG-E
RAS-B13CKVG-E
RAS-B13E2KVG-E
RAS-B16CKVG-EE
RAS-B16E2KVG-E
RAS-18CKVG-E
RAS-B18E2KVG-E
RAS-24CKVG-EE
RAS-B24E2KVG-E
Floor-standing units series ConsoleRAS-B10J2FVG-EModbus: TB-1-MB-B
RAS-B13J2FVG-E
RAS-B18J2FVG-E
Cassette unitsRAS-M10U2MUVG-ENot supported
RAS-M13U2MUVG-E
RAS-M16U2MUVG-E
Low-static-pressure ducted unitsRAS-M07U2DVG-ENot supported
RAS-M10U2DVG-E
RAS-M13U2DVG-E
RAS-M16U2DVG-E
RAS-M22U2DVG-E
RAS-M24U2DVG-E
Multi-split outdoor units series SIMS
Outdoor units| RAV-GM1101ATP-ENot supported
| RAV-GM1401ATP-E
| RAV-GM1601ATP-E
| RAV-GM1101AT8P-E
| RAV-GM1401AT8P-E
| RAV-GM1601AT8P-E
| RAV-GP801AT-E
| RAV-GP1101AT-E
| RAV-GP1401AT-E
| RAV-GP1101AT8-E
| RAV-GP1401AT8-E
| RAV-GP1601AT8-E
| RAV-GM2241AT8-E
| RAV-GM2801AT8-E
Multi-split systems series SIMS
Wall-mounted units series High Wall Digital InverterRAV-RM301KRTP-ENot supported
RAV-RM401KRTP-E
RAV-RM561KRTP-E
RAV-RM801KRTP-E
RAV-GM1101KRTP-E
Compact cassette unitsRAV-RM301MUT-ENot supported
RAV-RM401MUT-E
RAV-RM561MUT-E
Cassette unitsRAV-RM561UTP-ENot supported
RAV-RM801UTP-E
RAV-RM1101UTP-E
RAV-RM1401UTP-E
Slim low-static-pressure ducted unitsRAV- RM301SDT-ENot supported
RAV- RM401SDT-E
RAV-RM561SDT-E
Medium-static-pressure ducted unitsRAV-RM561BTP-ENot supported
RAV-RM801BTP-E
RAV-RM1101BTP-E
RAV-RM1401BTP-E
Ceiling-suspended unitsRAV-RM401CTP-ENot supported
RAV-RM561CTP-E
RAV-RM801CTP-E
RAV-RM1101CTP-E
RAV-RM1401CTP-E
Column-type unitsRAV-RM561FT-ENNot supported
RAV-RM801FT-EN
RAV-RM1101FT-EN
RAV-RM1401FT-EN
Air-to-air heat pumps
Wall-mounted units series Daiseikai NordicRAS-25N4KVPG-ND | RAS-25N4AVPG-NDModbus: TB-1-MB-B
RAS-35N4KVPG-ND | RAS-35N4AVPG-ND
Wall-mounted units series Shorai Edge NordicRAS-25J2KVSG-ND | RAS-25J2AVSG-ND1Modbus: TB-1-MB-B
RAS-35J2KVSG-ND | RAS-35J2AVSG-ND1
Wall-mounted units series High Wall Super Digital Inverter NordicRAV-RM561KRTP-E | RAV-GP561ATP-ENot supported
RAV-RM801KRTP-E | RAV-GP801AT-E
RAV-GM1101KRTP-E | RAV-GP1101AT-E
RAV-GM1101KRTP-E | RAV-GP1101AT8-E
Floor-standing units series Console NordicRAS-25U2FVG-ND | RAS-25U2AVPG-NDModbus: TB-1-MB-B
RAS-35U2FVG-ND | RAS-35U2AVPG-ND

2023

2.3 Air conditioners: 2023

Copied.


Air-conditioning seriesModelGateway
Inverter split systems
Wall-mounted units series DaiseikaiRAS-10PKVPG-E | RAS-10PAVPG-EModbus: TB-1-MB-B
RAS-13PKVPG-E | RAS-13PAVPG-E
RAS-16PKVPG-E | RAS-16PAVPG-E
Wall-mounted units series HaoriRAS-10N4KVRG-EE | RAS-10N4AVRG-EEModbus: TB-1-MB-B
RAS-13N4KVRG-EE | RAS-13N4AVRG-EE
RAS-16N4KVRG-EE | RAS-16N4AVRG-EE
Wall-mounted units series Shorai EdgeRAS-07J2KVSG-EE | RAS-07J2AVSG-EEModbus: TB-1-MB-B
RAS-10J2KVSG-EE | RAS-10J2AVSG-EE
RAS-13J2KVSG-EE | RAS-13J2AVSG-EE
RAS-16J2KVSG-EE | RAS-16J2AVSG-EE
RAS-18J2KVSG-EE | RAS-18J2AVSG-EE
RAS-22J2KVSG-EE | RAS-22J2AVSG-EE
RAS-24J2KVSG-EE | RAS-24J2AVSG-EE
RAS-B07J2KVSG-EE | RAS-07J2AVSG-EE
RAS-B10J2KVSG-EE | RAS-10J2AVSG-EE
RAS-B13J2KVSG-EE | RAS-13J2AVSG-EE
RAS-B16J2KVSG-EE | RAS-16J2AVSG-EE
RAS-B18J2KVSG-EE | RAS-18J2AVSG-EE
RAS-B22J2KVSG-EE | RAS-22J2AVSG-EE
RAS-B24J2KVSG-EE | RAS-24J2AVSG-EE
Wall-mounted units series High Wall Digital InverterRAV-RM301KRTP-E | RAV-GM301ATP-ENot supported
RAV-RM401KRTP-E | RAV-GM401ATP-E
RAV-RM561KRTP-E | RAV-GM561ATP-E
RAV-RM801KRTP-E | RAV-GM801ATP-E
RAV-GM901KRTP-E | RAV-GM901ATP-E
RAV-GM1101KRTP-E | RAV-GM1101AT(8)P-E
Wall-mounted units series SeiyaRAS-05TKVG-EE | RAS-05TAVG-EEModbus: TB-1-MB-B
RAS-B05J2KVG-E | RAS-05J2AVG-E
RAS-07TKVG-EE | RAS-07TAVG-EE
RAS-B07J2KVG-E | RAS-07J2AVG-E
RAS-10TKVG-EE | RAS-10TAVG-EE
RAS-B10J2KVG-E | RAS-10J2AVG-E
RAS-13TKVG-EE | RAS-13TAVG-EE
RAS-B13J2KVG-E | RAS-13J2AVG-E
RAS-16TKVG-EE | RAS-16TAVG-EE
RAS-B16J2KVG-E | RAS16J2AVG-E
RAS-18TKVG-EE | RAS-18TAVG-EE
RAS-B18J2KVG-E | RAS-18J2AVG-E
RAS-24TKVG-EE | RAS-24TAVG-EE
RAS-B24J2KVG-E | RAS-24J2AVG-E
Floor-standing units series ConsoleRAS-B10J2FVG-E | RAS-10J2AVSG-EModbus: TB-1-MB-B
RAS-B13J2FVG-E | RAS-13J2AVSG-E
RAS-B18J2FVG-E | RAS-18J2AVSG-E
Light-commercial split systems
Compact cassette units series Digital InverterRAV- RM301MUT-E | RAV-GM301ATP-ENot supported
RAV- RM401MUT-E | RAV-GM401ATP-E
RAV- RM561MUT-E
| RAV-GM561ATP-E
Four-way cassette units series Digital InverterRAV-RM561UTP-E | RAV-GM561ATP-ENot supported
RAV-RM801UTP-E | RAV-GM801ATP-E
RAV-GM901UTP-E | RAV-GM901ATP-E
RAV-RM1101UTP-E | RAV-GM1101ATP-E
RAV-RM1401UTP-E | RAV-GM1401ATP-E
RAV-RM1601UTP-E | RAV-GM1601ATP-E
RAV-RM1101UTP-E | RAV-GM1101AT8P-E
RAV-RM1401UTP-E | RAV-GM1401AT8P-E
RAV-RM1601UTP-E | RAV-GM1601AT8P-E
Slim low-static-pressure ducted units series Digital InverterRAV-RM301SDT-E | RAV-GM301ATP-ENot supported
RAV-RM401SDT-E | RAV-GM401ATP-E
RAV-RM561SDT-E | RAV-GM561ATP-E
Medium-static-pressure ducted units series Digital InverterRAV-RM561BTP-E | RAV-GM561ATP-ENot supported
RAV-RM801BTP-E | RAV-GM801ATP-E
RAV-GM901BTP-E | RAV-GM901ATP-E
RAV-RM1101BTP-E | RAV-GM1101ATP-E
RAV-RM1401BTP-E | RAV-GM1401ATP-E
RAV-RM1601BTP-E | RAV-GM1601ATP-E
RAV-RM1101BTP-E | RAV-GM1101AT8P-E
RAV-RM1401BTP-E | RAV-GM1401AT8P-E
RAV-RM1601BTP-E | RAV-GM1601AT8P-E
Ceiling-suspended units series Digital InverterRAV-RM401CTP-E | RAV-GM401ATP-ENot supported
RAV-RM561CTP-E | RAV-GM561ATP-E
RAV-RM801CTP-E | RAV-GM801ATP-E
RAV-GM901CTP-E | RAV-GM901ATP-E
RAV-RM1101CTP-E | RAV-GM1101ATP-E
RAV-RM1401CTP-E | RAV-GM1401ATP-E
RAV-RM1601CTP-E | RAV-GM1601ATP-E
RAV-RM1101CTP-E | RAV-GM1101AT8P-E
RAV-RM1401CTP-E | RAV-GM1401AT8P-E
RAV-RM1601CTP-E | RAV-GM1601AT8P-E
Column-type units series Digital InverterRAV-RM561FT-EN | RAV-GM561ATP-ENot supported
RAV-RM801FT-EN | RAV-GM801ATP-E
RAV-RM1101FT-EN | RAV-GM1101ATP-E
RAV-RM1401FT-EN | RAV-GM1401ATP-E
RAV-RM1601FT-EN | RAV-GM1601ATP-E
RAV-RM1101FT-EN | RAV-GM1101AT8P-E
RAV-RM1401FT-EN | RAV-GM1401AT8P-E
RAV-RM1601FT-EN | RAV-GM1601AT8P-E
Compact cassette units series Super Digital InverterRAV-RM561MUT-E | RAV-GP561ATP-ENot supported
Cassette units Smart series Super Digital InverterRAV-GM561UT-E | RAV-GP561ATP-ENot supported
RAV-GM801UT-E | RAV-GP801AT-E
RAV-GM1101UT-E | RAV-GP1101AT-E
RAV-GM1401UT-E | RAV-GP1401AT-E
Four-way cassette units series Super Digital InverterRAV-RM561UTP-E | RAV-GP561ATP-ENot supported
RAV-RM801UTP-E | RAV-GP801AT-E
RAV-RM1101UTP-E | RAV-GP1101AT-E
RAV-RM1401UTP-E | RAV-GP1401AT-E
RAV–RM1101UTP–E | RAV–GP1101AT8–E
RAV–RM1401UTP–E | RAV–GP1401AT8–E
RAV–RM1601UTP–E | RAV–GP1601AT8–E
Slim low-static-pressure ducted units series Super Digital InverterRAV-RM561SDT-E | RAV-GP561ATP-ENot supported
Medium-static-pressure ducted units series Super Digital InverterRAV-RM561BTP-E | RAV-GP561ATP-ENot supported
RAV-RM801BTP-E | RAV-GP801AT-E
RAV-RM1101BTP-E | RAV-GP1101AT-E
RAV-RM1401BTP-E | RAV-GP1401AT-E
RAV-RM1101BTP-E | RAV-GP1101AT8-E
RAV-RM1401BTP-E | RAV-GP1401AT8-E
RAV-RM1601BTP-E | RAV-GP1601AT8-E
High-static-pressure ducted units series Big Digital InverterRAV-RM2241DTP-E1 | RAV-GM2241AT8-ENot supported
RAV-RM2801DTP-E1 | RAV-GM2801AT8-E
Ceiling-suspended units series Super Digital InverterRAV-RM561CTP-E | RAV-GP561ATP-ENot supported
RAV-RM801CTP-E | RAV-GP801AT-E
RAV-RM1101CTP-E | RAV-GP1101AT-E
RAV-RM1401CTP-E | RAV-GP1401AT-E
RAV-RM1101CTP-E | RAV-GP1101AT8-E
RAV-RM1401CTP-E | RAV-GP1401AT8-E
RAV-RM1601CTP-E | RAV-GP1601AT8-E
Column-type units series Super Digital InverterRAV-RM561FT-EN | RAV-GP561ATP-ENot supported
RAV-RM801FT-EN | RAV-GP801AT-E
RAV-RM1101FT-EN | RAV-GP1101AT-E
RAV-RM1401FT-E | RAV-GP1401AT-E
RAV-RM1101FT-EN | RAV-GP1101AT8-E
RAV-RM1401FT-EN | RAV-GP1401AT8-E
RAV-RM1601FT-EN | RAV-GP1601AT8-E
Multi-split outdoor units series IMS
Outdoor units| RAS-2M10U2AVG-ENot supported
| RAS-2M14U2AVG-E
| RAS-2M18U2AVG-E
| RAS-3M18U2AVG-E
| RAS-3M26U2AVG-E
| RAS-4M27U2AVG-E
| RAS-5M34U2AVG-E
Multi-split systems series IMS
Wall-mounted units series DaiseikaiRAS-M10PKVPG-EModbus: TB-1-MB-B
RAS-M13PKVPG-E
RAS-M16PKVPG-E
Wall-mounted units series HaoriRAS-B10N4KVRG-EModbus: TB-1-MB-B
RAS-B13N4KVRG-E
RAS-B16N4KVRG-E
Wall-mounted units series Shorai EdgeRAS-M05J2KVSG-EModbus: TB-1-MB-B
RAS-B07J2KVSG-EE
RAS-B10J2KVSG-EE
RAS-B13J2KVSG-EE
RAS-B16J2KVSG-EE
RAS-B18J2KVSG-EE
RAS-B22J2KVSG-EE
RAS-B24J2KVSG-EE
Wall-mounted units series SeiyaRAS-B05J2KVG-EModbus: TB-1-MB-B
RAS-B07J2KVG-E
RAS-B10J2KVG-E
RAS-B13J2KVG-E
RAS-B16J2KVG-E
Floor-standing units series ConsoleRAS-B10J2FVG-EModbus: TB-1-MB-B
RAS-B13J2FVG-E
RAS-B18J2FVG-E
Cassette unitsRAS-M10U2MUVG-ENot supported
RAS-M13U2MUVG-E
RAS-M16U2MUVG-E
Low-static-pressure ducted unitsRAS-M07U2DVG-ENot supported
RAS-M10U2DVG-E
RAS-M13U2DVG-E
RAS-M16U2DVG-E
RAS-M22U2DVG-E
RAS-M24U2DVG-E
Multi-split outdoor units series SIMS
Outdoor units| RAV-GM1101ATP-ENot supported
| RAV-GM1401ATP-E
| RAV-GM1601ATP-E
| RAV-GM1101AT8P-E
| RAV-GM1401AT8P-E
| RAV-GM1601AT8P-E
| RAV-GP801AT-E
| RAV-GP1101AT-E
| RAV-GP1401AT-E
| RAV-GP1101AT8-E
| RAV-GP1401AT8-E
| RAV-GP1601AT8-E
| RAV-GM2241AT8-E
| RAV-GM2801AT8-E
Multi-split systems series SIMS
Wall-mounted units series High Wall Digital InverterRAV-RM301KRTP-ENot supported
RAV-RM401KRTP-E
RAV-RM561KRTP-E
RAV-RM801KRTP-E
RAV-GM1101KRTP-E
Compact cassette unitsRAV-RM301MUT-ENot supported
RAV-RM401MUT-E
RAV-RM561MUT-E
Cassette unitsRAV-RM561UTP-ENot supported
RAV-RM801UTP-E
RAV-RM1101UTP-E
RAV-RM1401UTP-E
Slim low-static-pressure ducted unitsRAV- RM301SDT-ENot supported
RAV- RM401SDT-E
RAV-RM561SDT-E
Medium-static-pressure ducted unitsRAV-RM561BTP-ENot supported
RAV-RM801BTP-E
RAV-RM1101BTP-E
RAV-RM1401BTP-E
Ceiling-suspended unitsRAV-RM401CTP-ENot supported
RAV-RM561CTP-E
RAV-RM801CTP-E
RAV-RM1101CTP-E
RAV-RM1401CTP-E
Column-type unitsRAV-RM561FT-ENNot supported
RAV-RM801FT-EN
RAV-RM1101FT-EN
RAV-RM1401FT-EN
Air-to-air heat pumps
Wall-mounted units series Daiseikai NordicRAS-25N4KVPG-ND | RAS-25N4AVPG-NDModbus: TB-1-MB-B
RAS-35N4KVPG-ND | RAS-35N4AVPG-ND
Wall-mounted units series Shorai Edge NordicRAS-25J2KVSG-ND | RAS-25J2AVSG-ND1Modbus: TB-1-MB-B
RAS-35J2KVSG-ND | RAS-35J2AVSG-ND1
Wall-mounted units series High Wall Super Digital Inverter NordicRAV-RM561KRTP-E | RAV-GP561ATP-ENot supported
RAV-RM801KRTP-E | RAV-GP801AT-E
RAV-GM1101KRTP-E | RAV-GP1101AT-E
RAV-GM1101KRTP-E | RAV-GP1101AT8-E
Floor-standing units series Console NordicRAS-25U2FVG-ND | RAS-25U2AVPG-NDModbus: TB-1-MB-B
RAS-35U2FVG-ND | RAS-35U2AVPG-ND

2022

2.4 Air conditioners: 2022

Copied.


Air-conditioning seriesModelGateway
Inverter split systems
Wall-mounted units series DaiseikaiRAS-10PKVPG-E | RAS-10PAVPG-EModbus: TB-1-MB-B
RAS-13PKVPG-E | RAS-13PAVPG-E
RAS-16PKVPG-E | RAS-16PAVPG-E
Wall-mounted units series HaoriRAS-10N4KVRG-EE | RAS-10N4AVRG-EEModbus: TB-1-MB-B
RAS-13N4KVRG-EE | RAS-13N4AVRG-EE
RAS-16N4KVRG-EE | RAS-16N4AVRG-EE
Wall-mounted units series Shorai EdgeRAS-07J2KVSG-EE | RAS-07J2AVSG-EEModbus: TB-1-MB-B
RAS-10J2KVSG-EE | RAS-10J2AVSG-EE
RAS-13J2KVSG-EE | RAS-13J2AVSG-EE
RAS-16J2KVSG-EE | RAS-16J2AVSG-EE
RAS-18J2KVSG-EE | RAS-18J2AVSG-EE
RAS-22J2KVSG-EE | RAS-22J2AVSG-EE
RAS-24J2KVSG-EE | RAS-24J2AVSG-EE
RAS-B07J2KVSG-EE | RAS-07J2AVSG-EE
RAS-B10J2KVSG-EE | RAS-10J2AVSG-EE
RAS-B13J2KVSG-EE | RAS-13J2AVSG-EE
RAS-B16J2KVSG-EE | RAS-16J2AVSG-EE
RAS-B18J2KVSG-EE | RAS-18J2AVSG-EE
RAS-B22J2KVSG-EE | RAS-22J2AVSG-EE
RAS-B24J2KVSG-EE | RAS-24J2AVSG-EE
Wall-mounted units series High Wall Digital InverterRAV-RM301KRTP-E | RAV-GM301ATP-ENot supported
RAV-RM401KRTP-E | RAV-GM401ATP-E
RAV-RM561KRTP-E | RAV-GM561ATP-E
RAV-RM801KRTP-E | RAV-GM801ATP-E
RAV-GM901KRTP-E | RAV-GM901ATP-E
RAV-GM1101KRTP-E | RAV-GM1101AT(8)P-E
Wall-mounted units series SeiyaRAS-05TKVG-EE | RAS-05TAVG-EEModbus: TB-1-MB-B
RAS-B05J2KVG-E | RAS-05J2AVG-E
RAS-07TKVG-EE | RAS-07TAVG-EE
RAS-B07J2KVG-E | RAS-07J2AVG-E
RAS-10TKVG-EE | RAS-10TAVG-EE
RAS-B10J2KVG-E | RAS-10J2AVG-E
RAS-13TKVG-EE | RAS-13TAVG-EE
RAS-B13J2KVG-E | RAS-13J2AVG-E
RAS-16TKVG-EE | RAS-16TAVG-EE
RAS-B16J2KVG-E | RAS16J2AVG-E
RAS-18TKVG-EE | RAS-18TAVG-EE
RAS-B18J2KVG-E | RAS-18J2AVG-E
RAS-24TKVG-EE | RAS-24TAVG-EE
RAS-B24J2KVG-E | RAS-24J2AVG-E
Floor-standing units series ConsoleRAS-B10J2FVG-E | RAS-10J2AVSG-EModbus: TB-1-MB-B
RAS-B13J2FVG-E | RAS-13J2AVSG-E
RAS-B18J2FVG-E | RAS-18J2AVSG-E
Light-commercial split systems
Compact cassette units series Digital InverterRAV- RM301MUT-E | RAV-GM301ATP-ENot supported
RAV- RM401MUT-E | RAV-GM401ATP-E
RAV- RM561MUT-E
| RAV-GM561ATP-E
Four-way cassette units series Digital InverterRAV-RM561UTP-E | RAV-GM561ATP-ENot supported
RAV-RM801UTP-E | RAV-GM801ATP-E
RAV-GM901UTP-E | RAV-GM901ATP-E
RAV-RM1101UTP-E | RAV-GM1101ATP-E
RAV-RM1401UTP-E | RAV-GM1401ATP-E
RAV-RM1601UTP-E | RAV-GM1601ATP-E
RAV-RM1101UTP-E | RAV-GM1101AT8P-E
RAV-RM1401UTP-E | RAV-GM1401AT8P-E
RAV-RM1601UTP-E | RAV-GM1601AT8P-E
Slim low-static-pressure ducted units series Digital InverterRAV-RM301SDT-E | RAV-GM301ATP-ENot supported
RAV-RM401SDT-E | RAV-GM401ATP-E
RAV-RM561SDT-E | RAV-GM561ATP-E
Medium-static-pressure ducted units series Digital InverterRAV-RM561BTP-E | RAV-GM561ATP-ENot supported
RAV-RM801BTP-E | RAV-GM801ATP-E
RAV-GM901BTP-E | RAV-GM901ATP-E
RAV-RM1101BTP-E | RAV-GM1101ATP-E
RAV-RM1401BTP-E | RAV-GM1401ATP-E
RAV-RM1601BTP-E | RAV-GM1601ATP-E
RAV-RM1101BTP-E | RAV-GM1101AT8P-E
RAV-RM1401BTP-E | RAV-GM1401AT8P-E
RAV-RM1601BTP-E | RAV-GM1601AT8P-E
Ceiling-suspended units series Digital InverterRAV-RM401CTP-E | RAV-GM401ATP-ENot supported
RAV-RM561CTP-E | RAV-GM561ATP-E
RAV-RM801CTP-E | RAV-GM801ATP-E
RAV-GM901CTP-E | RAV-GM901ATP-E
RAV-RM1101CTP-E | RAV-GM1101ATP-E
RAV-RM1401CTP-E | RAV-GM1401ATP-E
RAV-RM1601CTP-E | RAV-GM1601ATP-E
RAV-RM1101CTP-E | RAV-GM1101AT8P-E
RAV-RM1401CTP-E | RAV-GM1401AT8P-E
RAV-RM1601CTP-E | RAV-GM1601AT8P-E
Column-type units series Digital InverterRAV-RM561FT-EN | RAV-GM561ATP-ENot supported
RAV-RM801FT-EN | RAV-GM801ATP-E
RAV-RM1101FT-EN | RAV-GM1101ATP-E
RAV-RM1401FT-EN | RAV-GM1401ATP-E
RAV-RM1601FT-EN | RAV-GM1601ATP-E
RAV-RM1101FT-EN | RAV-GM1101AT8P-E
RAV-RM1401FT-EN | RAV-GM1401AT8P-E
RAV-RM1601FT-EN | RAV-GM1601AT8P-E
Compact cassette units series Super Digital InverterRAV-RM561MUT-E | RAV-GP561ATP-ENot supported
Cassette units Smart series Super Digital InverterRAV-GM561UT-E | RAV-GP561ATP-ENot supported
RAV-GM801UT-E | RAV-GP801AT-E
RAV-GM1101UT-E | RAV-GP1101AT-E
RAV-GM1401UT-E | RAV-GP1401AT-E
Four-way cassette units series Super Digital InverterRAV-RM561UTP-E | RAV-GP561ATP-ENot supported
RAV-RM801UTP-E | RAV-GP801AT-E
RAV-RM1101UTP-E | RAV-GP1101AT-E
RAV-RM1401UTP-E | RAV-GP1401AT-E
RAV–RM1101UTP–E | RAV–GP1101AT8–E
RAV–RM1401UTP–E | RAV–GP1401AT8–E
RAV–RM1601UTP–E | RAV–GP1601AT8–E
Slim low-static-pressure ducted units series Super Digital InverterRAV-RM561SDT-E | RAV-GP561ATP-ENot supported
Medium-static-pressure ducted units series Super Digital InverterRAV-RM561BTP-E | RAV-GP561ATP-ENot supported
RAV-RM801BTP-E | RAV-GP801AT-E
RAV-RM1101BTP-E | RAV-GP1101AT-E
RAV-RM1401BTP-E | RAV-GP1401AT-E
RAV-RM1101BTP-E | RAV-GP1101AT8-E
RAV-RM1401BTP-E | RAV-GP1401AT8-E
RAV-RM1601BTP-E | RAV-GP1601AT8-E
High-static-pressure ducted units series Big Digital InverterRAV-RM2241DTP-E1 | RAV-GM2241AT8-ENot supported
RAV-RM2801DTP-E1 | RAV-GM2801AT8-E
Ceiling-suspended units series Super Digital InverterRAV-RM561CTP-E | RAV-GP561ATP-ENot supported
RAV-RM801CTP-E | RAV-GP801AT-E
RAV-RM1101CTP-E | RAV-GP1101AT-E
RAV-RM1401CTP-E | RAV-GP1401AT-E
RAV-RM1101CTP-E | RAV-GP1101AT8-E
RAV-RM1401CTP-E | RAV-GP1401AT8-E
RAV-RM1601CTP-E | RAV-GP1601AT8-E
Column-type units series Super Digital InverterRAV-RM561FT-EN | RAV-GP561ATP-ENot supported
RAV-RM801FT-EN | RAV-GP801AT-E
RAV-RM1101FT-EN | RAV-GP1101AT-E
RAV-RM1401FT-E | RAV-GP1401AT-E
RAV-RM1101FT-EN | RAV-GP1101AT8-E
RAV-RM1401FT-EN | RAV-GP1401AT8-E
RAV-RM1601FT-EN | RAV-GP1601AT8-E
Multi-split outdoor units series IMS
Outdoor units| RAS-2M10U2AVG-ENot supported
| RAS-2M14U2AVG-E
| RAS-2M18U2AVG-E
| RAS-3M18U2AVG-E
| RAS-3M26U2AVG-E
| RAS-4M27U2AVG-E
| RAS-5M34U2AVG-E
Multi-split systems series IMS
Wall-mounted units series DaiseikaiRAS-M10PKVPG-EModbus: TB-1-MB-B
RAS-M13PKVPG-E
RAS-M16PKVPG-E
Wall-mounted units series HaoriRAS-B10N4KVRG-EModbus: TB-1-MB-B
RAS-B13N4KVRG-E
RAS-B16N4KVRG-E
Wall-mounted units series Shorai EdgeRAS-M05J2KVSG-EModbus: TB-1-MB-B
RAS-B07J2KVSG-EE
RAS-B10J2KVSG-EE
RAS-B13J2KVSG-EE
RAS-B16J2KVSG-EE
RAS-B18J2KVSG-EE
RAS-B22J2KVSG-EE
RAS-B24J2KVSG-EE
Wall-mounted units series SeiyaRAS-B05J2KVG-EModbus: TB-1-MB-B
RAS-B07J2KVG-E
RAS-B10J2KVG-E
RAS-B13J2KVG-E
RAS-B16J2KVG-E
Floor-standing units series ConsoleRAS-B10J2FVG-EModbus: TB-1-MB-B
RAS-B13J2FVG-E
RAS-B18J2FVG-E
Cassette unitsRAS-M10U2MUVG-ENot supported
RAS-M13U2MUVG-E
RAS-M16U2MUVG-E
Low-static-pressure ducted unitsRAS-M07U2DVG-ENot supported
RAS-M10U2DVG-E
RAS-M13U2DVG-E
RAS-M16U2DVG-E
RAS-M22U2DVG-E
RAS-M24U2DVG-E
Multi-split outdoor units series SIMS
Outdoor units| RAV-GM1101ATP-ENot supported
| RAV-GM1401ATP-E
| RAV-GM1601ATP-E
| RAV-GM1101AT8P-E
| RAV-GM1401AT8P-E
| RAV-GM1601AT8P-E
| RAV-GP801AT-E
| RAV-GP1101AT-E
| RAV-GP1401AT-E
| RAV-GP1101AT8-E
| RAV-GP1401AT8-E
| RAV-GP1601AT8-E
| RAV-GM2241AT8-E
| RAV-GM2801AT8-E
Multi-split systems series SIMS
Wall-mounted units series High Wall Digital InverterRAV-RM301KRTP-ENot supported
RAV-RM401KRTP-E
RAV-RM561KRTP-E
RAV-RM801KRTP-E
RAV-GM1101KRTP-E
Compact cassette unitsRAV-RM301MUT-ENot supported
RAV-RM401MUT-E
RAV-RM561MUT-E
Cassette unitsRAV-RM561UTP-ENot supported
RAV-RM801UTP-E
RAV-RM1101UTP-E
RAV-RM1401UTP-E
Slim low-static-pressure ducted unitsRAV- RM301SDT-ENot supported
RAV- RM401SDT-E
RAV-RM561SDT-E
Medium-static-pressure ducted unitsRAV-RM561BTP-ENot supported
RAV-RM801BTP-E
RAV-RM1101BTP-E
RAV-RM1401BTP-E
Ceiling-suspended unitsRAV-RM401CTP-ENot supported
RAV-RM561CTP-E
RAV-RM801CTP-E
RAV-RM1101CTP-E
RAV-RM1401CTP-E
Column-type unitsRAV-RM561FT-ENNot supported
RAV-RM801FT-EN
RAV-RM1101FT-EN
RAV-RM1401FT-EN
Air-to-air heat pumps
Wall-mounted units series Daiseikai NordicRAS-25N4KVPG-ND | RAS-25N4AVPG-NDModbus: TB-1-MB-B
RAS-35N4KVPG-ND | RAS-35N4AVPG-ND
Wall-mounted units series Shorai Edge NordicRAS-25J2KVSG-ND | RAS-25J2AVSG-ND1Modbus: TB-1-MB-B
RAS-35J2KVSG-ND | RAS-35J2AVSG-ND1
Wall-mounted units series High Wall Super Digital Inverter NordicRAV-RM561KRTP-E | RAV-GP561ATP-ENot supported
RAV-RM801KRTP-E | RAV-GP801AT-E
RAV-GM1101KRTP-E | RAV-GP1101AT-E
RAV-GM1101KRTP-E | RAV-GP1101AT8-E
Floor-standing units series Console NordicRAS-25U2FVG-ND | RAS-25U2AVPG-NDModbus: TB-1-MB-B
RAS-35U2FVG-ND | RAS-35U2AVPG-ND
VRF outdoor units
Outdoor units series Sideblow| MCY-MHP0406HT-ENot supported
| MCY-MHP0506HT-E
Outdoor units series MiNi SMMS-e 1Ph| MCY-MHP0404HS-ENot supported
| MCY-MHP0504HS-E
| MCY-MHP0604HS-E
Outdoor units series MiNi SMMS-e 3Ph| MCY-MHP0404HS8-ENot supported
| MCY-MHP0504HS8-E
| MCY-MHP0604HS8-E
| MCY-MHP0806HS8-E
| MCY-MHP1006HS8-E
Outdoor units series SMMS-u| MUP0801HT8P-ENot supported
| MUP1001HT8P-E
| MUP1201HT8P-E
| MUP1401HT8P-E
| MUP1601HT8P-E
| MUP1801HT8P-E
| MUP2001HT8P-E
| MUP2201HT8P-E
| MUP2401HT8P-E
| MMY-UP2611HT8P-E
| MMY-UP2811HT8P-E
| MMY-UP3011HT8P-E
| MMY-UP3211HT8P-E
| MMY-UP3411HT8P-E
| MMY-UP3611HT8P-E
| MMY-UP3611HT8P-E
| MMY-UP4011HT8P-E
| MMY-UP4211HT8P-E
| MMY-UP4411HT8P-E
| MMY-UP4611HT8P-E
| MMY-UP4811HT8P-E
| MMY-UP5011HT8P-E
| MMY-UP5211HT8P-E
| MMY-UP5411HT8P-E
| MMY-UP5611HT8P-E
| MMY-UP5811HT8P-E
| MMY-UP6011HT8P-E
| MMY-UP6211HT8P-E
| MMY-UP6411HT8P-E
| MMY-UP6611HT8P-E
| MMY-UP6811HT8P-E
| MMY-UP7011HT8P-E
| MMY-UP7211HT8P-E
| MMY-UP7411HT8P-E
| MMY-UP7611HT8P-E
| MMY-UP7811HT8P-E
| MMY-UP8011HT8P-E
| MMY-UP8211HT8P-E
| MMY-UP8411HT8P-E
| MMY-UP8611HT8P-E
| MMY-UP8811HT8P-E
| MMY-UP9011HT8P-E
| MMY-UP9211HT8P-E
| MMY-UP9411HT8P-E
| MMY-UP9611HT8P-E
| MMY-UP9811HT8P-E
| MMY-UP10011HT8P-E
| MMY-UP10211HT8P-E
| MMY-UP10411HT8P-E
| MMY-UP10611HT8P-E
| MMY-UP10811HT8P-E
| MMY-UP11011HT8P-E
| MMY-UP11211HT8P-E
| MMY-UP11411HT8P-E
| MMY-UP11611HT8P-E
| MMY-UP11811HT8P-E
| MMY-UP12011HT8P-E
Outdoor units series SHRM-a| SUG0801MT8P-ENot supported
| SUG1001MT8P-E
| SUG1201MT8P-E
| SUG1401MT8P-E
| SUG1601MT8P-E
| SUG1801MT8P-E
| SUG2001MT8P-E
| SUG2201MT8P-E
| SUG2401MT8P-E
VRF systems
Wall-mounted units series High WallMMK-UP0031HP-ENot supported
MMK-UP0031HPL-E
MMK-UP0051HP-E
MMK-UP0051HPL-E
MMK-UP0071HP-E
MMK-UP0071HPL-E
MMK-UP0091HP-E
MMK-UP0091HPL-E
MMK-UP0121HP-E
MMK-UP0121HPL-E
MMK-UP0151HP-E
MMK-UP0151HPL-E
MMK-UP0181HP-E
MMK-UP0181HPL-E
MMK-UP0241HP-E
MMK-UP0241HPL-E
MMK-UP0271HP-E
MMK-UP0301HP-E
MMK-UP0361HP-E
Compact four-way cassette unitsMMU-UP0051MH-ENot supported
MMU-UP0071MH-E
MMU-UP0091MH-E
MMU-UP0121MH-E
MMU-UP0151MH-E
MMU-UP0181MH-E
Four-way cassette units SmartMMU-UP0091H-ENot supported
MMU-UP0121H-E
MMU-UP0151H-E
MMU-UP0181H-E
MMU-UP0241H-E
MMU-UP0271H-E
MMU-UP0301H-E
MMU-UP0361H-E
MMU-UP0481H-E
MMU-UP0561H-E
Four-way cassette unitsMMU-UP0091HP-ENot supported
MMU-UP0121HP-E
MMU-UP0151HP-E
MMU-UP0181HP-E
MMU-UP0241HP-E
MMU-UP0271HP-E
MMU-UP0301HP-E
MMU-UP0361HP-E
MMU-UP0481HP-E
MMU-UP0561HP-E
Two-way cassette unitsMMU-UP0071WH-ENot supported
MMU-UP0091WH-E
MMU-UP0121WH-E
MMU-UP0161WH-E
MMU-UP0181WH-E
MMU-UP0181MH-E
MMU-UP0271WH-E
MMU-UP0301WH-E
MMU-UP0361WH-E
MMU-UP0481WH-E
MMU-UP0561WH-E
One-way cassette unitsMMU-UP0031YHP-ENot supported
MMU-UP0051YHP-E
MMU-UP0071YHP-E
MMU-UP0091YHP-E
MMU-UP0121YHP-E
MMU-UP0151YHP-E
MMU-UP0181SH-E
MMU-UP0241YHP-E
MMU-UP0271YHP-E
Slim low-static-pressure ducted unitsMMD-UP0031SPHY-ENot supported
MMD-UP0051SPHY-E
MMD-UP0071SPHY-E
MMD-UP0091SPHY-E
MMD-UP0121SPHY-E
MMD-UP0151SPHY-E
MMD-UP0181SPHY-E
MMD-UP0241SPHY-E
MMD-UP0271SPHY-E
Medium-static-pressure ducted unitsMMD-UP0051BHP-ENot supported
MMD-UP0071BHP-E
MMD-UP0091BHP-E
MMD-UP0121BHP-E
MMD-UP0151BHP-E
MMD-UP0181BHP-E
MMD-UP0241BHP-E
MMD-UP0271BHP-E
MMD-UP0301BHP-E
MMD-UP0361BHP-E
MMD-UP0481BHP-E
MMD-UP0561BHP-E
High-static-pressure ducted unitsMMD-UP0181HP-ENot supported
MMD-UP0241HP-E
MMD-UP0271HP-E
MMD-UP0361HP-E
MMD-UP0481HP-E
MMD-UP0561HP-E
MMD-UP0721HP-E
MMD-UP0961HP-E
High-static-pressure ducted units with 100% fresh-air supplyMMD-UP0481HFP-ENot supported
MMD-UP0721HFP-E
MMD-UP0961HFP-E
MMD-UP1121HFP-E
MMD-UP1281HFP-E
Heat-recovery ventilation units with cooling and humidificationMMD-VN502HEX1ENot supported
MMD-VN802HEX1E
MMD-VN1002HEX1E
MMD-VNK502HEX1E
MMD-VNK802HEX1E
MMD-VNK1002HEX1E
Heat-recovery ventilation unitsVN-M150HENot supported
VN-M250HE
VN-M350HE
VN-M500HE
VN-M650HE
VN-M800HE
VN-M800HE
VN-M800HE
VN-M2000HE1
Ceiling-mounted unitsMMC-UP0151HP-ENot supported
MMC-UP0181HP-E
MMC-UP0241HP-E
MMC-UP0271HP-E
MMC-UP0361HP-E
MMC-UP0481HP-E
MMC-UP0561HP-E
Floor-standing units Bi-FlowMML-UP0071NH-ENot supported
MML-UP0091NH-E
MML-UP0121NH-E
MML-UP0151NH-E
MML-UP0181NH-E
Console unitsMML-UP0071H-ENot supported
MML-UP0091H-E
MML-UP0121H-E
MML-UP0151H-E
MML-UP0181H-E
MML-UP0241H-E
Concealed console unitsMML-UP0071BH-ENot supported
MML-UP0091BH-E
MML-UP0121BH-E
MML-UP0151BH-E
MML-UP0181BH-E
MML-UP0241BH-E
Column-type unitsMMF-UP0151H-ENot supported
MMF-UP0181H-E
MMF-UP0241H-E
MMF-UP0271H-E
MMC-UP0151HP-E
MMC-UP0181HP-E
MMC-UP0241HP-E
Water-heating moduleMMW-UP0271LQ-ENot supported
MMW-UP0561LQ-E

2021

2.5 Air conditioners: 2021

Copied.


Air-conditioning seriesModelGateway
Inverter split systems
Wall-mounted units series HaoriRAS-B10N4KVRG-E | RAS-10J2AVSG-E1Modbus: TB-1-MB-B
RAS-B13N4KVRG-E | RAS-13J2AVSG-E1
RAS-B16N4KVRG-E | RAS-16J2AVSG-E1
Wall-mounted units series Daiseikai 9RAS-10PKVPG-E | RAS-10PAVPG-EModbus: TB-1-MB-B
RAS-13PKVPG-E | RAS-13PAVPG-E
RAS-16PKVPG-E | RAS-16PAVPG-E
Wall-mounted units series Shorai PremiumRAS-B10J2KVRG-E | RAS-10J2AVRG-EModbus: TB-1-MB-B
RAS-B13J2KVRG-E | RAS-13J2AVRG-E
RAS-B16J2KVRG-E | RAS-16J2AVRG-E
RAS-18J2KVRG-E | RAS-18J2AVRG-E
RAS-B22J2KVRG-E | RAS-22J2AVRG-E
RAS-B24J2KVRG-E | RAS-24J2AVRG-E
Wall-mounted units series Shorai EdgeRAS-B07J2KVSG-E | RAS-07J2AVSG-EModbus: TB-1-MB-B
RAS-B10J2KVSG-E | RAS-10J2AVSG-E
RAS-B13J2KVSG-E | RAS-13J2AVSG-E
RAS-B16J2KVSG-E | RAS-16J2AVSG-E
RAS-18J2KVSG-E | RAS-18J2AVSG-E
RAS-B22J2KVSG-E | RAS-22J2AVSG-E
RAS-B24J2KVSG-E | RAS-24J2AVSG-E
Wall-mounted units series SeiyaRAS-B05J2KVG-E | RAS-05J2AVG-EModbus: TB-1-MB-B
RAS-B07J2KVG-E | RAS-07J2AVG-E
RAS-B10J2KVG-E | RAS-10J2AVG-E
RAS-B13J2KVG-E | RAS-13J2AVG-E
RAS-B16J2KVG-E | RAS-16J2AVG-E
RAS-18J2KVG-E | RAS-18J2AVG-E
RAS-24J2KVG-E | RAS-24J2AVG-E
Floor-standing units series ConsoleRAS-B10J2FVG-E | RAS-10J2AVSG-E1Modbus: TB-1-MB-B
RAS-B13J2FVG-E | RAS-13J2AVSG-E1
RAS-B18J2FVG-E | RAS-18J2AVSG-E
Multi-split outdoor units
Outdoor units| RAS-2M10U2AVG-ENot supported
| RAS-2M10U2AVG-TR
| RAS-2M14U2AVG-E
| RAS-2M14U2AVG-TR
| RAS-2M18U2AVG-E
| RAS-2M18U2AVG-TR
| RAS-3M18U2AVG-E
| RAS-3M18U2AVG-TR
| RAS-3M26U2AVG-E
| RAS-3M26U2AVG-TR
| RAS-4M27U2AVG-E
| RAS-4M27U2AVG-TR
| RAS-5M34U2AVG-E
| RAS-5M34U2AVG-TR
Multi-split systems
Wall-mounted units series Daiseikai 9RAS-M10PKVPG-EModbus: TB-1-MB-B
RAS-M10PKVPG-TR
RAS-M13PKVPG-E
RAS-M13PKVPG-TR
RAS-M16PKVPG-E
RAS-M16PKVPG-TR
Wall-mounted units series HaoriRAS-B10N4KVRG-EModbus: TB-1-MB-B
RAS-B10N4KVRG-TR
RAS-B13N4KVRG-E
RAS-B13N4KVRG-TR
RAS-B16N4KVRG-E
RAS-B16N4KVRG-TR
Wall-mounted units series Shorai EdgeRAS-M05J2KVSG-EModbus: TB-1-MB-B
RAS-M05J2KVSG-TR
RAS-B07J2KVSG-E
RAS-M07J2KVSG-TR
RAS-B10J2KVSG-E
RAS-M10J2KVSG-TR
RAS-B13J2KVSG-E
RAS-M13J2KVSG-TR
RAS-B16J2KVSG-E
RAS-M16J2KVSG-TR
RAS-B16J2KVSG-E
RAS-M16J2KVSG-TR
RAS-B16J2KVSG-E
RAS-M16J2KVSG-TR
Wall-mounted units series SeiyaRAS-B05J2KVG-EModbus: TB-1-MB-B
RAS-M05J2KVG-TR
RAS-B07J2KVG-E
RAS-M07J2KVG-TR
RAS-B10J2KVG-E
RAS-M10J2KVG-TR
RAS-B13J2KVG-E
RAS-M13J2KVG-TR
RAS-B16J2KVG-E
RAS-M16J2KVG-TR
Floor-standing units series ConsoleRAS-B10J2FVG-EModbus: TB-1-MB-B
RAS-M10J2FVG-TR
RAS-B13J2FVG-E
RAS-M13J2FVG-TR
RAS-B18J2FVG-E
RAS-M18J2FVG-TR
Compact cassette unitsRAS-M10U2MUVG-ENot supported
RAS-M10U2MUVG-TR
RAS-M13U2MUVG-E
RAS-M13U2MUVG-TR
RAS-M16U2MUVG-E
RAS-M16U2MUVG-TR
Low-static-pressure ducted unitsRAS-M07U2DVG-ENot supported
RAS-M07U2DVG-TR
RAS-M10U2DVG-E
RAS-M10U2DVG-TR
RAS-M13U2DVG-E
RAS-M13U2DVG-TR
RAS-M16U2DVG-E
RAS-M16U2DVG-TR
RAS-M22U2DVG-E
RAS-M22U2DVG-TR
RAS-M24U2DVG-E
RAS-M24U2DVG-TR
Light-commercial outdoor units R32
Outdoor units series Super Digital Inverter| RAV-GP561ATP-ENot supported
| RAV-GP561ATP-TR
| RAV-GP801AT-E
| RAV-GP801AT-TR
| RAV-GP1101AT-E
| RAV-GP1101AT-TR
| RAV-GP1401AT-E
| RAV-GP1401AT-TR
| RAV-GP1101AT8-E
| RAV-GP1101AT8-TR
| RAV-GP1401AT8-E
| RAV-GP1401AT8-TR
| RAV-GP1601AT8-E
| RAV-GP1601AT8-TR
Outdoor units series Digital Inverter| RAV-GM301ATP-ENot supported
| RAV-GM301ATP-TR
| RAV-GM401ATP-E
| RAV-GM401ATP-TR
| RAV-GM561ATP-E
| RAV-GM561ATP-TR
| RAV-GM801ATP-E
| RAV-GM801ATP-TR
| RAV-GM901ATP-E
| RAV-GM901ATP-TR
| RAV-GM1101ATP-E
| RAV-GM1101ATP-TR
| RAV-GM1401ATP-E
| RAV-GM1401ATP-TR
| RAV-GM1601ATP-E
| RAV-GM1601ATP-TR
| RAV-GM1101AT8P-E
| RAV-GM1101AT8P-TR
| RAV-GM1401AT8P-E
| RAV-GM1401AT8P-TR
| RAV-GM1601AT8P-E
| RAV-GM1601AT8P-TR
Outdoor units series Big Digital Inverter| RAV-GM2241AT8-ENot supported
| RAV-GM2241AT8-TR
| RAV-GM2801AT8-E
| RAV-GM2801AT8-TR
Light-commercial split systems R32
Four-way cassette units SmartRAV-GM561UT-ENot supported
RAV-GM561UT-TR
RAV-GM801UT-E
RAV-GM801UT-TR
RAV-GM1101UT-E
RAV-GM1101UT-TR
RAV-GM1401UT-E
RAV-GM1401UT-TR
Four-way cassette unitsRAV-RM561UTP-ENot supported
RAV-RM561UTP-TR
RAV-RM801UTP-E
RAV-RM801UTP-TR
RAV-GM901UTP-E
RAV-GM901UTP-TR
RAV-RM1101UTP-E
RAV-RM1101UTP-TR
RAV-RM1401UTP-E
RAV-RM1401UTP-TR
RAV-RM1601UTP-E
RAV-RM1601UTP-TR
Compact four-way cassette unitsRAV- RM301MUT-ENot supported
RAV- RM301MUT-TR
RAV- RM401MUT-E
RAV- RM401MUT-TR
RAV- RM561MUT-E
RAV- RM561MUT-TR
Medium-static-pressure ducted unitsRAV-RM561BTP-ENot supported
RAV-RM561BTP-TR
RAV-RM801BTP-E
RAV-RM801BTP-TR
RAV-GM901BTP-E
RAV-GM901BTP-TR
RAV-RM1101BTP-E
RAV-RM1101BTP-TR
RAV-RM1401BTP-E
RAV-RM1401BTP-TR
RAV-RM1601BTP-E
RAV-RM1601BTP-TR
Slim low-static-pressure ducted unitsRAV- RM301SDT-ENot supported
RAV- RM301SDT-TR
RAV- RM401SDT-E
RAV- RM401SDT-TR
RAV-RM561SDT-E
RAV-RM561SDT-TR
High-static-pressure ducted unitsRAV-RM2241DTP-E1Not supported
RAV-RM2241DTP-TR1
RAV-RM2801DTP-E1
RAV-RM2801DTP-TR1
Ceiling-suspended unitsRAV-RM401CTP-ENot supported
RAV-RM401CTP-TR
RAV-RM561CTP-E
RAV-RM561CTP-TR
RAV-RM801CTP-E
RAV-RM801CTP-TR
RAV-GM901CTP-E
RAV-GM901CTP-TR
RAV-RM1101CTP-E
RAV-RM1101CTP-TR
RAV-RM1401CTP-E
RAV-RM1401CTP-TR
RAV-RM1601CTP-E
RAV-RM1601CTP-TR
Wall-mounted units series High WallRAV-RM301KRTP-ENot supported
RAV-RM301KRTP-TR
RAV-RM401KRTP-E
RAV-RM401KRTP-TR
RAV-RM561KRTP-E
RAV-RM561KRTP-TR
RAV-RM801KRTP-E
RAV-RM801KRTP-TR
RAV-GM901KRTP-E
RAV-GM901KRTP-TR
RAV-GM1101KRTP-E
RAV-GM1101KRTP-TR
Column-type unitsRAV-RM561FT-ENNot supported
RAV-RM561FT-ES
RAV-RM561FT-TR
RAV-RM801FT-EN
RAV-RM801FT-ES
RAV-RM801FT-TR
RAV-RM1101FT-EN
RAV-RM1101FT-ES
RAV-RM1101FT-TR
RAV-RM1401FT-EN
RAV-RM1401FT-ES
RAV-RM1401FT-TR
RAV-RM1601FT-EN
RAV-RM1601FT-ES
RAV-RM1601FT-TR
Light-commercial outdoor units R410
Outdoor units series Super Digital Inverter| RAV-SP404ATP-ENot supported
| RAV-SP404ATP-TR
| RAV-SP454ATP-E
| RAV-SP454ATP-TR
| RAV-SP564ATP-E
| RAV-SP564ATP-TR
| RAV-SP804ATP-E
| RAV-SP804ATP-TR
| RAV-SP1104AT-E1
| RAV-SP1104AT-TR1
| RAV-SP1404AT-E1
| RAV-SP1404AT-TR1
| RAV-SP1104AT8-E1
| RAV-SP1104AT8-TR1
| RAV-SP1404AT8-E1
| RAV-SP1404AT8-TR1
| RAV-SP1604AT8-E1
| RAV-SP1604AT8-TR1
Outdoor units series Digital Inverter| RAV-SM304ATP-ENot supported
| RAV-SM304ATP-TR
| RAV-SM404ATP-E
| RAV-SM404ATP-TR
| RAV-SM564ATP-E
| RAV-SM564ATP-TR
| RAV-SM804ATP-E
| RAV-SM804ATP-TR
| RAV-SM1104ATP-E
| RAV-SM1104ATP-TR
| RAV-SM1404ATP-E
| RAV-SM1404ATP-TR
| RAV-SM1603AT-E1
| RAV-SM1104AT8P-E
| RAV-SM1104AT8P-TR
| RAV-SM1404AT8P-E
| RAV-SM1404AT8P-TR
Outdoor units series Big Digital Inverter| RAV-SM2246AT8-ENot supported
| RAV-SM2246AT8-TR
| RAV-SM2806AT8-E
| RAV-SM2806AT8-TR
Light-commercial split systems R410
Four-way cassette unitsRAV-RM561UTP-ENot supported
RAV-RM561UTP-TR
RAV-RM801UTP-E
RAV-RM801UTP-TR
RAV-RM1101UTP-E
RAV-RM1101UTP-TR
RAV-RM1401UTP-E
RAV-RM1401UTP-TR
RAV-RM1601UTP-E
RAV-RM1601UTP-TR
Compact four-way cassette unitsRAV- RM301MUT-ENot supported
RAV- RM301MUT-TR
RAV- RM401MUT-E
RAV- RM401MUT-TR
RAV- RM561MUT-E
RAV- RM561MUT-TR
Medium-static-pressure ducted unitsRAV-SM406BTP-ENot supported
RAV-SM406BTP-TR
RAV-SM456BTP-E
RAV-SM456BTP-TR
RAV-RM561BTP-E
RAV-RM561BTP-TR
RAV-RM801BTP-E
RAV-RM801BTP-TR
RAV-RM1101BTP-E
RAV-RM1101BTP-TR
RAV-RM1401BTP-E
RAV-RM1401BTP-TR
RAV-RM1601BTP-E
RAV-RM1601BTP-TR
Slim low-static-pressure ducted unitsRAV-RM301SDT-ENot supported
RAV-RM301SDT-TR
RAV-RM401SDT-E
RAV-RM401SDT-TR
RAV-SM454SDT-E
RAV-SM454SDT-TR
RAV-RM561SDT-E
RAV-RM561SDT-TR
Ceiling-suspended unitsRAV-RM401CTP-ENot supported
RAV-RM401CTP-TR
RAV-RM561CTP-E
RAV-RM561CTP-TR
RAV-RM801CTP-E
RAV-RM801CTP-TR
RAV-RM1101CTP-E
RAV-RM1101CTP-TR
RAV-RM1401CTP-E
RAV-RM1401CTP-TR
RAV-RM1601CTP-E
RAV-RM1601CTP-TR
Wall-mounted units series High WallRAV-RM301KRTP-ENot supported
RAV-RM301KRTP-TR
RAV-RM401KRTP-E
RAV-RM401KRTP-TR
RAV-RM561KRTP-E
RAV-RM561KRTP-TR
RAV-RM801KRTP-E
RAV-RM801KRTP-TR
Column-type unitsRAV-RM561FT-ENNot supported
RAV-RM561FT-ES
RAV-RM561FT-TR
RAV-RM801FT-EN
RAV-RM801FT-ES
RAV-RM801FT-TR
RAV-RM1101FT-EN
RAV-RM1101FT-ES
RAV-RM1101FT-TR
RAV-RM1401FT-EN
RAV-RM1401FT-ES
RAV-RM1401FT-TR
RAV-RM1601FT-EN
RAV-RM1601FT-ES
RAV-RM1601FT-TR
High-static-pressure ducted unitsRAV-RM2241DTP-E1Not supported
RAV-RM2241DTP-TR1
RAV-RM2801DTP-E1
RAV-RM2801DTP-TR1
VRF outdoor units
Outdoor units series Side Blow| MCY-MHP0406HT-ENot supported
| MCY-MHP0506HT-E1
| MCY-MHP0604HT-E
Outdoor units series MiNi SMMS-e 1Ph| MCY-MHP0404HS-ENot supported
| MCY-MHP0504HS-E
| MCY-MHP0604HS-E
Outdoor units series MiNi SMMS-e 3Ph| MCY-MHP0404HS8-ENot supported
| MCY-MHP0504HS8-E
| MCY-MHP0604HS8-E
| MCY-MHP0806HS8-E
| MCY-MHP1006HS8-E
Outdoor units series SMMS-e Stand Alone| MMY-SAP0806HT8P-E Not supported
| MMY-SAP1006HT8P-E
| MMY-SAP1206HT8P-E
Outdoor units series SMMS-u| MMY-MUP0801HT8P-ENot supported
| MMY-MUP1001HT8P-E
| MMY-MUP1201HT8P-E
| MMY-MUP1401HT8P-E
| MMY-MUP1601HT8P-E
| MMY-MUP1801HT8P-E
| MMY-MUP2001HT8P-E
| MMY-MUP2201HT8P-E
| MMY-MUP2401HT8P-E
Outdoor units series SMMS-e| MMY-MAP0806T8P-ENot supported
| MMY-MAP0806T8P-TR
| MMY-MAP0806HT8P-E
| MMY-MAP0806HT8P-TR
| MMY-MAP1006T8P-E
| MMY-MAP1006T8P-TR
| MMY-MAP1006HT8P-E
| MMY-MAP1006HT8P-TR
| MMY-MAP1206T8P-E
| MMY-MAP1206T8P-TR
| MMY-MAP1206HT8P-E
| MMY-MAP1206HT8P-TR
| MMY-MAP1406T8P-E
| MMY-MAP1406T8P-TR
| MMY-MAP1406HT8P-E
| MMY-MAP1406HT8P-TR
| MMY-MAP1606T8P-E
| MMY-MAP1606T8P-TR
| MMY-MAP1606HT8P-E
| MMY-MAP1606HT8P-TR
| MMY-MAP1806T8P-E
| MMY-MAP1806T8P-TR
| MMY-MAP1806HT8P-E
| MMY-MAP1806HT8P-TR
| MMY-MAP2006T8P-E
| MMY-MAP2006T8P-TR
| MMY-MAP2006HT8P-E
| MMY-MAP2006HT8P-TR
| MMY-MAP2206T8P-E
| MMY-MAP2206T8P-TR
| MMY-MAP2206HT8P-E
| MMY-MAP2206HT8P-TH
Outdoor units series SHRM-e| MMY-MAP0806FT8P-ENot supported
| MMY-MAP0806FT8P-TR
| MMY-MAP1006FT8P-E
| MMY-MAP1006FT8P-TR
| MMY-MAP1206FT8P-E
| MMY-MAP1206FT8P-TR
| MMY-MAP1406FT8P-E
| MMY-MAP1406FT8P-TR
| MMY-MAP1606FT8P-E
| MMY-MAP1606FT8P-TR
| MMY-MAP1806FT8P-E
| MMY-MAP1806FT8P-TR
| MMY-MAP2006FT8P-E
| MMY-MAP2006FT8P-TR
| MMY-MAP0806FT8P-UK
| MMY-MAP1006FT8P-UK
| MMY-MAP1206FT8P-UK
| MMY-MAP1406FT8P-UK
| MMY-MAP1606FT8P-UK
| MMY-MAP1806FT8P-UK
| MMY-MAP2006FT8P-UK
VRF systems
Compact four-way cassette unitsMMU-UP0051MH-ENot supported
MMU-UP0051MH-TR
MMU-UP0071MH-E
MMU-UP0071MH-TR
MMU-UP0091MH-E
MMU-UP0091MH-TR
MMU-UP0121MH-E
MMU-UP0121MH-TR
MMU-UP0151MH-E
MMU-UP0151MH-TR
MMU-UP0181MH-E
MMU-UP0181MH-TR
Four-way cassette unitsMMU-UP0091HP-ENot supported
MMU-UP0091HP-TR
MMU-UP0121HP-E
MMU-UP0121HP-TR
MMU-UP0151HP-E
MMU-UP0151HP-TR
MMU-UP0181HP-E
MMU-UP0181HP-TR
MMU-UP0241HP-E
MMU-UP0241HP-TR
MMU-UP0271HP-E
MMU-UP0271HP-TR
MMU-UP0301HP-E
MMU-UP0301HP-TR
MMU-UP0361HP-E
MMU-UP0361HP-TR
MMU-UP0481HP-E
MMU-UP0481HP-TR
MMU-UP0561HP-E
MMU-UP0561HP-TR
Two-way cassette unitsMMU-UP0071WH-ENot supported
MMU-UP0071WH-TR
MMU-UP0091WH-E
MMU-UP0091WH-TR
MMU-UP0121WH-E
MMU-UP0121WH-TR
MMU-UP0151WH-E
MMU-UP0151WH-TR
MMU-UP0181WH-E
MMU-UP0181WH-TR
MMU-UP0241WH-E
MMU-UP0241WH-TR
MMU-UP0271WH-E
MMU-UP0271WH-TR
MMU-UP0301WH-E
MMU-UP0301WH-TR
MMU-UP0361WH-E
MMU-UP0361WH-TR
MMU-UP0481WH-E
MMU-UP0481WH-TR
MMU-UP0561WH-E
MMU-UP0561WH-TR
One-way cassette unitsMMU-UP0031YHP-ENot supported
MMU-UP0031YHP-TR
MMU-UP0051YHP-E
MMU-UP0051YHP-TR
MMU-UP0071YHP-E
MMU-UP0071YHP-TR
MMU-UP0091YHP-E
MMU-UP0091YHP-TR
MMU-UP0121YHP-E
MMU-UP0121YHP-TR
MMU-UP0151SH-E
MMU-UP0151SH-TR
MMU-UP0181SH-E
MMU-UP0181SH-TR
MMU-UP0241SH-E
MMU-UP0241SH-TR
Medium-static-pressure ducted unitsMMD-UP0051BHP-ENot supported
MMD-UP0051BHP-TR
MMD-UP0071BHP-E
MMD-UP0071BHP-TR
MMD-UP0091BHP-E
MMD-UP0091BHP-TR
MMD-UP0121BHP-E
MMD-UP0121BHP-TR
MMD-UP0151BHP-E
MMD-UP0151BHP-TR
MMD-UP0181BHP-E
MMD-UP0181BHP-TR
MMD-UP0241BHP-E
MMD-UP0241BHP-TR
MMD-UP0271BHP-E
MMD-UP0271BHP-TR
MMD-UP0301BHP-E
MMD-UP0301BHP-TR
MMD-UP0361BHP-E
MMD-UP0361BHP-TR
MMD-UP0481BHP-E
MMD-UP0481BHP-TR
MMD-UP0561BHP-E
MMD-UP0561BHP-TR
Slim low-static-pressure ducted unitsMMD-UP0031SPHY-ENot supported
MMD-UP0051SPHY-E
MMD-UP0071SPHY-E
MMD-UP0091SPHY-E
MMD-UP0121SPHY-E
MMD-UP0151SPHY-E
MMD-UP0181SPHY-E
MMD-UP0241SPHY-E
MMD-UP0271SPHY-E
High-static-pressure ducted unitsMMD-UP0181HP-ENot supported
MMD-UP0181HP-TR
MMD-UP0241HP-E
MMD-UP0241HP-TR
MMD-UP0271HP-E
MMD-UP0271HP-TR
MMD-UP0361HP-E
MMD-UP0361HP-TR
MMD-UP0481HP-E
MMD-UP0481HP-TR
MMD-UP0561HP-E
MMD-UP0561HP-TR
MMD-UP0726HP-E
MMD-UP0726HP-TR
MMD-UP0966HP-E
MMD-UP0966HP-TR
Ceiling-mounted unitsMMC-UP0151HP-ENot supported
MMC-UP0181HP-E
MMC-UP0241HP-E
MMC-UP0271HP-E
MMC-UP0361HP-E
MMC-UP0481HP-E
MMC-UP0561HP-E
Floor-standing units Bi-FlowMML-UP0071NHP-ENot supported
MML-UP0071NHP-TR
MML-UP0091NHP-E
MML-UP0091NHP-TR
MML-UP0121NHP-E
MML-UP0121NHP-TR
MML-UP0151NHP-E
MML-UP0151NHP-TR
MML-UP0181NHP-E
MML-UP0181NHP-TR
Console unitsMML-UP0071H-ENot supported
MML-UP0071H-TR
MML-UP0091H-E
MML-UP0091H-TR
MML-UP0121H-E
MML-UP0121H-TR
MML-UP0151H-E
MML-UP0151H-TR
MML-UP0181H-E
MML-UP0181H-TR
MML-UP0241H-E
MML-UP0241H-TR
Concealed console unitsMML-UP0071BH-ENot supported
MML-UP0071BH-TR
MML-UP0091BH-E
MML-UP0091BH-TR
MML-UP0121BH-E
MML-UP0121BH-TR
MML-UP0151BH-E
MML-UP0151BH-TR
MML-UP0181BH-E
MML-UP0181BH-TR
MML-UP0241BH-E
MML-UP0241BH-TR
Column-type unitsMMF-UP0151H-ENot supported
MMF-UP0151H-TR
MMF-UP0181H-E
MMF-UP0181H-TR
MMF-UP0241H-E
MMF-UP0241H-TR
MMF-UP0271H-E
MMF-UP0271H-TR
MMF-UP0361H-E
MMF-UP0361H-TR
MMF-UP0481H-E
MMF-UP0481H-TR
MMF-UP0561H-E
MMF-UP0561H-TR
Wall-mounted units series High WallMMK-UP0031HP-ENot supported
MMK-UP0031HP-TR
MMK-UP0031HPL-E
MMK-UP0031HPL-TR
MMK-UP0051HP-E
MMK-UP0051HP-TR
MMK-UP0051HPL-E
MMK-UP0051HPL-TR
MMK-UP0071HP-E
MMK-UP0071HP-TR
MMK-UP0071HPL-E
MMK-UP0071HPL-TR
MMK-UP0091HP-E
MMK-UP0091HP-TR
MMK-UP0091HPL-E
MMK-UP0091HPL-TR
MMK-UP0121HP-E
MMK-UP0121HP-TR
MMK-UP0121HPL-E
MMK-UP0121HPL-TR
MMK-UP0151HP-E
MMK-UP0151HP-TR
MMK-UP0151HPL-E
MMK-UP0151HPL-TR
MMK-UP0181HP-E
MMK-UP0181HP-TR
MMK-UP0181HPL-E
MMK-UP0181HPL-TR
MMK-UP0241HP-E
MMK-UP0241HP-TR
MMK-UP0241HPL-E
MMK-UP0241HPL-TR
MMK-UP0271HP-E
MMK-UP0271HP-TR
MMK-UP0271HPL-E
MMK-UP0271HPL-TR
MMK-UP0301HP-E
MMK-UP0301HP-TR
MMK-UP0301HPL-E
MMK-UP0301HPL-TR
MMK-UP0361HP-E
MMK-UP0361HP-TR
MMK-UP0361HPL-E
MMK-UP0361HPL-TR
Heat-recovery unitsVN-M150HENot supported
VN-M250HE
VN-M350HE
VN-M500HE
VN-M650HE
VN-M800HE
VN-M1000HE1
VN-M1500HE1
VN-M2000HE1
Heat-recovery units with direct coolingMMD-VN502HEX1ENot supported
MMD-VN502HEX1TR
MMD-VN802HEX1E
MMD-VN802HEX1TR
MMD-VN1002HEX1E
MMD-VN1002HEX1TR
MMD- VNK502HEX1E
MMD- VNK502HEX1TR
MMD-VNK802HEX1E
MMD-VNK802HEX1TR
MMD-VNK1002HEX1E
MMD-VNK1002HEX1TR
High-static-pressure ducted units with 100% fresh-air supplyMMD-UP0481HFP-ENot supported
MMD-UP0481HFP-TR
MDD-UP0721HFP-E
MDD-UP0721HFP-TR
MDD-UP0961HFP-E
MDD-UP0961HFP-TR
MDD-UP1121HFP-E
MDD-UP1121HFP-TR
MDD-UP1281HFP-E
MDD-UP1281HFP-TR

2020

2.6 Air conditioners: 2020

Copied.


Air-conditioning seriesModelGateway
Inverter split systems
Wall-mounted units series PKVPG-NDRAS-25PKVPG-ND | RAS-25PAVPG-NDModbus: TB-1-MB-B
RAS-35PKVPG-ND | RAS-35PAVPG-ND
Wall-mounted units series PKVSGRAS-10PKVSG-E | RAS-10PAVSG-EModbus: TB-1-MB-B
RAS-13PKVSG-E | RAS-13PAVSG-E
RAS-16PKVSG-E | RAS-16PAVSG-E
RAS-18PKVSG-E | RAS-18PAVSG-E
RAS-22PKVSG-E | RAS-22PAVSG-E
RAS-24PKVSG-E | RAS-24PAVSG-E
Wall-mounted units series J2KVGRAS-05J2KVG-EE | RAS-05J2AVG-EEModbus: TB-1-MB-B
RAS-07J2KVG-EE | RAS-07J2AVG-EE
RAS-10J2KVG-EE | RAS-10J2AVG-EE
RAS-13J2KVG-EE | RAS-13J2AVG-EE
RAS-16J2KVG-EE | RAS-16J2AVG-EE
RAS-18J2KVG-EE | RAS-18J2AVG-EE
RAS-24J2KVG-EE | RAS-24J2AVG-EE
Wall-mounted units series TKVGRAS-05TKVG-EE | RAS-05TAVG-EEModbus: TB-1-MB-B
RAS-07TKVG-EE | RAS-07TAVG-EE
RAS-10TKVG-EE | RAS-10TAVG-EE
RAS-13TKVG-EE | RAS-13TAVG-EE
RAS-16TKVG-EE | RAS-16TAVG-EE
RAS-18TKVG-EE | RAS-18TAVG-EE
RAS-24TKVG-EE | RAS-24TAVG-EE
Wall-mounted units series U2KVRAS-05U2KV-EE | RAS-05U2AV-EENot supported
RAS-07U2KV-EE | RAS-07U2AV-EE
RAS-10U2KV-EE | RAS-10U2AV-EE
RAS-13U2KV-EE | RAS-13U2AV-EE
RAS-16U2KV-EE | RAS-16U2AV-EE
Wall-mounted units series S3KVRAS-10S3KV-E | RAS-10S3AV-EModbus: TB-1-MB-B
RAS-13S3KV-E | RAS-13S3AV-E
RAS-18S3KV-E | RAS-18S3AV-E
RAS-22S3KV-E | RAS-22S3AV-E
Wall-mounted units series BKVRAS-05BKV-E | RAS-05BAV-EModbus: TB-1-MB-B
RAS-07BKV-E | RAS-07BAV-E
RAS-10BKV-E | RAS-10BAV-E
RAS-13BKV-E | RAS-13BAV-E
RAS-16BKV-E | RAS-16BAV-E
Floor-standing units series UFVRAS-B10UFV-E | RAS-10N3AVR-EModbus: TB-1-MB-B
RAS-B13UFV-E | RAS-13N3AVR-E
RAS-B18UFV-E | RAS-18N3AV-E
On-Off split systems
Wall-mounted units series S3KSRAS-07S3KS-EE | RAS-07S3AS-EEModbus: TB-1-MB-B
RAS-10S3KS-EE | RAS-10S3AS-EE
RAS-13S3KS-EE | RAS-13S3AS-EE
RAS-18S3KS-EE | RAS-18S3AS-EE
RAS-24S3KS-EE | RAS-24S3AS-EE
Wall-mounted units series S3KHSRAS-07S3KHS-EE | RAS-07S3AHS-EENot supported
RAS-10S3KHS-EE | RAS-10S3AHS-EE
RAS-13S3KHS-EE | RAS-13S3AHS-EE
RAS-18S3KHS-EE | RAS-18S3AHS-EE
RAS-24S3KHS-EE | RAS-24S3AHS-EE
Wall-mounted units series U2KHSRAS-07U2KHS-EE | RAS-07U2AHS-EENot supported
RAS-09U2KHS-EE | RAS-09U2AHS-EE
RAS-12U2KHS-EE | RAS-12U2AHS-EE
RAS-18U2KHS-EE | RAS-18U2AHS-EE
RAS-24U2KHS-EE | RAS-24U2AHS-EE
Wall-mounted units series U2KH2SRAS-07U2KH2S-EE | RAS-07U2AH2S-EENot supported
RAS-09U2KH2S-EE | RAS-09U2AH2S-EE
RAS-12U2KH2S-EE | RAS-12U2AH2S-EE
RAS-18U2KH2S-EE | RAS-18U2AH2S-EE
RAS-24U2KH2S-EE | RAS-24U2AH2S-EE
Wall-mounted units series U2KH3SRAS-07U2KH3S-EE | RAS-07U2AH3S-EENot supported
RAS-09U2KH3S-EE | RAS-09U2AH3S-EE
RAS-12U2KH3S-EE | RAS-12U2AH3S-EE
RAS-18U2KH3S-EE | RAS-18U2AH3S-EE
RAS-24U2KH3S-EE | RAS-24U2AH3S-EE
Multi-split outdoor units
Outdoor units| RAS-2M10U2AVG-ENot supported
| RAS-2M14U2AVG-E
| RAS-2M18U2AVG-E
| RAS-3M18U2AVG-E
| RAS-3M26U2AVG-E
| RAS-4M27U2AVG-E
| RAS-5M34U2AVG-E
Multi-split systems
Wall-mounted units series SeiyaRAS-B05J2KVG-EModbus: TB-1-MB-B
RAS-B07J2KVG-E
RAS-B10J2KVG-E
RAS-B13J2KVG-E
RAS-B16J2KVG-E
Wall-mounted units series N3KVRAS-M07N3KV2-E1Modbus: TB-1-MB-B
RAS-B10N3KV2-E1
RAS-B13N3KV2-E1
RAS-B16N3KV2-E1
RAS-B22N3KV2-E1
RAS-M24N3KV2-E1
Floor-standing unitsRAS-B10UFV-E1Modbus: TB-1-MB-B
RAS-B13UFV-E1
RAS-B18UFV-E1
Cassette unitsRAS-M10SMUV-ENot supported
RAS-M13SMUV-E
RAS-M16SMUV-E
Ducted unitsRAS-M07G3DV-ENot supported
RAS-M07G3DV-ND
RAS-M10G3DV-E
RAS-M10G3DV-ND
RAS-M13G3DV-E
RAS-M13G3DV-ND
RAS-M16G3DV-E
RAS-M16G3DV-ND
Air-to-water heat pumps Estia
Hydro modulesHWS-804XWHM3-ENot supported
HWS-804XWHT6-E
HWS-804XWHT9-E
HWS-1404XWHM3-E
HWS-1404XWHT6-E
HWS-1404XWHT9-E
Light-commercial outdoor units
Outdoor units series Super Digital Inverter GP_AT(8)| RAV-GP561ATP-ENot supported
| RAV-PG901AT-E
| RAV-GP1101AT-E
| RAV-GP1401AT-E
| RAV-GP1101AT8-E
| RAV-GP1401AT8-E
| RAV-GP1601AT8-E
Outdoor units series Digital Inverter GM_ATP8| RAV-GM301ATP-ENot supported
| RAV-GM401ATP-E
| RAV-GM561ATP-E
| RAV-GM801ATP-E
| RAV-GM901ATP-E
| RAV-GM1101ATP-E
| RAV-GM1401ATP-E
| RAV-GM1601ATP-E
| RAV-GM-1101AT8P-E
| RAV-GM1401AT8P-E
| RAV-GM1601AT8P-E
Outdoor units series Big Digital Inverter GM_AT8| RAV-GM2241AT8-ENot supported
| RAV-GM2801AT8-E
Light-commercial split systems
Intelligent four-way cassette units series GM_UTRAV-RM561UT-E | RAV-GP561ATP-ENot supported
RAV-RM801UT-E | RAV-GP801AT-E
RAV-RM1101UT-E | RAV-GP1101AT-E
RAV-RM1401UT-E | RAV-GP1401AT-E
Four-way cassette units series RM_UTPRAV-RM561UTP-E | RAVGP561ATP-ENot supported
RAV-RM801UTP-E | RAV-GP801AT-E
RAV-RM1101UTP-E | RAV-GP1101AT-E
RAV-RM1401UTP-E | RAV-GP1401AT-E
RAV-RM1101UTP-E | RAV-GP1101AT8-E
RAV-RM1401UTP-E | RAV-GP1401AT8-E
RAV-RM1601UTP-E | RAV-GP1601AT8-E
RAV-RM561UPT-E | RAV-GM561ATP-E
RAV-RM801UTP-E | RAV-GM801ATP-E
RAV-RM901UTP-E | RAV-GM901ATP-E
RAV-RM1101UTP-E | RAV-GM1101AT(8)P-E
RAV-RM1401UPT-E | RAV-GM1401AT(8)P-E
RAV-RM1601UTP-E | RAV-GM1601AT(8)P-E
Compact four-way cassette units series RM_MUTRAV-RM561MUT-E | RAV-GP561ATP-ENot supported
RAV-RM301MUT-E | RAV-GM301ATP-E
RAV-RM401MUT-E | RAV-GM401ATP-E
RAV-RM561MUT-E | RAV-GM561ATP-E
Standard ducted units series RM_BTPRAV-RM561BTP-E | RAV-GP561ATP-ENot supported
RAV-RM801BTP-E | RAV-GP801AT-E
RAV-RM1101BTP-E | RAV-GP1101AT-E
RAV-RM1401BTP-E | RAV-GP1401AT-E
RAV-RM1101BTP-E | RAV-GP1101AT8-E
RAV-RM1401BTP-E | RAV-GP1401AT8-E
RAV-RM1601BTP-E | RAV-GP1601AT8-E
RAV-RM561BTP-E | RAV-GM561ATP-E
RAV-RM801BTP-E | RAV-GM801ATP-E
RAV-RM901BTP-E | RAV-GM901ATP-E
RAV-RM1101BTP-E | RAV-GM1101AT(8)P-E
RAV-RM1401BTP-E | RAV-GM1401AT(8)P-E
RAV-RM1601BTP-E | RAV-GM1601AT(8)P-E
Compact ducted units series RM_SDTRAV-RM561SDT-E | RAV-GP561ATP-ENot supported
RAV-RM301SDT-E | RAV-GM301ATP-E
RAV-RM401SDT-E | RAV-GM401ATP-E
RAV-RM561SDT-E | RAV-GM561ATP-E
High-static-pressure ducted units series RM_DTPRAV-RM2241DTP-E | RAV-GM2241AT8-ENot supported
RAV-RM2801DTP-E | RAV-GM2801AT8-E
Ceiling-mounted units series RM_CTPRAV-RM561CTP-E | RAV-GP561ATP-ENot supported
RAV-RM801CTP-E | RAV-GP801AT-E
RAV-RM1101CTP-E | RAV-GP1101AT-E
RAV-RM1401CTP-E | RAV-GP1401AT-E
RAV-RM1101CTP-E | RAV-GP1101AT8-E
RAV-RM1401CTP-E | RAV-GP1401AT8-E
RAV-RM1601CTP-E | RAV-GP1601AT8-E
RAV-RM401CTP-E | RAV-GM401ATP-E
RAV-RM561CTP-E | RAV-GM561ATP-E
RAV-RM801CTP-E | RAV-GM801ATP-E
RAV-RM901CTP-E | RAV-GM901ATP-E
RAV-RM1191CTP-E | RAV-GM1101AT(8)P-E
RAV-RM1401CTP-E | RAV-GM1401AT(8)P-E
RAV-RM1601CTP-E | RAV-GM1601AT(8)P-E
Wall-mounted units series RM_KRTPRAV-RM561KRTP-E | RAV-GP561ATP-ENot supported
RAV-RM801KRTP-E | RAV-GP801ATP-E
RAV-RM1101KRTP-E | RAV-GP1101ATP-E
RAV-RM1101KRTP-E | RAV-GP1101AT8-E
RAV-RM301KRTP-E | RAV-GM301ATP-E
RAV-RM401KRTP-E | RAV-GM401ATP-E
RAV-RM561KRTP-E | RAV-GM561ATP-E
RAV-RM801KRTP-E | RAV-GM801ATP-E
RAV-RM901KRTP-E | RAV-GM901ATP-E
RAV-RM1101KRTP-E | RAV-GM1101AT(8)P-E
Floor-standing units series RM_FTRAV-RM561FT-EN/ES | RAV-GP561ATP-ENot supported
RAV-RM801FT-EN/ES | RAV-GP801AT-E
RAV-RM1101FT-EN/ES | RAV-GP1101AT-E
RAV-RM1401FT-EN/ES | RAV-GP1401AT-E
RAV-RM1101FT-EN/ES | RAV-GP1101AT8-E
RAV-RM1401FT-EN/ES | RAV-GP1401AT8-E
RAV-RM1601FT-EN/ES | RAV-GP1601AT8-E
RAV-RM561FT-EN/ES | RAV-GM561ATP-E
RAV-RM801FT-EN/ES | RAV-GM801ATP-E
RAV-RM1101FT-EN/ES | RAV-GM1101AT(8)P-E
RAV-RM1401FT-EN/ES | RAV-GM1401AT(8)P-E
VRF systems
Four-way cassette unitsMMU-AP0094HP1-ENot supported
MMU-AP0124HP1-E
MMU-AP0154HP1-E
MMU-AP0184HP1-E
MMU-AP0244HP1-E
MMU-AP0274HP1-E
MMU-AP0304HP1-E
MMU-AP0364HP1-E
MMU-AP0484HP1-E
MMU-AP0564HP1-E
Compact four-way cassette unitsMMU-AP0056MH-ENot supported
MMU-AP0074MH-E
MMU-AP0094MH-E
MMU-AP0124MH-E
MMU-AP0154MH-E
MMU-AP0184MH-E
Two-way cassette unitsMMU-AP0072WH1Not supported
MMU-AP0092WH1
MMU-AP0122WH1
MMU-AP0152WH1
MMU-AP0182WH1
MMU-AP0242WH1
MMU-AP0272WH1
MMU-AP0302WH1
MMU-AP0362WH1
MMU-AP0482WH1
MMU-AP0562WH1
One-way cassette unitsMMU-AP0074YH1-ENot supported
MMU-AP0094YH1-E
MMU-AP0124YH1-E
MMU-AP0154SH1-E
MMU-AP0184SH1-E
MMU-AP0244SH1-E
Standard ducted unitsMMD-AP0076BHP1-ENot supported
MMD-AP0096BHP1-E
MMD-AP0126BHP1-E
MMD-AP0156BHP1-E
MMD-AP0186BHP1-E
MMD-AP0246BHP1-E
MMD-AP0276BHP1-E
MMD-AP0306BHP1-E
MMD-AP0366BHP1-E
MMD-AP0486BHP1-E
MMD-AP0566BHP1-E
High-static-pressure ducted unitsMMD-AP0186HP1-ENot supported
MMD-AP0246HP1-E
MMD-AP0276HP1-E
MMD-AP0366HP1-E
MMD-AP0486HP1-E
MMD-AP0566HP1-E
MMD-AP0726HP1-E
MMD-AP0966HP1-E
Compact ducted unitsMMD-AP0056SPH1-ENot supported
MMD-AP0074SPH1-E
MMD-AP0094SPH1-E
MMD-AP0124SPH1-E
MMD-AP0154SPH1-E
MMD-AP0184SPH1-E
MMD-AP0244SPH1-E
MMD-AP0274SPH1-E
Ceiling-mounted unitsMMC-AP0158HP-ENot supported
MMC-AP0188HP-E
MMC-AP0248HP-E
MMC-AP0278HP-E
MMC-AP0368HP-E
MMC-AP0488HP-E
Wall-mounted units series 3MMK-AP0073H1Not supported
MMK-AP0093H1
MMK-AP0123H1
MMK-AP0153H1
MMK-AP0183H1
MMK-AP0243H1
Compact wall-mounted units series 4MMK-AP0054MH1-ENot supported
MMK-AP0074MH1-E
MMK-AP0094MH1-E
MMK-AP0124MH1-E
Wall-mounted units series 7MMK-AP0057HP-ENot supported
MMK-AP0077HP-E
MMK-AP0097HP-E
MMK-AP0127HP-E
MMK-AP0157HP-E
MMK-AP0187HP-E
MMK-AP0247HP-E
Two-way console unitsMML-AP0074NH1-ENot supported
MML-AP0094NH1-E
MML-AP0124NH1-E
MML-AP0154NH1-E
MML-AP0184NH1-E
Cabinet floor-standing unitsMML-AP0074H1-ENot supported
MML-AP0094H1-E
MML-AP0124H1-E
MML-AP0154H1-E
MML-AP0184H1-E
MML-AP0244H1-E
Concealed floor-standing unitsMML-AP0074BH1-ENot supported
MML-AP0094BH1-E
MML-AP0124BH1-E
MML-AP0154BH1-E
MML-AP0184BH1-E
MML-AP0244BH1-E
Column-type floor-standing unitsMMF-AP0156H1-ENot supported
MMF-AP0186H1-E
MMF-AP0246H1-E
MMF-AP0276H1-E
MMF-AP0366H1-E
MMF-AP0486H1-E
MMF-AP0566H1-E
Ducted units with 100% fresh-air intakeMMD-AP0481HFENot supported
MMD-AP0721HFE
MMD-AP0961HFE
VRF outdoor units
Outdoor units series SMMS-e| MMY-MAP0806HT8P-ENot supported
| MMY-MAP1006HT8P-E
| MMY-MAP1206HT8P-E
| MMY-MAP1406HT8P-E
| MMY-MAP1606HT8P-E
| MMY-MAP1806HT8P-E
| MMY-MAP2006HT8P-E
| MMY-MAP2206HT8P-E
| MMY-AP2416HT8P-E
| MMY-AP2616HT8P-E
| MMY-AP2816HT8P-E
| MMY-AP3016HT8P-E
| MMY-AP3216HT8P-E
| MMY-AP3416HT8P-E
| MMY-AP3616HT8P-E
| MMY-AP3816HT8P-E
| MMY-AP4016HT8P-E
| MMY-AP4216HT8P-E
| MMY-AP4416HT8P-E
| MMY-AP4616HT8P-E
| MMY-AP4816HT8P-E
| MMY-AP5016HT8P-E
| MMY-AP5216HT8P-E
| MMY-AP5416HT8P-E
| MMY-AP5616HT8P-E
| MMY-AP5816HT8P-E
| MMY-AP6016HT8P-E
Outdoor units series SHRM-e| MMY-MAP0806FT8P-ENot supported
| MMY-MAP1206FT8P-E
| MMY-MAP1606FT8P-E
| MMY-MAP2006FT8P-E
| MMY-AP3206FT8P-E
| MMY-AP4006FT8P-E
| MMY-AP4806FT8P-E
| MMY-AP5406FT8P-E
Outdoor units series MiNi SMMS-e| MCY-MHP0404HS8-ENot supported
| MCY-MHP0504HS8-E
| MCY-MHP0604HS8-E

2019

2.7 Air conditioners: 2019

Copied.


Air-conditioning seriesModelGateway
Inverter split systems
Wall-mounted units series PKVPG-NDRAS-25PKVPG-ND | RAS-25PAVPG-NDModbus: TB-1-MB-B
RAS-35PKVPG-ND | RAS-35PAVPG-ND
Wall-mounted units series N3KVRRAS-10N3KVR-E | RAS-10N3AVR-EModbus: TB-1-MB-B
RAS-13N3KVR-E | RAS-13N3AVR-E
RAS-16N3KVR-E | RAS-16N3AVR-E
RAS-18N3KVR-E | RAS-18N3AV-E
RAS-22N3KVR-E | RAS-22N3AV-E
Wall-mounted units series PKVSGRAS-10PKVSG-E | RAS-10PAVSG-EModbus: TB-1-MB-B
RAS-13PKVSG-E | RAS-13PAVSG-E
RAS-16PKVSG-E | RAS-16PAVSG-E
RAS-18PKVSG-E | RAS-18PAVSG-E
RAS-22PKVSG-E | RAS-22PAVSG-E
RAS-24PKVSG-E | RAS-24PAVSG-E
Wall-mounted units series J2KVGRAS-05J2KVG-EE | RAS-05J2AVG-EEModbus: TB-1-MB-B
RAS-07J2KVG-EE | RAS-07J2AVG-EE
RAS-10J2KVG-EE | RAS-10J2AVG-EE
RAS-13J2KVG-EE | RAS-13J2AVG-EE
RAS-16J2KVG-EE | RAS-16J2AVG-EE
RAS-18J2KVG-EE | RAS-18J2AVG-EE
RAS-24J2KVG-EE | RAS-24J2AVG-EE
Wall-mounted units series TKVGRAS-05TKVG-EE | RAS-05TAVG-EEModbus: TB-1-MB-B
RAS-07TKVG-EE | RAS-07TAVG-EE
RAS-10TKVG-EE | RAS-10TAVG-EE
RAS-13TKVG-EE | RAS-13TAVG-EE
RAS-16TKVG-EE | RAS-16TAVG-EE
RAS-18TKVG-EE | RAS-18TAVG-EE
RAS-24TKVG-EE | RAS-24TAVG-EE
Wall-mounted units series U2KVRAS-05U2KV-EE | RAS-05U2AV-EENot supported
RAS-07U2KV-EE | RAS-07U2AV-EE
RAS-10U2KV-EE | RAS-10U2AV-EE
RAS-13U2KV-EE | RAS-13U2AV-EE
RAS-16U2KV-EE | RAS-16U2AV-EE
Wall-mounted units series BKVGRAS-05BKVG-E | RAS-05BAVG-EModbus: TB-1-MB-B
RAS-07BKVG-E | RAS-07BAVG-E
RAS-10BKVG-E | RAS-10BAVG-E
RAS-13BKVG-E | RAS-13BAVG-E
RAS-16BKVG-E | RAS-16BAVG-E
Wall-mounted units series BKVRAS-05BKV-E | RAS-05BAV-EModbus: TB-1-MB-B
RAS-07BKV-E | RAS-07BAV-E
RAS-10BKV-E | RAS-10BAV-E
RAS-13BKV-E | RAS-13BAV-E
RAS-16BKV-E | RAS-16BAV-E
Wall-mounted units series S3KVRAS-10S3KV-E | RAS-10S3AV-EModbus: TB-1-MB-B
RAS-13S3KV-E | RAS-13S3AV-E
RAS-18S3KV-E | RAS-18S3AV-E
RAS-22S3KV-E | RAS-22S3AV-E
Wall-mounted units series N3KVRAS-10N3KV-E | RAS-10N3AV-EModbus: TB-1-MB-B
RAS-13N3KV-E | RAS-13N3AV-E
RAS-18N3KV-E | RAS-18N3AV-E
RAS-22N3KV-E | RAS-22N3AV-E
Floor-standing units series UFVRAS-B10UFV-E | RAS-10N3AVR-EModbus: TB-1-MB-B
RAS-B13UFV-E | RAS-13N3AVR-E
RAS-B18UFV-E | RAS-18N3AV-E
On-Off split systems
Wall-mounted units series S3KHSRAS-07S3KHS-EE | RAS-07S3AHS-EENot supported
RAS-10S3KHS-EE | RAS-10S3AHS-EE
RAS-13S3KHS-EE | RAS-13S3AHS-EE
RAS-18S3KHS-EE | RAS-18S3AHS-EE
RAS-24S3KHS-EE | RAS-24S3AHS-EE
Wall-mounted units series U2KHSRAS-07U2KHS-EE | RAS-07U2AHS-EENot supported
RAS-09U2KHS-EE | RAS-09U2AHS-EE
RAS-12U2KHS-EE | RAS-12U2AHS-EE
RAS-18U2KHS-EE | RAS-18U2AHS-EE
RAS-24U2KHS-EE | RAS-24U2AHS-EE
Wall-mounted units series U2KH2SRAS-07U2KH2S-EE | RAS-07U2AH2S-EENot supported
RAS-09U2KH2S-EE | RAS-09U2AH2S-EE
RAS-12U2KH2S-EE | RAS-12U2AH2S-EE
RAS-18U2KH2S-EE | RAS-18U2AH2S-EE
RAS-24U2KH2S-EE | RAS-24U2AH2S-EE
Wall-mounted units series U2KH3SRAS-07U2KH3S-EE | RAS-07U2AH3S-EENot supported
RAS-09U2KH3S-EE | RAS-09U2AH3S-EE
RAS-12U2KH3S-EE | RAS-12U2AH3S-EE
RAS-18U2KH3S-EE | RAS-18U2AH3S-EE
RAS-24U2KH3S-EE | RAS-24U2AH3S-EE
Multi-split outdoor units
Outdoor units| RAS-2M14S3AV-ENot supported
| RAS-2M18S3AV-E
| RAS-3M18S3AV-E
| RAS-3M26S3AV-E
| RAS-4M27S3AV-E
| RAS-5M34S3AV-E
Multi-split systems
Wall-mounted units series N3KVPRAS-B10N3KVP-EModbus: TB-1-MB-B
RAS-M10N3KVP-ND
RAS-B13N3KVP-E
RAS-M13N3KVP-ND
RAS-B16N3KVP-E
RAS-M16N3KVP-ND
Wall-mounted units series N3KVRAS-M07N3KV2-E1Modbus: TB-1-MB-B
RAS-B10N3KV2-E1
RAS-B13N3KV2-E1
RAS-B16N3KV2-E1
RAS-B22N3KV2-E1
RAS-M24N3KV2-E1
Floor-standing unitsRAS-B10UFV-E1Modbus: TB-1-MB-B
RAS-B13UFV-E1
RAS-B18UFV-E1
Cassette unitsRAS-M10SMUV-ENot supported
RAS-M13SMUV-E
RAS-M16SMUV-E
Ducted unitsRAS-M07G3DV-ENot supported
RAS-M07G3DV-ND
RAS-M10G3DV-E
RAS-M10G3DV-ND
RAS-M13G3DV-E
RAS-M13G3DV-ND
RAS-M16G3DV-E
RAS-M16G3DV-ND
Air-to-water heat pumps 4 series
Outdoor units| HWS-804H-eNot supported
| HWS-1104H-E
| HWS-1104H8(R)-E
| HWS-1404H-E
| HWS-1404H8(R)-E
| HWS-1604H8(R)-E
Light-commercial outdoor units
Outdoor units Super Digital Inverter| RAV-SP1104AT8-ENot supported
| RAV-SP1404AT8-E
| RAV-SP1604AT8-E
| RAV-SP404ATP-E
| RAV-SP454ATP-E
| RAV-SP564ATP-E
| RAV-SP804ATP-E
| RAV-SP1104AT-E
| RAV-SP1404AT-E
Outdoor units Digital Inverter| RAV-SM564ATP-ENot supported
| RAV-SM804ATP-E
| RAV-SM1104ATP-E
| RAV-SM1404ATP-E
| RAV-SM1603AT-E
| RAV-SM2244AT8-E
| RAV-SM2804AT8-E
Light-commercial split systems
High-static-pressure ducted unitsRAV-SM2244DTP-ENot supported
RAV-SM2804DTP-E
Compact four-way cassette units (600x600)RAV-SM404MUT-ENot supported
RAV-SM454MUT-E
RAV-SM564MUT-E
Four-way cassette unitsRAV-SM564UTP-ENot supported
RAV-SM804UTP-E
RAV-SM1104UTP-E
RAV-SM1404UTP-E
RAV-SM1604UTP-E
Compact ducted unitsRAV-SM404SDT-ENot supported
RAV-SM454SDT-E
RAV-SM564SDT-E
Ceiling-suspended unitsRAV-SM568CTP-ENot supported
RAV-SM808CTP-E
RAV-SM1108CTP-E
RAV-SM1408CTP-E
RAV-SM1608CTP-E
Ducted unitsRAV-SM566BTP-ENot supported
RAV-SM806BTP-E
RAV-SM1106BTP-E
RAV-SM1406BTP-E
RAV-SM1606BTP-E
Wall-mounted unitsRAV-SM566KRT-ENot supported
RAV-SM806KRT-E
VRF systems
Four-way cassette unitsMMU-AP0094HP-ENot supported
MMU-AP0124HP-E
MMU-AP0154HP-E
MMU-AP0184HP-E
MMU-AP0244HP-E
MMU-AP0274HP-E
MMU-AP0304HP-E
MMU-AP0364HP-E
MMU-AP0484HP-E
MMU-AP0564HP-E
Compact four-way cassette unitsMMU-AP0057MH-ENot supported
MMU-AP0077MH-E
MMU-AP0097MH-E
MMU-AP0127MH-E
MMU-AP0157MH-E
MMU-AP0187MH-E
Two-way cassette unitsMMU-AP0072WH1Not supported
MMU-AP0092WH1
MMU-AP0122WH1
MMU-AP0152WH1
MMU-AP0182WH1
MMU-AP0242WH1
MMU-AP0272WH1
MMU-AP0302WH1
MMU-AP0362WH1
MMU-AP0482WH1
MMU-AP0562WH1
One-way cassette unitsMMU-AP0074YH-ENot supported
MMU-AP0094YH-E
MMU-AP0124YH-E
MMU-AP0154SH1-E
MMU-AP0184SH1-E
MMU-AP0244SH1-E
Standard ducted unitsMMD-AP0076BHP1-ENot supported
MMD-AP0096BHP1-E
MMD-AP0126BHP1-E
MMD-AP0156BHP1-E
MMD-AP0186BHP1-E
MMD-AP0246BHP1-E
MMD-AP0276BHP1-E
MMD-AP0306BHP1-E
MMD-AP0366BHP1-E
MMD-AP0486BHP1-E
MMD-AP0566BHP1-E
High-static-pressure ducted unitsMMD-AP0186HP1-ENot supported
MMD-AP0246HP1-E
MMD-AP0276HP1-E
MMD-AP0366HP1-E
MMD-AP0486HP1-E
MMD-AP0566HP1-E
MMD-AP0726HP1-E
MMD-AP0966HP1-E
Compact ducted unitsMMD-AP0056SPH-ENot supported
MMD-AP0074SPH-E
MMD-AP0094SPH-E
MMD-AP0124SPH-E
MMD-AP0154SPH-E
MMD-AP0184SPH-E
MMD-AP0244SPH-E
MMD-AP0274SPH-E
Ceiling-mounted unitsMMC-AP0158HP-ENot supported
MMC-AP0188HP-E
MMC-AP0248HP-E
MMC-AP0278HP-E
MMC-AP0368HP-E
MMC-AP0488HP-E
Wall-mounted units series 3MMK-AP0073HNot supported
MMK-AP0093H
MMK-AP0123H
MMK-AP0153H
MMK-AP0183H
MMK-AP0243H
Compact wall-mounted units series 7MMK-AP0057HP-ENot supported
MMK-AP0077MH-E
MMK-AP0097HP-E
MMK-AP0127HP-E
Two-way console unitsMML-AP0074NH1-ENot supported
MML-AP0094NH1-E
MML-AP0124NH1-E
MML-AP0154NH1-E
MML-AP0184NH1-E
Cabinet floor-standing unitsMML-AP0074H-ENot supported
MML-AP0094H-E
MML-AP0124H-E
MML-AP0154H-E
MML-AP0184H-E
MML-AP0244H-E
Concealed floor-standing unitsMML-AP0074BH-ENot supported
MML-AP0094BH-E
MML-AP0124BH-E
MML-AP0154BH-E
MML-AP0184BH-E
MML-AP0244BH-E
Column-type floor-standing unitsMMF-AP0156H-ENot supported
MMF-AP0186H-E
MMF-AP0246H-E
MMF-AP0276H-E
MMF-AP0366H-E
MMF-AP0486H-E
MMF-AP0566H-E
Ducted units with 100% fresh-air intakeMMD-AP0481HFENot supported
MMD-AP0721HFE
MMD-AP0961HFE
VRF outdoor units
Outdoor units series SMMS-e| MMY-MAP0806HT8P-ENot supported
| MMY-MAP1006HT8P-E
| MMY-MAP1206HT8P-E
| MMY-MAP1406HT8P-E
| MMY-MAP1606HT8P-E
| MMY-MAP1806HT8P-E
| MMY-MAP2006HT8P-E
| MMY-MAP2206HT8P-E
| MMY-AP2416HT8P-E
| MMY-AP2616HT8P-E
| MMY-AP2816HT8P-E
| MMY-AP3016HT8P-E
| MMY-AP3216HT8P-E
| MMY-AP3416HT8P-E
| MMY-AP3616HT8P-E
| MMY-AP3816HT8P-E
| MMY-AP4016HT8P-E
| MMY-AP4216HT8P-E
| MMY-AP4416HT8P-E
| MMY-AP4616HT8P-E
| MMY-AP4816HT8P-E
| MMY-AP5016HT8P-E
| MMY-AP5216HT8P-E
| MMY-AP5416HT8P-E
| MMY-AP5616HT8P-E
| MMY-AP5816HT8P-E
| MMY-AP6016HT8P-E
Outdoor units series SHRM-e| MMY-MAP0806FT8P-ENot supported
| MMY-MAP1206FT8P-E
| MMY-MAP1606FT8P-E
| MMY-MAP2006FT8P-E
| MMY-AP3206FT8P-E
| MMY-AP4006FT8P-E
| MMY-AP4806FT8P-E
| MMY-AP5406FT8P-E
Outdoor units series MiNi SMMS-e| MCY-MHP0404HS8-ENot supported
| MCY-MHP0504HS8-E
| MCY-MHP0604HS8-E

2018

2.8 Air conditioners: 2018

Copied.


Air-conditioning series Model Gateway
Inverter split systems
Wall-mounted units series PKVPG-ND RAS-25PKVPG-ND | RAS-25PAVPG-ND Modbus: TB-1-MB-B
RAS-35PKVPG-ND | RAS-35PAVPG-ND
Wall-mounted units series N3KVR RAS-10N3KVR-E | RAS-10N3AVR-E Modbus: TB-1-MB-B
RAS-13N3KVR-E | RAS-13N3AVR-E
RAS-16N3KVR-E | RAS-16N3AVR-E
RAS-18N3KVR-E | RAS-18N3AV-E
RAS-22N3KVR-E | RAS-22N3AV-E
Wall-mounted units series PKVSG RAS-10PKVSG-E | RAS-10PAVSG-E Modbus: TB-1-MB-B
RAS-13PKVSG-E | RAS-13PAVSG-E
RAS-16PKVSG-E | RAS-16PAVSG-E
RAS-18PKVSG-E | RAS-18PAVSG-E
RAS-22PKVSG-E | RAS-22PAVSG-E
RAS-24PKVSG-E | RAS-24PAVSG-E
Wall-mounted units series U2KV RAS-05U2KV-EE | RAS-05U2AV-EE Not supported
RAS-07U2KV-EE | RAS-07U2AV-EE
RAS-10U2KV-EE | RAS-10U2AV-EE
RAS-13U2KV-EE | RAS-13U2AV-EE
RAS-16U2KV-EE | RAS-16U2AV-EE
Wall-mounted units series BKVG RAS-05BKVG-E | RAS-05BAVG-E Modbus: TB-1-MB-B
RAS-07BKVG-E | RAS-07BAVG-E
RAS-10BKVG-E | RAS-10BAVG-E
RAS-13BKVG-E | RAS-13BAVG-E
RAS-16BKVG-E | RAS-16BAVG-E
Wall-mounted units series BKV RAS-05BKV-E | RAS-05BAV-E Modbus: TB-1-MB-B
RAS-07BKV-E | RAS-07BAV-E
RAS-10BKV-E | RAS-10BAV-E
RAS-13BKV-E | RAS-13BAV-E
RAS-16BKV-E | RAS-16BAV-E
Wall-mounted units series S3KV RAS-10S3KV-E | RAS-10S3AV-E Modbus: TB-1-MB-B
RAS-13S3KV-E | RAS-13S3AV-E
RAS-18S3KV-E | RAS-18S3AV-E
RAS-22S3KV-E | RAS-22S3AV-E
Wall-mounted units series N3KV RAS-10N3KV-E | RAS-10N3AV-E Modbus: TB-1-MB-B
RAS-13N3KV-E | RAS-13N3AV-E
RAS-18N3KV-E | RAS-18N3AV-E
RAS-22N3KV-E | RAS-22N3AV-E
Wall-mounted units series EKV RAS-07EKV-EE | RAS-07EAV-EE Modbus: TB-1-MB-B
RAS-10EKV-EE | RAS-10EAV-EE
RAS-13EKV-EE | RAS-13EAV-EE
RAS-16EKV-EE
| RAS-16EAV-EE
Floor-standing units series UFV RAS-B10UFV-E | RAS-10N3AVR-E Modbus: TB-1-MB-B
RAS-B13UFV-E | RAS-13N3AVR-E
RAS-B18UFV-E | RAS-18N3AV-E
On-Off split systems
Wall-mounted units series S3KHS RAS-07S3KHS-EE | RAS-07S3AHS-EE Not supported
RAS-10S3KHS-EE | RAS-10S3AHS-EE
RAS-13S3KHS-EE | RAS-13S3AHS-EE
RAS-18S3KHS-EE | RAS-18S3AHS-EE
RAS-24S3KHS-EE | RAS-24S3AHS-EE
Wall-mounted units series S3KS RAS-07S3KS-EE | RAS-07S3AS-EE Modbus: TB-1-MB-B
RAS-10S3KS-EE | RAS-10S3AS-EE
RAS-13S3KS-EE | RAS-13S3AS-EE
RAS-18S3KS-EE | RAS-18S3AS-EE
RAS-24S3KS-EE | RAS-24S3AS-EE
Wall-mounted units series U2KHS RAS-07U2KHS-EE | RAS-07U2AHS-EE Not supported
RAS-09U2KHS-EE | RAS-09U2AHS-EE
RAS-12U2KHS-EE | RAS-12U2AHS-EE
RAS-18U2KHS-EE | RAS-18U2AHS-EE
RAS-24U2KHS-EE | RAS-24U2AHS-EE
Wall-mounted units series U2KH2S RAS-07U2KH2S-EE | RAS-07U2AH2S-EE Not supported
RAS-09U2KH2S-EE | RAS-09U2AH2S-EE
RAS-12U2KH2S-EE | RAS-12U2AH2S-EE
RAS-18U2KH2S-EE | RAS-18U2AH2S-EE
RAS-24U2KH2S-EE | RAS-24U2AH2S-EE
Wall-mounted units series U2KH3S RAS-07U2KH3S-EE | RAS-07U2AH3S-EE Not supported
RAS-09U2KH3S-EE | RAS-09U2AH3S-EE
RAS-12U2KH3S-EE | RAS-12U2AH3S-EE
RAS-18U2KH3S-EE | RAS-18U2AH3S-EE
RAS-24U2KH3S-EE | RAS-24U2AH3S-EE
Multi-split outdoor units
Outdoor units | RAS-2M14S3AV-E Not supported
| RAS-2M18S3AV-E
| RAS-3M18S3AV-E
| RAS-3M26S3AV-E
| RAS-4M27S3AV-E
| RAS-5M34S3AV-E
Multi-split systems
Wall-mounted units series N3KVP RAS-B10N3KVP-E Modbus: TB-1-MB-B
RAS-M10N3KVP-ND
RAS-B13N3KVP-E
RAS-M13N3KVP-ND
RAS-B16N3KVP-E
RAS-M16N3KVP-ND
Wall-mounted units series N3KV RAS-M07N3KV2-E1 Modbus: TB-1-MB-B
RAS-B10N3KV2-E1
RAS-B13N3KV2-E1
RAS-B16N3KV2-E1
RAS-B22N3KV2-E1
RAS-M24N3KV2-E1
Floor-standing units RAS-B10UFV-E1 Modbus: TB-1-MB-B
RAS-B13UFV-E1
RAS-B18UFV-E1
Cassette units RAS-M10SMUV-E Not supported
RAS-M13SMUV-E
RAS-M16SMUV-E
Ducted units RAS-M07G3DV-E Not supported
RAS-M07G3DV-ND
RAS-M10G3DV-E
RAS-M10G3DV-ND
RAS-M13G3DV-E
RAS-M13G3DV-ND
RAS-M16G3DV-E
RAS-M16G3DV-ND
Air-to-water heat pumps 4 series
Outdoor units | HWS-804H-e Not supported
| HWS-1104H-E
| HWS-1104H8(R)-E
| HWS-1404H-E
| HWS-1404H8(R)-E
| HWS-1604H8(R)-E
Light-commercial outdoor units
Outdoor units Super Digital Inverter | RAV-SP1104AT8-E Not supported
| RAV-SP1404AT8-E
| RAV-SP1604AT8-E
| RAV-SP404ATP-E
| RAV-SP454ATP-E
| RAV-SP564ATP-E
| RAV-SP804ATP-E
| RAV-SP1104AT-E
| RAV-SP1404AT-E
Outdoor units Digital Inverter | RAV-SM564ATP-E Not supported
| RAV-SM804ATP-E
| RAV-SM1104ATP-E
| RAV-SM1404ATP-E
| RAV-SM1603AT-E
| RAV-SM2244AT8-E
| RAV-SM2804AT8-E
Light-commercial split systems
High-static-pressure ducted units RAV-SM2242DT-E Not supported
RAV-SM2802DT-E
Compact four-way cassette units (600x600) RAV-SM404MUT-E Not supported
RAV-SM454MUT-E
RAV-SM564MUT-E
Four-way cassette units RAV-SM564UTP-E Not supported
RAV-SM804UTP-E
RAV-SM1104UTP-E
RAV-SM1404UTP-E
RAV-SM1604UTP-E
Compact ducted units RAV-SM404SDT-E Not supported
RAV-SM454SDT-E
RAV-SM564SDT-E
Ceiling-suspended units RAV-SM807CTP-E Not supported
RAV-SM808CTP-E
RAV-SM1107CTP-E
RAV-SM1407CTP-E
RAV-SM1607CTP-E
Wall-mounted units RAV-SM566KRT-E Not supported
RAV-SM806KRT-E
Floor/ceiling-mounted units RAV-SM562XT-E Not supported
RAV-SM802XT-E
Ducted units RAV-SM566BTP-E Not supported
RAV-SM806BTP-E
RAV-SM1106BTP-E
RAV-SM1406BTP-E
RAV-SM1606BTP-E
VRF systems
Four-way cassette units MMU-AP0094HP-E Not supported
MMU-AP0124HP-E
MMU-AP0154HP-E
MMU-AP0184HP-E
MMU-AP0244HP-E
MMU-AP0274HP-E
MMU-AP0304HP-E
MMU-AP0364HP-E
MMU-AP0484HP-E
MMU-AP0564HP-E
Compact four-way cassette units MMU-AP0057MH-E Not supported
MMU-AP0077MH-E
MMU-AP0097MH-E
MMU-AP0127MH-E
MMU-AP0157MH-E
MMU-AP0187MH-E
Two-way cassette units MMU-AP0072WH1 Not supported
MMU-AP0092WH1
MMU-AP0122WH1
MMU-AP0152WH1
MMU-AP0182WH1
MMU-AP0242WH1
MMU-AP0272WH1
MMU-AP0302WH1
MMU-AP0362WH1
MMU-AP0482WH1
MMU-AP0562WH1
One-way cassette units MMU-AP0074YH-E Not supported
MMU-AP0094YH-E
MMU-AP0124YH-E
MMU-AP0154SH-E
MMU-AP0184SH-E
MMU-AP0244SH-E
Standard ducted units MMD-AP0076BHP-E Not supported
MMD-AP0096BHP-E
MMD-AP0126BHP-E
MMD-AP0156BHP-E
MMD-AP0186BHP-E
MMD-AP0246BHP-E
MMD-AP0276BHP-E
MMD-AP0306BHP-E
MMD-AP0366BHP-E
MMD-AP0486BHP-E
MMD-AP0566BHP-E
High-static-pressure ducted units MMD-AP0186HP-E Not supported
MMD-AP0246HP-E
MMD-AP0276HP-E
MMD-AP0366HP-E
MMD-AP0486HP-E
MMD-AP0566HP-E
MMD-AP0726HP-E
MMD-AP0966HP-E
Compact ducted units MMD-AP0056SPH-E Not supported
MMD-AP0074SPH-E
MMD-AP0094SPH-E
MMD-AP0124SPH-E
MMD-AP0154SPH-E
MMD-AP0184SPH-E
MMD-AP0244SPH-E
MMD-AP0274SPH-E
Ceiling-mounted units MMC-AP0158HP-E Not supported
MMC-AP0188HP-E
MMC-AP0248HP-E
MMC-AP0278HP-E
MMC-AP0368HP-E
MMC-AP0488HP-E
Wall-mounted units series 3 MMK-AP0073H Not supported
MMK-AP0093H
MMK-AP0123H
MMK-AP0153H
MMK-AP0183H
MMK-AP0243H
Compact wall-mounted units series 4 MMK-AP0054MHP-E Not supported
MMK-AP0074MH-E
MMK-AP0094MH-E
MMK-AP0124MH-E
Two-way console units MML-AP0074NH-E Not supported
MML-AP0094NH-E
MML-AP0124NH-E
MML-AP0154NH-E
MML-AP0184NH-E
Cabinet floor-standing units MML-AP0074H-E Not supported
MML-AP0094H-E
MML-AP0124H-E
MML-AP0154H-E
MML-AP0184H-E
MML-AP0244H-E
Concealed floor-standing units MML-AP0074BH-E Not supported
MML-AP0094BH-E
MML-AP0124BH-E
MML-AP0154BH-E
MML-AP0184BH-E
MML-AP0244BH-E
Column-type floor-standing units MMF-AP0156H-E Not supported
MMF-AP0186H-E
MMF-AP0246H-E
MMF-AP0276H-E
MMF-AP0366H-E
MMF-AP0486H-E
MMF-AP0566H-E
Ducted units with 100% fresh-air intake MMD-AP0481HFE Not supported
MMD-AP0721HFE
MMD-AP0961HFE
VRF outdoor units
Outdoor units series SMMS-e | MMY-MAP0806HT8P-E Not supported
| MMY-MAP1006HT8P-E
| MMY-MAP1206HT8P-E
| MMY-MAP1406HT8P-E
| MMY-MAP1606HT8P-E
| MMY-MAP1806HT8P-E
| MMY-MAP2006HT8P-E
| MMY-MAP2206HT8P-E
| MMY-AP2416HT8P-E
| MMY-AP2616HT8P-E
| MMY-AP2816HT8P-E
| MMY-AP3016HT8P-E
| MMY-AP3216HT8P-E
| MMY-AP3416HT8P-E
| MMY-AP3616HT8P-E
| MMY-AP3816HT8P-E
| MMY-AP4016HT8P-E
| MMY-AP4216HT8P-E
| MMY-AP4416HT8P-E
| MMY-AP4616HT8P-E
| MMY-AP4816HT8P-E
| MMY-AP5016HT8P-E
| MMY-AP5216HT8P-E
| MMY-AP5416HT8P-E
| MMY-AP5616HT8P-E
| MMY-AP5816HT8P-E
| MMY-AP6016HT8P-E
Outdoor units series SHRM-e | MMY-MAP0806FT8P-E Not supported
| MMY-MAP1206FT8P-E
| MMY-MAP1606FT8P-E
| MMY-MAP2006FT8P-E
| MMY-AP3206FT8P-E
| MMY-AP4006FT8P-E
| MMY-AP4806FT8P-E
| MMY-AP5406FT8P-E
Outdoor units series MiNi SMMS-e | MCY-MHP0404HS8-E Not supported
| MCY-MHP0504HS8-E
| MCY-MHP0604HS8-E

VENTALEN

+36 204 181 070

Brands

Partnership

About

Contact

Ventalen © 2026

All rights reserved

Website maintained by the Ventalen technical team
