1. Connection options

Copied.
Connector Gateway
Modbus Zigbee
CN-CNT
Connector on the indoor-unit PCB 		PN-1-MB-B

1.1 Connector example CN-CNT

Copied.


loading

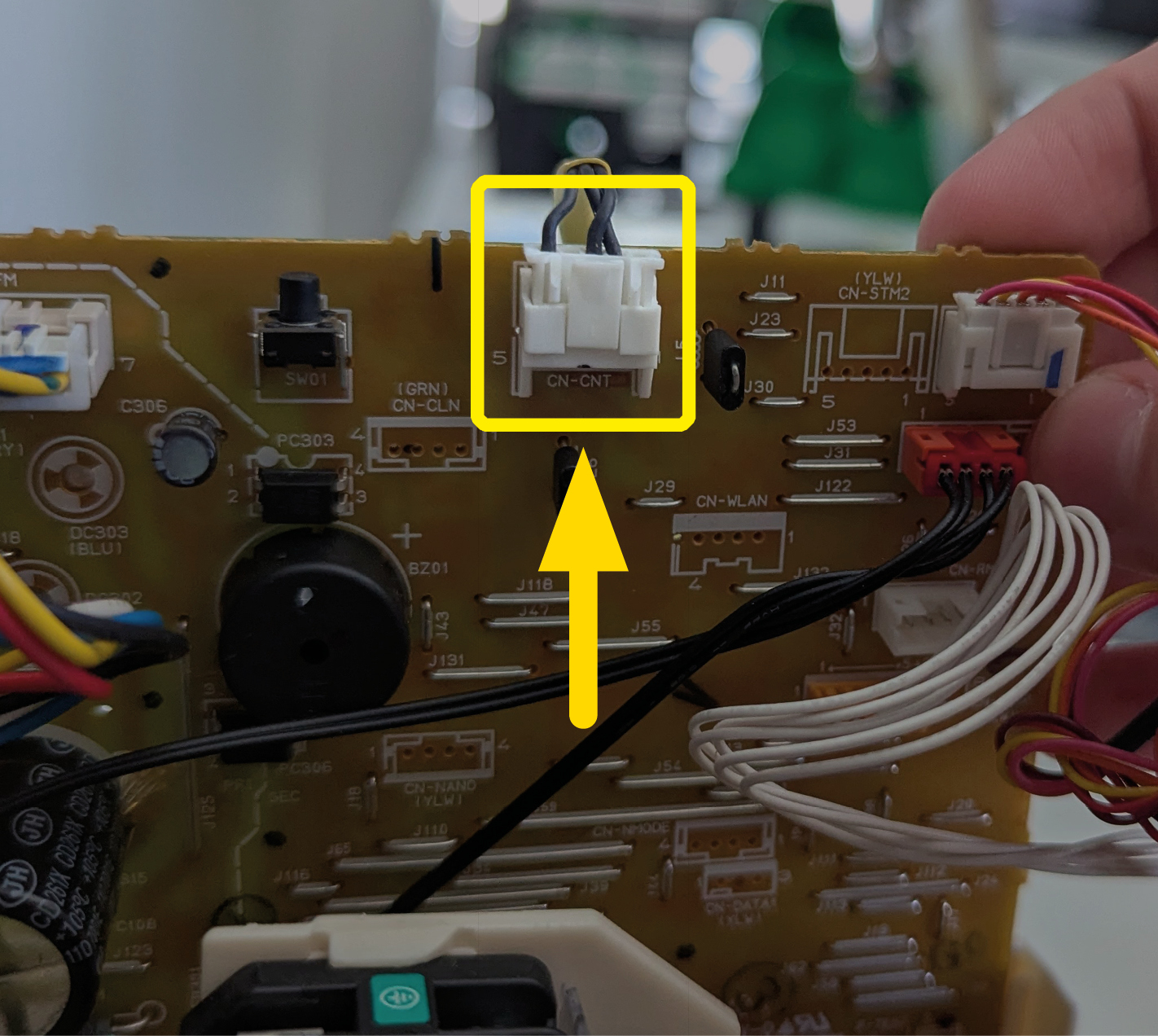

Connector example CN-CNT for connecting a gateway to the Panasonic air conditioner

Connector example CN-CNT for connecting a gateway to the Panasonic air conditioner

2. Compatible Panasonic air-conditioning models

Copied.

2025

2.1 Air conditioners: 2025

Copied.


Air-conditioning seriesModelGateway
Residential systems
Wall-mounted Nordic HZ · R32CS-HZ25ZKE(-H) | CU-HZ25ZKEModbus: PN-1-MB-B
CS-HZ35ZKE(-H) | CU-HZ35ZKE
Wall-mounted Etherea · R32CS-XZ20ZKEW-H | CU-Z20ZKEModbus: PN-1-MB-B
CS-XZ25ZKEW-H | CU-Z25ZKE
CS-XZ35ZKEW-H | CU-Z35ZKE
CS-Z42ZKEW-H | CU-Z42ZKE
CS-XZ20ZKEW | CU-Z20ZKE
CS-XZ25ZKEW | CU-Z25ZKE
CS-XZ35ZKEW | CU-Z35ZKE
CS-XZ50ZKEW | CU-Z50ZKE
CS-Z20ZKEW | CU-Z20ZKE
CS-Z25ZKEW | CU-Z25ZKE
CS-Z35ZKEW | CU-Z35ZKE
CS-Z42ZKEW | CU-Z42ZKE
CS-Z50ZKEW | CU-Z50ZKE
CS-Z71ZKEW | CU-Z71ZKE
Super-compact wall-mounted TZ · R32CS-TZ20ZKEW | CU-TZ20ZKEModbus: PN-1-MB-B
CS-TZ25ZKEW | CU-TZ25ZKE
CS-TZ35ZKEW | CU-TZ35ZKE
CS-TZ42ZKEW | CU-TZ42ZKE
CS-TZ50ZKEW | CU-TZ50ZKE
CS-TZ60ZKEW | CU-TZ60ZKE
CS-TZ71ZKEW | CU-TZ71ZKE
Compact wall-mounted
Standart PZ inverter series · R32		CS-PZ20WKD | CU-PZ20WKDModbus: PN-1-MB-B
CS-PZ25WKD | CU-PZ25WKD
CS-PZ35WKD | CU-PZ35WKD
CS-PZ50WKD | CU-PZ50WKD
Multi-split systems
Outdoor units Free Multi System Z · R32CU-2Z35TBENot supported
CU-2Z41TBE
CU-2Z50TBE
CU-3Z52TBE
CU-3Z68TBE
CU-4Z68TBE
CU-4Z80TBE
CU-5Z90TBE
Wall-mounted
Etherea		CS-XZ20ZKEW-HModbus: PN-1-MB-B
CS-XZ25ZKEW-H
CS-XZ35ZKEW-H
CS-Z42ZKEW-H
CS-XZ20ZKEW
CS-XZ25ZKEW
CS-XZ35ZKEW
CS-XZ50ZKEW
CS-Z20ZKEW
CS-Z25ZKEW
CS-Z35ZKEW
CS-Z42ZKEW
CS-Z50ZKEW
CS-Z71ZKEW
Wall-mounted TZ
super-compact		CS-MTZ16ZKEModbus: PN-1-MB-B
CS-TZ20ZKEW
CS-TZ25ZKEW
CS-TZ35ZKEW
CS-TZ42ZKEW
CS-TZ50ZKEW
CS-TZ60ZKEW
CS-TZ71ZKEW
Floor-standing
console		CS-MZ20UFEAModbus: PN-1-MB-B
CS-Z25UFEAW
CS-Z35UFEAW
CS-Z55UFEAW
4-way
cassette		S-M20PY3ENot supported
S-25PY3E
S-36PY3E
S-50PY3E
S-60PY3E
Ducted unit
with low static
pressure		CS-MZ20UD3EAModbus: PN-1-MB-B
CS-Z25UD3EAW
CS-Z35UD3EAW
CS-Z50UD3EAW
CS-Z60UD3EAW
Light-commercial systems
Wall-mounted Professional Inverter -35 °C • R32CS-Z25YKEA | CU-Z25YKEAModbus: PN-1-MB-B
CS-Z35YKEA | CU-Z35YKEA
CS-Z42YKEA | CU-Z42YKEA
CS-Z50YKEA | CU-Z50YKEA
CS-Z71YKEA | CU-Z71YKEA
Wall-mounted inverter unit
PACi Elite • Refrigerant R32		S-36PK2E5B | U-36PZH2E5Not supported
S-50PK2E5B | U-50PZH2E5
S-60PK2E5B | U-60PZH2E5
S-71PK2E5B | U-71PZH2E5
S-100PK2E5B | U-100PZH2E5
S-71PK2E5B | U-71PZH2E8
S-100PK2E5B | U-100PZH2E8
Wall-mounted inverter unit
PACi Standard+ • Refrigerant R32		S-60PK2E5B | U-60PZ2E5Not supported
S-71PK2E5B | U-71PZ2E5
S-100PK2E5B | U-100PZ2E5
S-100PK2E5B | U-100PZ2E8
Cassette inverter unit PACi Elite
and Standard, 4-way 60x60
• Refrigerant R32		S-36PY2E5B | U-36PZH2E5 Not supported
S-50PY2E5B | U-50PZH2E5
Cassette inverter unit PACi Elite
4-way 90x90 • Refrigerant R32		S-36PU2E5B | U-36PZH2E5Not supported
S-50PU2E5B | U-50PZH2E5
S-60PU2E5B | U-60PZH2E5
S-71PU2E5B | U-71PZH2E5
S-100PU2E5B | U-100PZH2E5
S-125PU2E5B | U-125PZH2E5
S-140PU2E5B | U-140PZH2E5
S-71PU2E5B | U-71PZH2E8
S-100PU2E5B | U-100PZH2E8
S-125PU2E5B | U-125PZH2E8
S-140PU2E5B | U-140PZH2E8
Cassette inverter unit PACi
Standard+, 4-way 90x90
• Refrigerant R32		S-60PU2E5B | U-60PZ2E5Not supported
S-71PU2E5B | U-71PZ2E5
S-100PU2E5B | U-100PZ2E5
S-125PU2E5B | U-125PZ2E5
S-140PU2E5B | U-140PZ2E5
S-100PU2E5B | U-100PZ2E8
S-125PU2E5B | U-125PZ2E8
S-140PU2E5B | U-140PZ2E8
Ceiling-mounted inverter unit PACi Elite +
• Refrigerant R32		S-36PT2E5B | U-36PZH2E5Not supported
S-50PT2E5B | U-50PZH2E5
S-60PT2E5B | U-60PZH2E5
S-71PT2E5B | U-71PZH2E5
S-100PT2E5B | U-100PZH2E5
S-125PT2E5B | U-125PZH2E5
S-140PT2E5B | U-140PZH2E5
S-71PT2E5B | U-71PZH2E8
S-100PT2E5B | U-100PZH2E8
S-125PT2E5B | U-125PZH2E8
S-140PT2E5B | U-140PZH2E8
Ceiling-mounted inverter unit PACi
Standard+ • Refrigerant R32		S-60PT2E5B | U-60PZ2E5Not supported
S-71PT2E5B | U-71PZ2E5
S-100PT2E5B | U-100PZ2E5
S-125PT2E5B | U-125PZ2E5
S-140PT2E5B | U-140PZ2E5
S-100PT2E5B | U-100PZ2E8
S-125PT2E5B | U-125PZ2E8
S-140PT2E5B | U-140PZ2E8
Medium
static-pressure concealed ducted inverter unit
PACi Elite+ • Refrigerant R32		S-36PF1E5B | U-36PZH2E5Not supported
S-50PF1E5B | U-50PZH2E5
S-60PF1E5B | U-60PZH2E5
S-71PF1E5B | U-71PZH2E5
S-100PF1E5B | U-100PZH2E5
S-125PF1E5B | U-125PZH2E5
S-140PF1E5B | U-140PZH2E5
S-71PF1E5B | U-71PZH2E8
S-100PF1E5B | U-100PZH2E8
S-125PF1E5B | U-125PZH2E8
S-140PF1E5B | U-140PZH2E8
Medium
static-pressure concealed ducted inverter unit
PACi Standart+ • Refrigerant R32		S-60PF1E5B | U-60PZ2E5Not supported
S-71PF1E5B | U-71PZ2E5
S-100PF1E5B | U-100PZ2E5
S-125PF1E5B | U-125PZ2E5
S-140PF1E5B | U-140PZ2E5
S-100PF1E5B | U-100PZ2E8
S-125PF1E5B | U-125PZ2E8
S-140PF1E5B | U-140PZ2E8
High
static-pressure concealed ducted system
Big PACi inverter unit 20,00-25,00 kW
• Refrigerant R32		S-200PE3E5B | U-200PZH2E8Not supported
S-250PE3E5B | U-250PZH2E8
Multi-zone systems (outdoor units)
High-efficiency mini ECOi LE2 series systems from 4 to 6 HP · R410AU-4LE2E5Not supported
U-5LE2E5
U-6LE2E5
U-4LE2E8
U-5LE2E8
U-6LE2E8
High-efficiency mini ECOi LE1 series systems, 8 and 10 HP · R410AU-8LE1E8 Not supported
U-10LE1E8
2-pipe systems ECOi EX series ME2U-8ME2E8Not supported
U-10ME2E8
U-12ME2E8
U-14ME2E8
U-16ME2E8
U-18ME2E8
U-20ME2E8
Three-pipe system ECOi EX series MF3U-8MF3E8Not supported
U-10MF3E8
U-12MF3E8
U-14MF3E8
U-16MF3E8
2-pipe systems ECO G series GE3U-16GE3E5Not supported
U-20GE3E5
U-25GE3E5
U-30GE3E5
3-pipe systems ECO G series GF3U-16GF3E5Not supported
U-20GF3E5
U-25GF3E5
2-pipe hybrid systems GHP/EHPU-20GES3E5 Not supported
U-10MES2E8
Multi-zone systems (indoor units)
4-way cassette type U2 90x90 · R32 / R410AS-22MU2E5BNNot supported
S-28MU2E5BN
S-36MU2E5BN
S-45MU2E5BN
S-56MU2E5BN
S-60MU2E5BN
S-73MU2E5BN
S-90MU2E5BN
S-112MU2E5BN
S-140MU2E5BN
S-160MU2E5BN
S-22MU2E5B
S-28MU2E5B
S-36MU2E5B
S-45MU2E5B
S-56MU2E5B
S-60MU2E5B
S-73MU2E5B
S-90MU2E5B
S-106MU2E5B
S-140MU2E5B
S-160MU2E5B
4-way cassette type Y3 60x60 · R32 / R410AS-15MY3ENot supported
S-22MY3E
S-28MY3E
S-36MY3E
S-45MY3E
S-56MY3E
2-way cassette type L1 · R410AS-22ML1E5Not supported
S-28ML1E5
S-36ML1E5
S-45ML1E5
S-56ML1E5
S-73ML1E5
1-way cassette type D1 · R410AS-28MD1E5Not supported
S-36MD1E5
S-45MD1E5
S-56MD1E5
S-73MD1E5
New adaptive variable static-pressure duct
type F3 · R32 / R410A		S-15MF3E5ANNot supported
S-22MF3E5AN
S-28MF3E5AN
S-36MF3E5AN
S-45MF3E5AN
S-56MF3E5AN
S-60MF3E5AN
S-73MF3E5AN
S-90MF3E5AN
S-112MF3E5AN
S-140MF3E5AN
S-160MF3E5AN
S-15MF3E5A
S-22MF3E5A
S-28MF3E5A
S-36MF3E5A
S-45MF3E5A
S-56MF3E5A
S-60MF3E5A
S-73MF3E5A
S-90MF3E5A
S-106MF3E5A
S-140MF3E5A
S-160MF3E5A
Compact variable static-pressure ducted unit type M1
· R32 / R410A		S-15MM1E5BNot supported
S-22MM1E5B
S-28MM1E5B
S-36MM1E5B
S-45MM1E5B
S-56MM1E5B
High static-pressure ducted unit type E2 · R410AS-224ME2E5Not supported
S-280ME2E5
S-224ME2E5
S-280ME2E5
Ceiling-mounted units type T2 · R410AS-36MT2E5ANot supported
S-45MT2E5A
S-56MT2E5A
S-73MT2E5A
S-106MT2E5A
S-140MT2E5A
Wall-mounted units type K2 · R32 / R410AS-15MK2E5BNot supported
S-22MK2E5B
S-28MK2E5B
S-36MK2E5B
S-45MK2E5B
S-56MK2E5B
S-73MK2E5B
S-106MK2E5B
Floor-standing units type P1 · R410AS-22MP1E5Not supported
S-28MP1E5
S-36MP1E5
S-45MP1E5
S-56MP1E5
S-71MP1E5
Floor-standing units type R1 for concealed installation · R410AS-22MR1E5Not supported
S-28MR1E5
S-36MR1E5
S-45MR1E5
S-56MR1E5
S-71MR1E5
High static-pressure system type E2
for concealed installation · R410A		S-224ME2E5Not supported
S-280ME2E5
S-224ME2E5
S-280ME2E5

2024

2.2 Air conditioners: 2024

Copied.


Air-conditioning seriesModelGateway
Residential systems
Wall-mounted Professional Inverter -35 °C • R32CS-Z25YKEA | CU-Z25YKEAModbus: PN-1-MB-B
CS-Z35YKEA | CU-Z35YKEA
CS-Z42YKEA | CU-Z42YKEA
CS-Z50YKEA | CU-Z50YKEA
CS-Z71YKEA | CU-Z71YKEA
Wall-mounted Nordic HZ · R32CS-HZ25ZKE(-H) | CU-HZ25ZKEModbus: PN-1-MB-B
CS-HZ35ZKE(-H) | CU-HZ35ZKE
Wall-mounted Etherea · R32CS-XZ20XKEW-H | CU-Z20XKEModbus: PN-1-MB-B
CS-XZ25XKEW-H | CU-Z25XKE
CS-XZ35XKEW-H | CU-Z35XKE
CS-XZ20XKEW | CU-Z20XKE
CS-XZ25XKEW | CU-Z25XKE
CS-XZ35XKEW | CU-Z35XKE
CS-XZ50XKEW | CU-Z50XKE
CS-Z20XKEW | CU-Z20XKE
CS-Z25XKEW | CU-Z25XKE
CS-Z35XKEW | CU-Z35XKE
CS-Z42XKEW | CU-Z42XKE
CS-Z50XKEW | CU-Z50XKE
CS-Z71XKEW | CU-Z71XKE
E series deluxe wall-mounted split systemsCS-E7RKDW | CU-E7RKDModbus: PN-1-MB-B
CS-E9RKDW | CU-E9RKD
CS-E7RKDW | CU-E7RKD
CS-E12RKDW | CU-E12RKD
CS-E15RKDW | CU-E15RKD
CS-E18RKDW | CU-E18RKD
CS-E24RKDW | CU-E24RKD
CS-E28RKDWS | CU-E28RKD
Super-compact wall-mounted TZ · R32CS-TZ20WKEW | CU-TZ20WKEModbus: PN-1-MB-B
CS-TZ25WKEW | CU-TZ25WKE
CS-TZ35WKEW | CU-TZ35WKE
CS-TZ42WKEW | CU-TZ42WKE
CS-TZ50WKEW | CU-TZ50WKE
CS-TZ60WKEW | CU-TZ60WKE
CS-TZ71WKEW | CU-TZ71WKE
Compact wall-mounted
Standart PZ inverter series · R32		CS-PZ20WKD | CU-PZ20WKDModbus: PN-1-MB-B
CS-PZ25WKD | CU-PZ25WKD
CS-PZ35WKD | CU-PZ35WKD
CS-PZ50WKD | CU-PZ50WKD
Multi-split systems
Multi-split outdoor unitsCU-2E15PBDNot supported
CU-2E18PBD
CU-3E18JBD
CU-4E23JBD
CU-4E27PBD
CU-5E34PBD
Wall-mounted
Etherea		CS-MZ16XKEModbus: PN-1-MB-B
CS-Z20XKEW
CS-Z25XKEW
CS-Z35XKEW
CS-Z42XKEW
CS-Z50XKEW
CS-Z71XKEW
CS-XZ20XKEW
CS-XZ25XKEW
CS-XZ35XKEW
CS-XZ50XKEW
Wall-mounted TZ
super-compact		CS-MTZ16WKEModbus: PN-1-MB-B
CS-TZ20WKEW
CS-TZ25WKEW
CS-TZ35WKEW
CS-TZ42WKEW
CS-TZ50WKEW
CS-TZ60WKEW
CS-TZ71WKEW
E series wall-mounted CS-E7RKDWModbus: PN-1-MB-B
CS-E9RKDW
CS-E12RKDW
CS-E15RKDW
CS-E18RKDW
CS-E24RKDW
Floor-standing
console		CS-MZ20UFEAModbus: PN-1-MB-B
CS-Z25UFEAW
CS-Z35UFEAW
CS-Z55UFEAW
4-way
cassette		CS-MZ20UB4EAModbus: PN-1-MB-B
CS-MZ25UB4EAW
CS-MZ35UB4EAW
CS-MZ50UB4EAW
CS-MZ60UB4EAW
Ducted unit
with low static
pressure		CS-MZ20UD3EAModbus: PN-1-MB-B
CS-Z25UD3EAW
CS-Z35UD3EAW
CS-Z50UD3EAW
CS-Z60UD3EAW
Light-commercial systems
Wall-mounted Professional Inverter -35 °C • R32CS-Z25YKEA | CU-Z25YKEAModbus: PN-1-MB-B
CS-Z35YKEA | CU-Z35YKEA
CS-Z42YKEA | CU-Z42YKEA
CS-Z50YKEA | CU-Z50YKEA
CS-Z71YKEA | CU-Z71YKEA
Wall-mounted inverter unit
PACi Elite • Refrigerant R32		S-36PK2E5B | U-36PZH2E5Not supported
S-50PK2E5B | U-50PZH2E5
S-60PK2E5B | U-60PZH2E5
S-71PK2E5B | U-71PZH2E5
S-100PK2E5B | U-100PZH2E5
S-71PK2E5B | U-71PZH2E8
S-100PK2E5B | U-100PZH2E8
Wall-mounted inverter unit
PACi Standard+ • Refrigerant R32		S-60PK2E5B | U-60PZ2E5Not supported
S-71PK2E5B | U-71PZ2E5
S-100PK2E5B | U-100PZ2E5
S-100PK2E5B | U-100PZ2E8
Cassette inverter unit PACi Elite
and Standard, 4-way 60x60
• Refrigerant R32		S-36PY2E5B | U-36PZH2E5 Not supported
S-50PY2E5B | U-50PZH2E5
Cassette inverter unit PACi Elite
4-way 90x90 • Refrigerant R32		S-36PU2E5B | U-36PZH2E5Not supported
S-50PU2E5B | U-50PZH2E5
S-60PU2E5B | U-60PZH2E5
S-71PU2E5B | U-71PZH2E5
S-100PU2E5B | U-100PZH2E5
S-125PU2E5B | U-125PZH2E5
S-140PU2E5B | U-140PZH2E5
S-71PU2E5B | U-71PZH2E8
S-100PU2E5B | U-100PZH2E8
S-125PU2E5B | U-125PZH2E8
S-140PU2E5B | U-140PZH2E8
Cassette inverter unit PACi
Standard+, 4-way 90x90
• Refrigerant R32		S-60PU2E5B | U-60PZ2E5Not supported
S-71PU2E5B | U-71PZ2E5
S-100PU2E5B | U-100PZ2E5
S-125PU2E5B | U-125PZ2E5
S-140PU2E5B | U-140PZ2E5
S-100PU2E5B | U-100PZ2E8
S-125PU2E5B | U-125PZ2E8
S-140PU2E5B | U-140PZ2E8
Ceiling-mounted inverter unit PACi Elite +
• Refrigerant R32		S-36PT2E5B | U-36PZH2E5Not supported
S-50PT2E5B | U-50PZH2E5
S-60PT2E5B | U-60PZH2E5
S-71PT2E5B | U-71PZH2E5
S-100PT2E5B | U-100PZH2E5
S-125PT2E5B | U-125PZH2E5
S-140PT2E5B | U-140PZH2E5
S-71PT2E5B | U-71PZH2E8
S-100PT2E5B | U-100PZH2E8
S-125PT2E5B | U-125PZH2E8
S-140PT2E5B | U-140PZH2E8
Ceiling-mounted inverter unit PACi
Standard+ • Refrigerant R32		S-60PT2E5B | U-60PZ2E5Not supported
S-71PT2E5B | U-71PZ2E5
S-100PT2E5B | U-100PZ2E5
S-125PT2E5B | U-125PZ2E5
S-140PT2E5B | U-140PZ2E5
S-100PT2E5B | U-100PZ2E8
S-125PT2E5B | U-125PZ2E8
S-140PT2E5B | U-140PZ2E8
High
static-pressure concealed ducted inverter unit
PACi Elite+ • Refrigerant R32		S-36PF1E5B | U-36PZH2E5Not supported
S-50PF1E5B | U-50PZH2E5
S-60PF1E5B | U-60PZH2E5
S-71PF1E5B | U-71PZH2E5
S-100PF1E5B | U-100PZH2E5
S-125PF1E5B | U-125PZH2E5
S-140PF1E5B | U-140PZH2E5
S-71PF1E5B | U-71PZH2E8
S-100PF1E5B | U-100PZH2E8
S-125PF1E5B | U-125PZH2E8
S-140PF1E5B | U-140PZH2E8
High
static-pressure concealed ducted inverter unit
PACi Standart+ • Refrigerant R32		S-60PF1E5B | U-60PZ2E5Not supported
S-71PF1E5B | U-71PZ2E5
S-100PF1E5B | U-100PZ2E5
S-125PF1E5B | U-125PZ2E5
S-140PF1E5B | U-140PZ2E5
S-100PF1E5B | U-100PZ2E8
S-125PF1E5B | U-125PZ2E8
S-140PF1E5B | U-140PZ2E8
Low
static-pressure concealed ducted inverter unit
PACi Elite+ • Refrigerant R32		S-36PN1E5B | U-36PZH2E5Not supported
S-50PN1E5B | U-50PZH2E5
S-60PN1E5B | U-60PZH2E5
S-71PN1E5B | U-71PZH2E5
S-100PN1E5B | U-100PZH2E5
S-125PN1E5B | U-125PZH2E5
S-140PN1E5B | U-140PZH2E5
S-71PN1E5B | U-71PZH2E8
S-100PN1E5B | U-100PZH2E8
S-125PN1E5B | U-125PZH2E8
S-140PN1E5B | U-140PZH2E8
High
static-pressure concealed ducted system
Big PACi inverter unit 20,00-25,00 kW
• Refrigerant R32		S-200PE3E5B | U-200PZH2E8Not supported
S-250PE3E5B | U-250PZH2E8
Multi-zone systems (outdoor units)
High-efficiency mini ECOi LE2 series systems from 4 to 6 HP · R410AU-4LE2E5Not supported
U-5LE2E5
U-6LE2E5
U-4LE2E8
U-5LE2E8
U-6LE2E8
High-efficiency mini ECOi LE1 series systems, 8 and 10 HP · R410AU-8LE1E8 Not supported
U-10LE1E8
2-pipe systems ECOi EX series ME2U-8ME2E8Not supported
U-10ME2E8
U-12ME2E8
U-14ME2E8
U-16ME2E8
U-18ME2E8
U-20ME2E8
Three-pipe system ECOi EX series MF3U-8MF3E8Not supported
U-10MF3E8
U-12MF3E8
U-14MF3E8
U-16MF3E8
2-pipe systems ECO G series GE3U-16GE3E5Not supported
U-20GE3E5
U-25GE3E5
U-30GE3E5
2-pipe systems ECO G HIGH POWERU-16GEP2E5Not supported
U-20GEP2E5
U-25GEP2E5
3-pipe systems ECO G series GF3U-16GF3E5Not supported
U-20GF3E5
U-25GF3E5
2-pipe hybrid systems GHP/EHPU-20GES3E5 Not supported
U-10MES2E8
Multi-zone systems (indoor units)
4-way cassette type U2 90x90 · R32 / R410AS-22MU2E5BNot supported
S-28MU2E5B
S-36MU2E5B
S-45MU2E5B
S-56MU2E5B
S-60MU2E5B
S-73MU2E5B
S-90MU2E5B
S-106MU2E5B
S-140MU2E5B
S-160MU2E5B
4-way cassette type Y3 60x60 · R32 / R410AS-15MY2E5ANot supported
S-22MY2E5A
S-28MY2E5A
S-36MY2E5A
S-45MY2E5A
S-56MY2E5A
2-way cassette type L1 · R410AS-22ML1E5Not supported
S-28ML1E5
S-36ML1E5
S-45ML1E5
S-56ML1E5
S-73ML1E5
1-way cassette type D1 · R410AS-28MD1E5Not supported
S-36MD1E5
S-45MD1E5
S-56MD1E5
S-73MD1E5
New adaptive variable static-pressure duct
type F3 · R32 / R410A		S-15MF3E5BNot supported
S-22MF3E5B
S-28MF3E5B
S-36MF3E5B
S-45MF3E5B
S-56MF3E5B
S-60MF3E5B
S-73MF3E5B
S-90MF3E5B
S-106MF3E5B
S-140MF3E5B
S-160MF3E5B
S-15MF3E5A
S-22MF3E5A
S-28MF3E5A
S-36MF3E5A
S-45MF3E5A
S-56MF3E5A
S-60MF3E5A
S-73MF3E5A
S-90MF3E5A
S-106MF3E5A
S-140MF3E5A
S-160MF3E5A
Compact variable static-pressure ducted unit type M1
· R32 / R410A		S-15MM1E5ANot supported
S-22MM1E5A
S-28MM1E5A
S-36MM1E5A
S-45MM1E5A
S-56MM1E5A
Slim low static-pressure ducted units series 20 type MZS-22MZ1H4ANot supported
S-28MZ1H4A
S-36MZ1H4A
S-45MZ1H4A
S-56MZ1H4A
S-60MZ1H4A
S-73MZ1H4A
Floor-standing console type G1S-22MG1E5ANot supported
S-28MG1E5A
S-36MG1E5A
S-45MG1E5A
S-56MG1E5A
High static-pressure ducted unit type E2 · R410AS-224ME2E5Not supported
S-280ME2E5
S-224ME2E5
S-280ME2E5
Ceiling-mounted units type T2 · R410AS-36MT2E5ANot supported
S-45MT2E5A
S-56MT2E5A
S-73MT2E5A
S-106MT2E5A
S-140MT2E5A
Wall-mounted units type K2 · R32 / R410AS-15MK2E5ANot supported
S-22MK2E5A
S-28MK2E5
S-36MK2E5
S-45MK2E5A
S-56MK2E5A
S-73MK2E5A
S-106MK2E5A
Floor-standing units type P1 · R410AS-22MP1E5Not supported
S-28MP1E5
S-36MP1E5
S-45MP1E5
S-56MP1E5
S-71MP1E5
Floor-standing units type R1 for concealed installation · R410AS-22MR1E5Not supported
S-28MR1E5
S-36MR1E5
S-45MR1E5
S-56MR1E5
S-71MR1E5

2023

2.3 Air conditioners: 2023

Copied.


Air-conditioning seriesModelGateway
Residential systems
Wall-mounted Professional Inverter -35 °C • R32CS-Z25YKEA | CU-Z25YKEAModbus: PN-1-MB-B
CS-Z35YKEA | CU-Z35YKEA
CS-Z42YKEA | CU-Z42YKEA
CS-Z50YKEA | CU-Z50YKEA
CS-Z71YKEA | CU-Z71YKEA
Wall-mounted Nordic HZ · R32CS-HZ25XKE | CU-HZ25XKEModbus: PN-1-MB-B
CS-HZ35XKE | CU-HZ35XKE
Wall-mounted Etherea · R32CS-XZ20XKEW-H | CU-Z20XKEModbus: PN-1-MB-B
CS-XZ25XKEW-H | CU-Z25XKE
CS-XZ35XKEW-H | CU-Z35XKE
CS-XZ20XKEW | CU-Z20XKE
CS-XZ25XKEW | CU-Z25XKE
CS-XZ35XKEW | CU-Z35XKE
CS-XZ50XKEW | CU-Z50XKE
CS-Z20XKEW | CU-Z20XKE
CS-Z25XKEW | CU-Z25XKE
CS-Z35XKEW | CU-Z35XKE
CS-Z42XKEW | CU-Z42XKE
CS-Z50XKEW | CU-Z50XKE
CS-Z71XKEW | CU-Z71XKE
E series deluxe wall-mounted split systemsCS-E7RKDW | CU-E7RKDModbus: PN-1-MB-B
CS-E9RKDW | CU-E9RKD
CS-E7RKDW | CU-E7RKD
CS-E12RKDW | CU-E12RKD
CS-E15RKDW | CU-E15RKD
CS-E18RKDW | CU-E18RKD
CS-E24RKDW | CU-E24RKD
CS-E28RKDWS | CU-E28RKD
Super-compact wall-mounted TZ · R32CS-TZ20WKEW | CU-TZ20WKEModbus: PN-1-MB-B
CS-TZ25WKEW | CU-TZ25WKE
CS-TZ35WKEW | CU-TZ35WKE
CS-TZ42WKEW | CU-TZ42WKE
CS-TZ50WKEW | CU-TZ50WKE
CS-TZ60WKEW | CU-TZ60WKE
CS-TZ71WKEW | CU-TZ71WKE
Compact wall-mounted
Standart PZ inverter series · R32		CS-PZ20WKE | CU-PZ20WKDModbus: PN-1-MB-B
CS-PZ25WKE | CU-PZ25WKE
CS-PZ35WKE | CU-PZ35WKE
CS-PZ50WKE | CU-PZ50WKE
Multi-split systems
Multi-split outdoor unitsCU-2E15PBDNot supported
CU-2E18PBD
CU-3E18JBD
CU-4E23JBD
CU-4E27PBD
CU-5E34PBD
Wall-mounted
Etherea		CS-MZ16XKEModbus: PN-1-MB-B
CS-Z20XKEW
CS-Z25XKEW
CS-Z35XKEW
CS-Z42XKEW
CS-Z50XKEW
CS-Z71XKEW
CS-XZ20XKEW
CS-XZ25XKEW
CS-XZ35XKEW
CS-XZ50XKEW
Wall-mounted TZ
super-compact		CS-MTZ16WKEModbus: PN-1-MB-B
CS-TZ20WKEW
CS-TZ25WKEW
CS-TZ35WKEW
CS-TZ42WKEW
CS-TZ50WKEW
CS-TZ60WKEW
CS-TZ71WKEW
E series wall-mounted CS-E7RKDWModbus: PN-1-MB-B
CS-E9RKDW
CS-E12RKDW
CS-E15RKDW
CS-E18RKDW
CS-E24RKDW
Floor-standing
console		CS-MZ20UFEAModbus: PN-1-MB-B
CS-Z25UFEAW
CS-Z35UFEAW
CS-Z55UFEAW
4-way
cassette		CS-MZ20UB4EAModbus: PN-1-MB-B
CS-MZ25UB4EAW
CS-MZ35UB4EAW
CS-MZ50UB4EAW
CS-MZ60UB4EAW
Ducted unit
with low static
pressure		CS-MZ20UD3EAModbus: PN-1-MB-B
CS-Z25UD3EAW
CS-Z35UD3EAW
CS-Z50UD3EAW
CS-Z60UD3EAW
Light-commercial systems
Wall-mounted Professional Inverter -35 °C • R32CS-Z25YKEA | CU-Z25YKEAModbus: PN-1-MB-B
CS-Z35YKEA | CU-Z35YKEA
CS-Z42YKEA | CU-Z42YKEA
CS-Z50YKEA | CU-Z50YKEA
CS-Z71YKEA | CU-Z71YKEA
Wall-mounted inverter unit
PACi Elite • Refrigerant R32		S-36PK2E5B | U-36PZH2E5Not supported
S-50PK2E5B | U-50PZH2E5
S-60PK2E5B | U-60PZH2E5
S-71PK2E5B | U-71PZH2E5
S-100PK2E5B | U-100PZH2E5
S-71PK2E5B | U-71PZH2E8
S-100PK2E5B | U-100PZH2E8
Wall-mounted inverter unit
PACi Standard+ • Refrigerant R32		S-60PK2E5B | U-60PZ2E5Not supported
S-71PK2E5B | U-71PZ2E5
S-100PK2E5B | U-100PZ2E5
S-100PK2E5B | U-100PZ2E8
Cassette inverter unit PACi Elite
and Standard, 4-way 60x60
• Refrigerant R32		S-36PY2E5B | U-36PZH2E5 Not supported
S-50PY2E5B | U-50PZH2E5
Cassette inverter unit PACi Elite
4-way 90x90 • Refrigerant R32		S-36PU2E5B | U-36PZH2E5Not supported
S-50PU2E5B | U-50PZH2E5
S-60PU2E5B | U-60PZH2E5
S-71PU2E5B | U-71PZH2E5
S-100PU2E5B | U-100PZH2E5
S-125PU2E5B | U-125PZH2E5
S-140PU2E5B | U-140PZH2E5
S-71PU2E5B | U-71PZH2E8
S-100PU2E5B | U-100PZH2E8
S-125PU2E5B | U-125PZH2E8
S-140PU2E5B | U-140PZH2E8
Cassette inverter unit PACi
Standard+, 4-way 90x90
• Refrigerant R32		S-60PU2E5B | U-60PZ2E5Not supported
S-71PU2E5B | U-71PZ2E5
S-100PU2E5B | U-100PZ2E5
S-125PU2E5B | U-125PZ2E5
S-140PU2E5B | U-140PZ2E5
S-100PU2E5B | U-100PZ2E8
S-125PU2E5B | U-125PZ2E8
S-140PU2E5B | U-140PZ2E8
Ceiling-mounted inverter unit PACi Elite +
• Refrigerant R32		S-36PT2E5B | U-36PZH2E5Not supported
S-50PT2E5B | U-50PZH2E5
S-60PT2E5B | U-60PZH2E5
S-71PT2E5B | U-71PZH2E5
S-100PT2E5B | U-100PZH2E5
S-125PT2E5B | U-125PZH2E5
S-140PT2E5B | U-140PZH2E5
S-71PT2E5B | U-71PZH2E8
S-100PT2E5B | U-100PZH2E8
S-125PT2E5B | U-125PZH2E8
S-140PT2E5B | U-140PZH2E8
Ceiling-mounted inverter unit PACi
Standard+ • Refrigerant R32		S-60PT2E5B | U-60PZ2E5Not supported
S-71PT2E5B | U-71PZ2E5
S-100PT2E5B | U-100PZ2E5
S-125PT2E5B | U-125PZ2E5
S-140PT2E5B | U-140PZ2E5
S-100PT2E5B | U-100PZ2E8
S-125PT2E5B | U-125PZ2E8
S-140PT2E5B | U-140PZ2E8
High
static-pressure concealed ducted inverter unit
PACi Elite+ • Refrigerant R32		S-36PF1E5B | U-36PZH2E5Not supported
S-50PF1E5B | U-50PZH2E5
S-60PF1E5B | U-60PZH2E5
S-71PF1E5B | U-71PZH2E5
S-100PF1E5B | U-100PZH2E5
S-125PF1E5B | U-125PZH2E5
S-140PF1E5B | U-140PZH2E5
S-71PF1E5B | U-71PZH2E8
S-100PF1E5B | U-100PZH2E8
S-125PF1E5B | U-125PZH2E8
S-140PF1E5B | U-140PZH2E8
High
static-pressure concealed ducted inverter unit
PACi Standart+ • Refrigerant R32		S-60PF1E5B | U-60PZ2E5Not supported
S-71PF1E5B | U-71PZ2E5
S-100PF1E5B | U-100PZ2E5
S-125PF1E5B | U-125PZ2E5
S-140PF1E5B | U-140PZ2E5
S-100PF1E5B | U-100PZ2E8
S-125PF1E5B | U-125PZ2E8
S-140PF1E5B | U-140PZ2E8
Low
static-pressure concealed ducted inverter unit
PACi Elite+ • Refrigerant R32		S-36PN1E5B | U-36PZH2E5Not supported
S-50PN1E5B | U-50PZH2E5
S-60PN1E5B | U-60PZH2E5
S-71PN1E5B | U-71PZH2E5
S-100PN1E5B | U-100PZH2E5
S-125PN1E5B | U-125PZH2E5
S-140PN1E5B | U-140PZH2E5
S-71PN1E5B | U-71PZH2E8
S-100PN1E5B | U-100PZH2E8
S-125PN1E5B | U-125PZH2E8
S-140PN1E5B | U-140PZH2E8
Low
static-pressure concealed ducted inverter unit
PACi Standart+ • Refrigerant R32		S-60PN1E5B | U-60PZ2E5Not supported
S-71PN1E5B | U-71PZ2E5
S-100PN1E5B | U-100PZ2E5
S-125PN1E5B | U-125PZ2E5
S-140PN1E5B | U-140PZ2E5
S-100PN1E8B | U-100PZ2E8
S-125PN1E8B | U-125PZ2E8
S-140PN1E8B | U-140PZ2E8
High
static-pressure concealed ducted system
Big PACi inverter unit 20,00-25,00 kW
• Refrigerant R32		S-200PE3E5B | U-200PZH2E8Not supported
S-250PE3E5B | U-250PZH2E8
Multi-zone systems (outdoor units)
High-efficiency mini ECOi LE2 series systems from 4 to 6 HP · R410AU-4LE2E5Not supported
U-5LE2E5
U-6LE2E5
U-4LE2E8
U-5LE2E8
U-6LE2E8
High-efficiency mini ECOi LE1 series systems, 8 and 10 HP · R410AU-8LE1E8 Not supported
U-10LE1E8
2-pipe systems ECOi EX series ME2U-8ME2E8Not supported
U-10ME2E8
U-12ME2E8
U-14ME2E8
U-16ME2E8
U-18ME2E8
U-20ME2E8
Three-pipe system ECOi EX series MF3U-8MF3E8Not supported
U-10MF3E8
U-12MF3E8
U-14MF3E8
U-16MF3E8
2-pipe systems ECO G series GE3U-16GE3E5Not supported
U-20GE3E5
U-25GE3E5
U-30GE3E5
2-pipe systems ECO G HIGH POWERU-16GEP2E5Not supported
U-20GEP2E5
U-25GEP2E5
3-pipe systems ECO G series GF3U-16GF3E5Not supported
U-20GF3E5
U-25GF3E5
2-pipe hybrid systems GHP/EHPU-20GES3E5 Not supported
U-10MES2E8
Multi-zone systems (indoor units)
4-way cassette type U2 90x90 · R32 / R410AS-22MU2E5BNot supported
S-28MU2E5B
S-36MU2E5B
S-45MU2E5B
S-56MU2E5B
S-60MU2E5B
S-73MU2E5B
S-90MU2E5B
S-106MU2E5B
S-140MU2E5B
S-160MU2E5B
4-way cassette type Y3 60x60 · R32 / R410AS-15MY2E5ANot supported
S-22MY2E5A
S-28MY2E5A
S-36MY2E5A
S-45MY2E5A
S-56MY2E5A
2-way cassette type L1 · R410AS-22ML1E5Not supported
S-28ML1E5
S-36ML1E5
S-45ML1E5
S-56ML1E5
S-73ML1E5
1-way cassette type D1 · R410AS-28MD1E5Not supported
S-36MD1E5
S-45MD1E5
S-56MD1E5
S-73MD1E5
New adaptive variable static-pressure duct
type F3 · R32 / R410A		S-15MF3E5BNot supported
S-22MF3E5B
S-28MF3E5B
S-36MF3E5B
S-45MF3E5B
S-56MF3E5B
S-60MF3E5B
S-73MF3E5B
S-90MF3E5B
S-106MF3E5B
S-140MF3E5B
S-160MF3E5B
S-15MF3E5A
S-22MF3E5A
S-28MF3E5A
S-36MF3E5A
S-45MF3E5A
S-56MF3E5A
S-60MF3E5A
S-73MF3E5A
S-90MF3E5A
S-106MF3E5A
S-140MF3E5A
S-160MF3E5A
Compact variable static-pressure ducted unit type M1
· R32 / R410A		S-15MM1E5ANot supported
S-22MM1E5A
S-28MM1E5A
S-36MM1E5A
S-45MM1E5A
S-56MM1E5A
Slim low static-pressure ducted units series 20 type MZS-22MZ1H4ANot supported
S-28MZ1H4A
S-36MZ1H4A
S-45MZ1H4A
S-56MZ1H4A
S-60MZ1H4A
S-73MZ1H4A
Floor-standing console type G1S-22MG1E5ANot supported
S-28MG1E5A
S-36MG1E5A
S-45MG1E5A
S-56MG1E5A
High static-pressure ducted unit type E2 · R410AS-224ME2E5Not supported
S-280ME2E5
S-224ME2E5
S-280ME2E5
Ceiling-mounted units type T2 · R410AS-36MT2E5ANot supported
S-45MT2E5A
S-56MT2E5A
S-73MT2E5A
S-106MT2E5A
S-140MT2E5A
Wall-mounted units type K2 · R32 / R410AS-15MK2E5ANot supported
S-22MK2E5A
S-28MK2E5
S-36MK2E5
S-45MK2E5A
S-56MK2E5A
S-73MK2E5A
S-106MK2E5A
Floor-standing units type P1 · R410AS-22MP1E5Not supported
S-28MP1E5
S-36MP1E5
S-45MP1E5
S-56MP1E5
S-71MP1E5
Floor-standing units type R1 for concealed installation · R410AS-22MR1E5Not supported
S-28MR1E5
S-36MR1E5
S-45MR1E5
S-56MR1E5
S-71MR1E5

2021

2.4 Air conditioners: 2021

Copied.


Air-conditioning seriesModelGateway
Light-commercial systems
Wall-mounted Professional Inverter -20 °C • R32CS-Z25TKEA | CU-Z25TKEAModbus: PN-1-MB-B
CS-Z35TKEA | CU-Z35TKEA
CS-Z42TKEA | CU-Z42TKEA
CS-Z50TKEA | CU-Z50TKEA
CS-Z71TKEA | CU-Z71TKEA
Wall-mounted inverter unit
PACi Elite • Refrigerant R32		S-36PK2E5B | U-36PZH2E5Not supported
S-50PK2E5B | U-50PZH2E5
S-60PK2E5B | U-60PZH2E5
S-71PK2E5B | U-71PZH2E5
S-100PK2E5B | U-100PZH2E5
S-71PK2E5B | U-71PZH2E8
S-100PK2E5B | U-100PZH2E8
Wall-mounted inverter unit
PACi Standard+ • Refrigerant R32		S-60PK2E5B | U-60PZ2E5Not supported
S-71PK2E5B | U-71PZ2E5
S-100PK2E5B | U-100PZ2E5
S-100PK2E5B | U-100PZ2E8
Cassette inverter unit PACi Elite
and Standard, 4-way 60x60
• Refrigerant R32		S-36PY2E5B | U-36PZH2E5 Not supported
S-50PY2E5B | U-50PZH2E5
Cassette inverter unit PACi Elite
4-way 90x90 • Refrigerant R32		S-36PU2E5B | U-36PZH2E5Not supported
S-50PU2E5B | U-50PZH2E5
S-60PU2E5B | U-60PZH2E5
S-71PU2E5B | U-71PZH2E5
S-100PU2E5B | U-100PZH2E5
S-125PU2E5B | U-125PZH2E5
S-140PU2E5B | U-140PZH2E5
S-71PU2E5B | U-71PZH2E8
S-100PU2E5B | U-100PZH2E8
S-125PU2E5B | U-125PZH2E8
S-140PU2E5B | U-140PZH2E8
Cassette inverter unit PACi
Standard+, 4-way 90x90
• Refrigerant R32		S-60PU2E5B | U-60PZ2E5Not supported
S-71PU2E5B | U-71PZ2E5
S-100PU2E5B | U-100PZ2E5
S-125PU2E5B | U-125PZ2E5
S-140PU2E5B | U-140PZ2E5
S-100PU2E5B | U-100PZ2E8
S-125PU2E5B | U-125PZ2E8
S-140PU2E5B | U-140PZ2E8
Ceiling-mounted inverter unit PACi Elite +
• Refrigerant R32		S-36PT2E5B | U-36PZH2E5Not supported
S-50PT2E5B | U-50PZH2E5
S-60PT2E5B | U-60PZH2E5
S-71PT2E5B | U-71PZH2E5
S-100PT2E5B | U-100PZH2E5
S-125PT2E5B | U-125PZH2E5
S-140PT2E5B | U-140PZH2E5
S-71PT2E5B | U-71PZH2E8
S-100PT2E5B | U-100PZH2E8
S-125PT2E5B | U-125PZH2E8
S-140PT2E5B | U-140PZH2E8
Ceiling-mounted inverter unit PACi
Standard+ • Refrigerant R32		S-60PT2E5B | U-60PZ2E5Not supported
S-71PT2E5B | U-71PZ2E5
S-100PT2E5B | U-100PZ2E5
S-125PT2E5B | U-125PZ2E5
S-140PT2E5B | U-140PZ2E5
S-100PT2E5B | U-100PZ2E8
S-125PT2E5B | U-125PZ2E8
S-140PT2E5B | U-140PZ2E8
High
static-pressure concealed ducted inverter unit
PACi Elite+ • Refrigerant R32		S-36PF1E5B | U-36PZH2E5Not supported
S-50PF1E5B | U-50PZH2E5
S-60PF1E5B | U-60PZH2E5
S-71PF1E5B | U-71PZH2E5
S-100PF1E5B | U-100PZH2E5
S-125PF1E5B | U-125PZH2E5
S-140PF1E5B | U-140PZH2E5
S-71PF1E5B | U-71PZH2E8
S-100PF1E5B | U-100PZH2E8
S-125PF1E5B | U-125PZH2E8
S-140PF1E5B | U-140PZH2E8
High
static-pressure concealed ducted inverter unit
PACi Standart+ • Refrigerant R32		S-60PF1E5B | U-60PZ2E5Not supported
S-71PF1E5B | U-71PZ2E5
S-100PF1E5B | U-100PZ2E5
S-125PF1E5B | U-125PZ2E5
S-140PF1E5B | U-140PZ2E5
S-100PF1E5B | U-100PZ2E8
S-125PF1E5B | U-125PZ2E8
S-140PF1E5B | U-140PZ2E8
Low
static-pressure concealed ducted inverter unit
PACi Elite+ • Refrigerant R32		S-36PN1E5B | U-36PZH2E5Not supported
S-50PN1E5B | U-50PZH2E5
S-60PN1E5B | U-60PZH2E5
S-71PN1E5B | U-71PZH2E5
S-100PN1E5B | U-100PZH2E5
S-125PN1E5B | U-125PZH2E5
S-140PN1E5B | U-140PZH2E5
S-71PN1E5B | U-71PZH2E8
S-100PN1E5B | U-100PZH2E8
S-125PN1E5B | U-125PZH2E8
S-140PN1E5B | U-140PZH2E8
Low
static-pressure concealed ducted inverter unit
PACi Standart+ • Refrigerant R32		S-60PN1E5B | U-60PZ2E5Not supported
S-71PN1E5B | U-71PZ2E5
S-100PN1E5B | U-100PZ2E5
S-125PN1E5B | U-125PZ2E5
S-140PN1E5B | U-140PZ2E5
S-100PN1E8B | U-100PZ2E8
S-125PN1E8B | U-125PZ2E8
S-140PN1E8B | U-140PZ2E8
High
static-pressure concealed ducted system
Big PACi inverter unit 20,00-25,00 kW
• Refrigerant R32		S-200PE3E5B | U-200PZH2E8Not supported
S-250PE3E5B | U-250PZH2E8
Multi-zone systems (outdoor units)
High-efficiency mini ECOi LE2 series systems from 4 to 6 HP · R410AU-4LE2E5Not supported
U-5LE2E5
U-6LE2E5
U-4LE2E8
U-5LE2E8
U-6LE2E8
High-efficiency mini ECOi LE1 series systems, 8 and 10 HP · R410AU-8LE1E8 Not supported
U-10LE1E8
2-pipe systems ECOi EX series ME2U-8ME2E8Not supported
U-10ME2E8
U-12ME2E8
U-14ME2E8
U-16ME2E8
U-18ME2E8
U-20ME2E8
Three-pipe system ECOi EX series MF3U-8MF3E8Not supported
U-10MF3E8
U-12MF3E8
U-14MF3E8
U-16MF3E8
2-pipe systems ECO G series GE3U-16GE3E5Not supported
U-20GE3E5
U-25GE3E5
U-30GE3E5
2-pipe systems ECO G HIGH POWERU-16GEP2E5Not supported
U-20GEP2E5
U-25GEP2E5
3-pipe systems ECO G series GF3U-16GF3E5Not supported
U-20GF3E5
U-25GF3E5
2-pipe hybrid systems GHP/EHPU-20GES3E5 Not supported
U-10MES2E8
Multi-zone systems (indoor units)
4-way cassette type U2 90x90 · R32 / R410AS-22MU2E5BNot supported
S-28MU2E5B
S-36MU2E5B
S-45MU2E5B
S-56MU2E5B
S-60MU2E5B
S-73MU2E5B
S-90MU2E5B
S-106MU2E5B
S-140MU2E5B
S-160MU2E5B
4-way cassette type Y2 60x60 · R32 / R410AS-15MY2E5ANot supported
S-22MY2E5A
S-28MY2E5A
S-36MY2E5A
S-45MY2E5A
S-56MY2E5A
2-way cassette type L1 · R410AS-22ML1E5Not supported
S-28ML1E5
S-36ML1E5
S-45ML1E5
S-56ML1E5
S-73ML1E5
1-way cassette type D1 · R410AS-28MD1E5Not supported
S-36MD1E5
S-45MD1E5
S-56MD1E5
S-73MD1E5
New adaptive variable static-pressure duct
type F2 · R32 / R410A		S-15MF2E5ANot supported
S-22MF2E5A
S-28MF2E5A
S-36MF2E5A
S-45MF2E5A
S-56MF2E5A
S-60MF2E5A
S-73MF2E5A
S-90MF2E5A
S-106MF2E5A
S-140MF2E5A
S-160MF2E5A
Compact variable static-pressure ducted unit type M1
· R32 / R410A		S-15MM1E5ANot supported
S-22MM1E5A
S-28MM1E5A
S-36MM1E5A
S-45MM1E5A
S-56MM1E5A
Slim low static-pressure ducted units series 20 type MZS-22MZ1H4ANot supported
S-28MZ1H4A
S-36MZ1H4A
S-45MZ1H4A
S-56MZ1H4A
S-60MZ1H4A
S-73MZ1H4A
Floor-standing console type G1S-22MG1E5ANot supported
S-28MG1E5A
S-36MG1E5A
S-45MG1E5A
S-56MG1E5A
High static-pressure ducted unit type E2 · R410AS-224ME2E5Not supported
S-280ME2E5
S-224ME2E5
S-280ME2E5
Ceiling-mounted units type T2 · R410AS-36MT2E5ANot supported
S-45MT2E5A
S-56MT2E5A
S-73MT2E5A
S-106MT2E5A
S-140MT2E5A
Wall-mounted units type K2 · R32 / R410AS-15MK2E5ANot supported
S-22MK2E5A
S-28MK2E5
S-36MK2E5
S-45MK2E5A
S-56MK2E5A
S-73MK2E5A
S-106MK2E5A
Floor-standing units type P1 · R410AS-22MP1E5Not supported
S-28MP1E5
S-36MP1E5
S-45MP1E5
S-56MP1E5
S-71MP1E5
Floor-standing units type R1 for concealed installation · R410AS-22MR1E5Not supported
S-28MR1E5
S-36MR1E5
S-45MR1E5
S-56MR1E5
S-71MR1E5

VENTALEN

+36 204 181 070

Brands

Partnership

About

Contact

Ventalen © 2026

All rights reserved

Website maintained by the Ventalen technical team
