| Connector | Gateway | |
| Modbus | Zigbee | |
|
Wi-Fi (S21)
Connector on the indoor-unit PCB |
DK-1-MB-B | DK-1-ZB-S |
|
P1 P2
Wired-controller terminals |
DK-5-MB-B | |

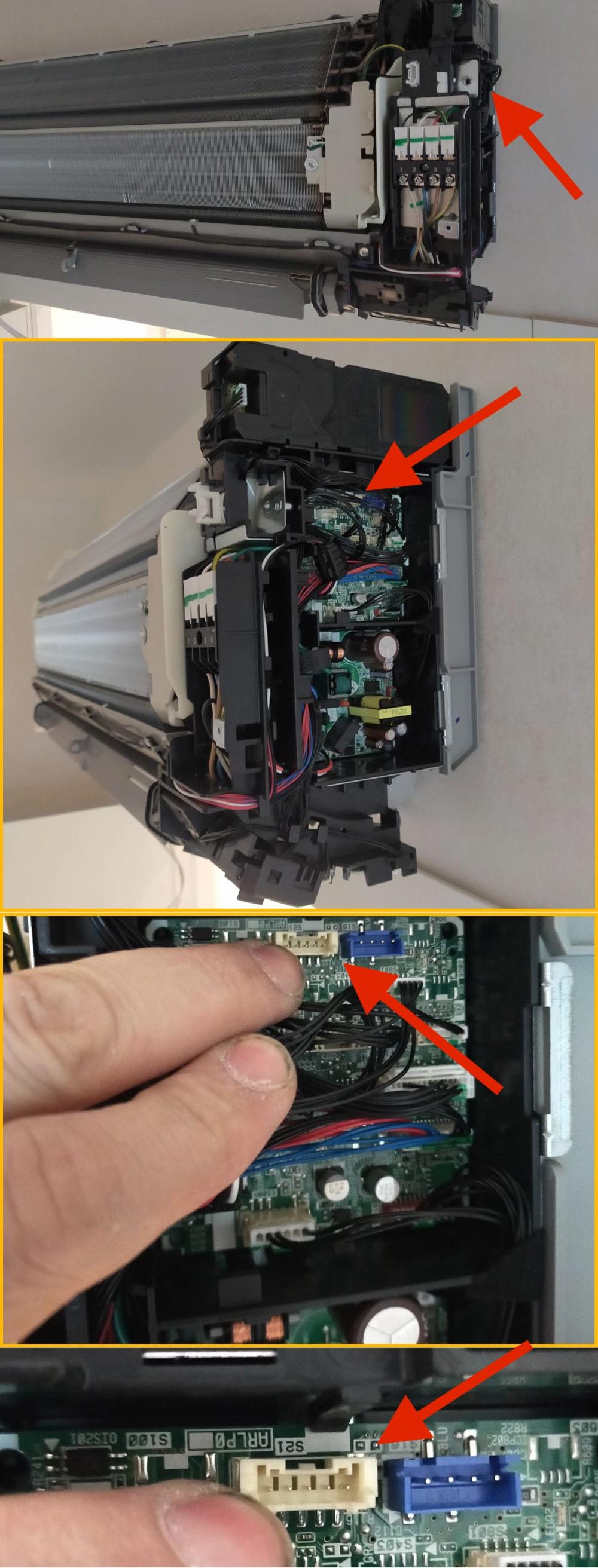

Connector example Wi-Fi (S21) for connecting a gateway to the DAIKIN air conditioner

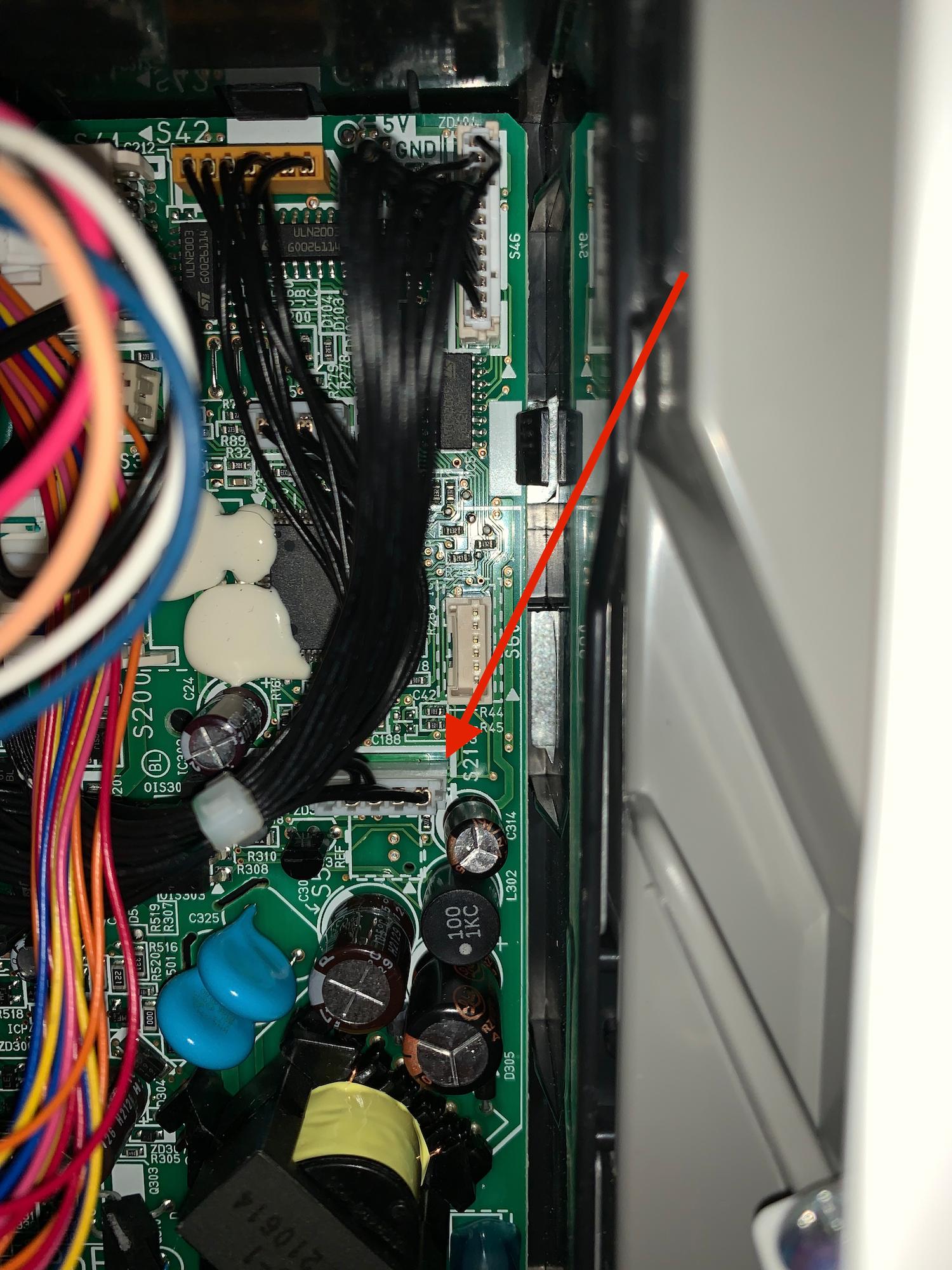

Connector example Wi-Fi (S21) for connecting a gateway to the DAIKIN air conditioner

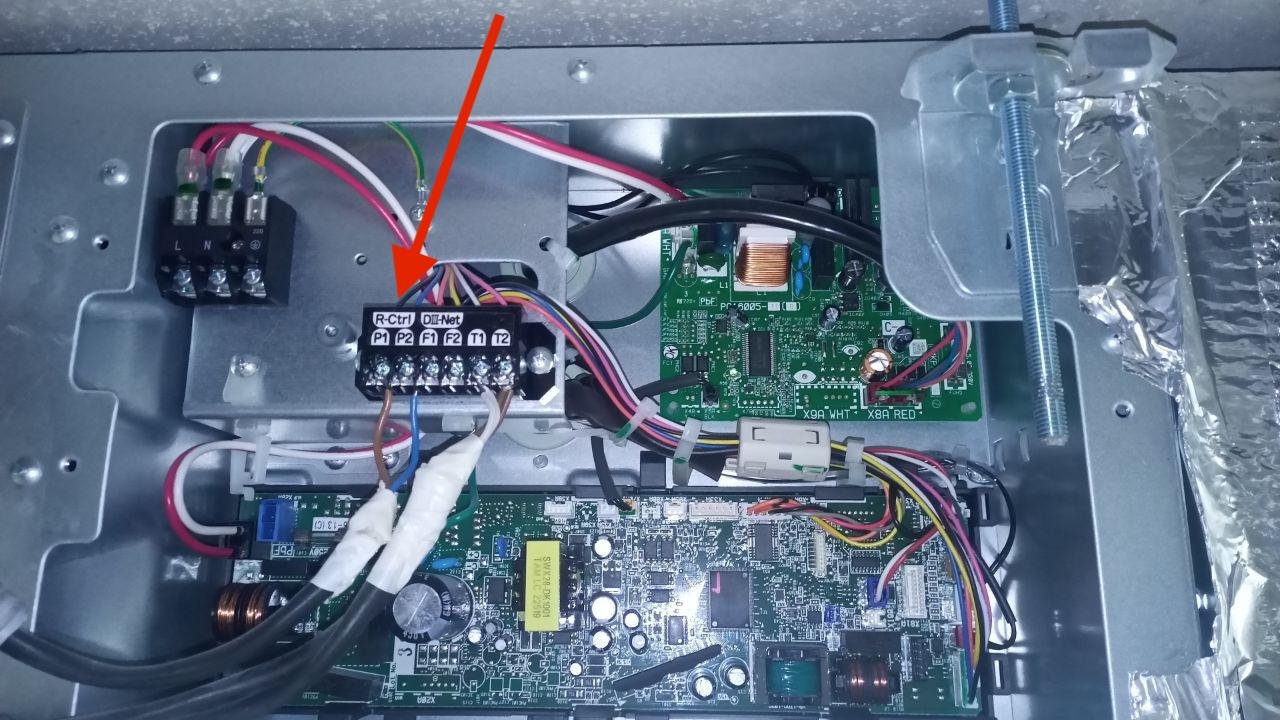

Connector example P1 P2 for connecting a gateway to the DAIKIN air conditioner

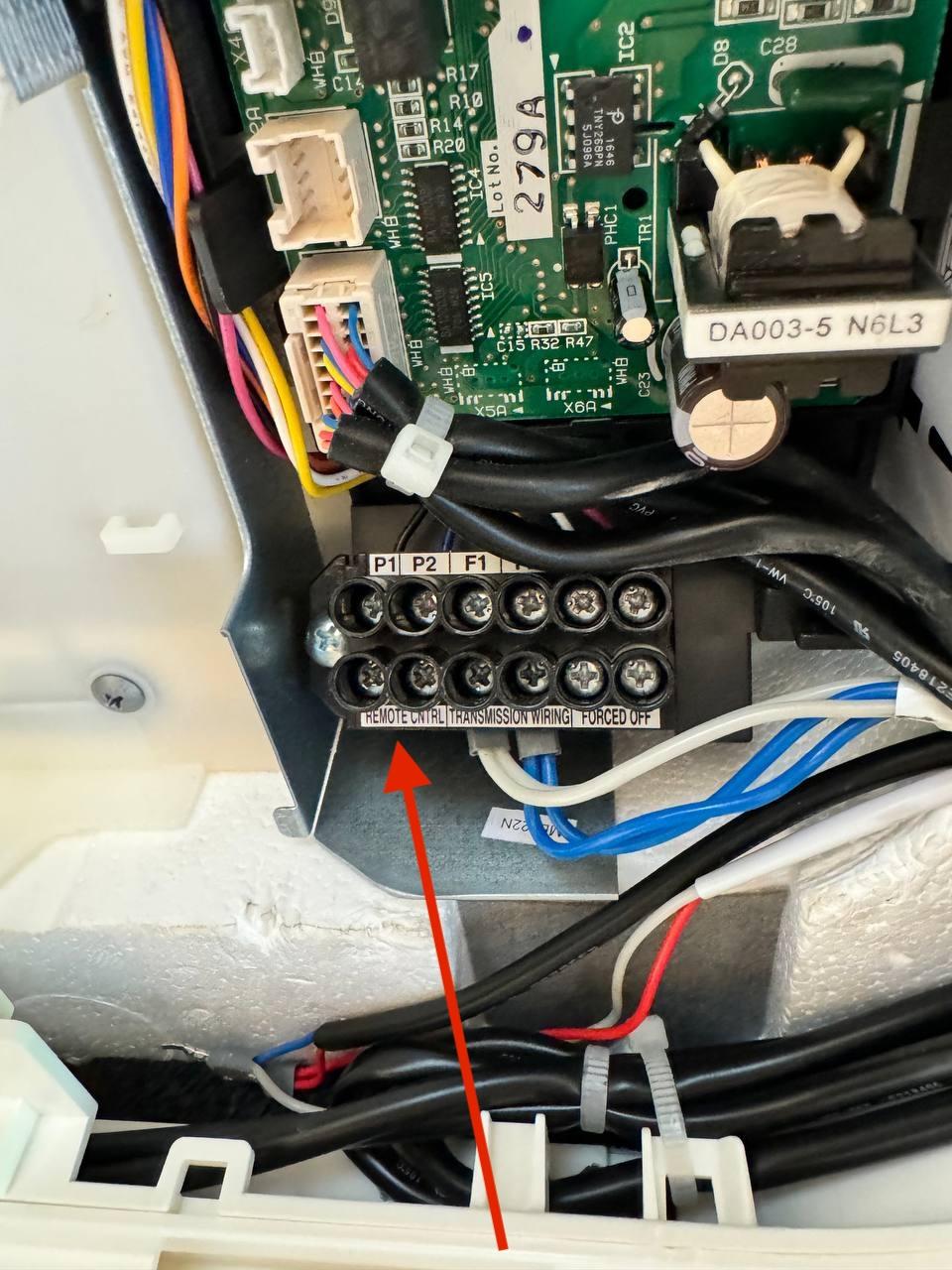

Connector example P1 P2 for connecting a gateway to the DAIKIN air conditioner

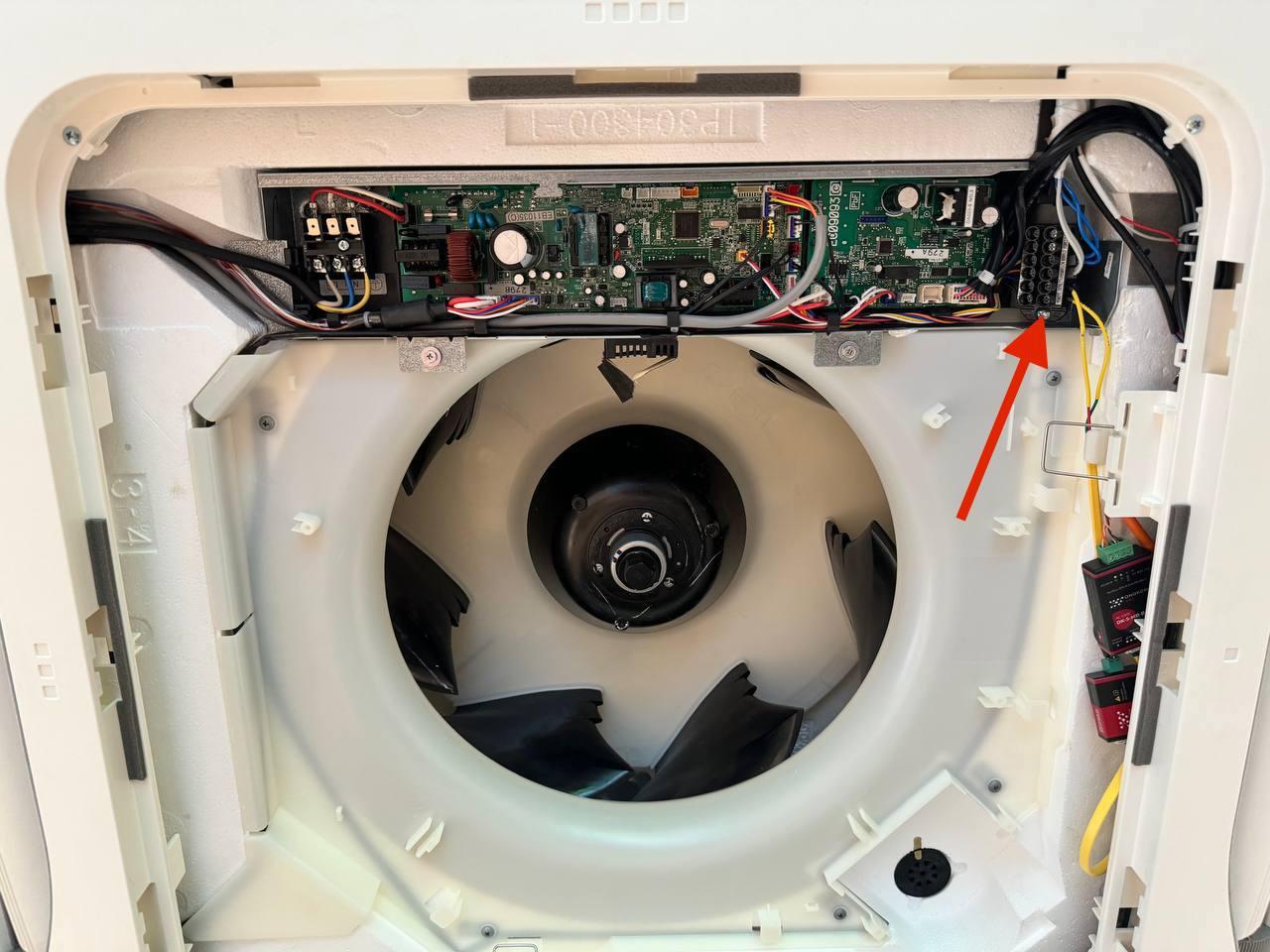

Connector example P1 P2 for connecting a gateway to the DAIKIN air conditioner

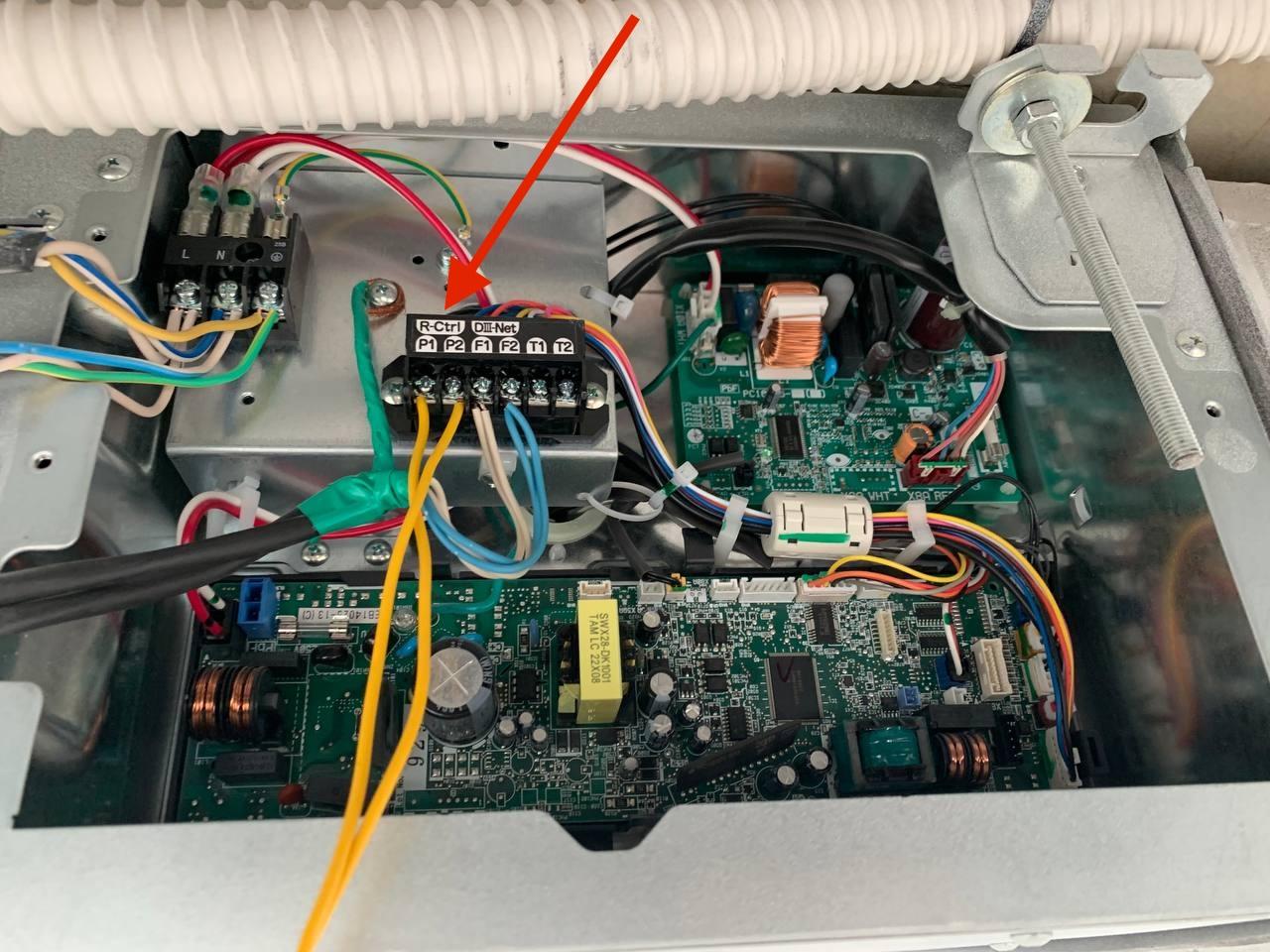

Connector example P1 P2 for connecting a gateway to the DAIKIN air conditioner
2024
|
Air-conditioning series |
Air-conditioning model | Gateway | Documentation |
| Air purifiers | |||
| Air purifiers with humidification | MCK55W | Not supported | Documentation |
| MCK70YV | |||
| Air purifier | MC55W | Not supported | |
| Split systems | |||
| Wall-mounted units Ururu Sarara (FTXZ-N/RXZ-N) | FTXZ25N | RXZ25N | DK-1-MB-B | Documentation |
| FTXZ35N | RXZ35N | |||
| FTXZ50N | RXZ50N | |||
| Wall-mounted units Emura (FTXJ-A/RXJ-A) | FTXJ20AW/S/B | RXJ20A | DK-1-MB-B | Documentation |
| FTXJ25AW/S/B | RXJ25A | |||
| FTXJ35AW/S/B | RXJ35A | |||
| FTXJ42AW/S/B | RXJ42A | |||
| FTXJ50AW/S/B | RXJ50A | |||
| Wall-mounted units Perfera (FTXM-R/RXM-R(9) CTXM-R) | CTXM15R | MXM-A | DK-1-MB-B | Documentation |
| FTXM20R | RXM20R9 | |||
| FTXM25R | RXM25R9 | |||
| FTXM35R | RXM35R9 | |||
| FTXM42R | RXM42R | |||
| FTXM50R | RXM50R | |||
| FTXM60R | RXM60R | |||
| FTXM71R | RXM71R | |||
| Wall-mounted units Sensira (FTXF-E/RXF-E) | FTXF20E | RXF20E | DK-1-MB-B | Documentation |
| FTXF25E | RXF25E | |||
| FTXF35E | RXF35E | |||
| FTXF42E | RFX42E | |||
| Wall-mounted units Sensira (FTXF-D/RXF-D) | FTXF20D | RXF20D | DK-1-MB-B | Documentation |
| FTXF25D | RXF25D | |||
| FTXF35D | RXF35D | |||
| FTXF42D | RFX42D | |||
| FTXF50D | RXF50D | |||
| FTXF60D | RXF60D | |||
| FTXF71D | RXF71D | |||
| Wall-mounted units Sensira (FTXF-C(A)/RXF-C(B,A)) | FTXF20C | RXF20C | DK-1-MB-B | Documentation |
| FTXF25C | RXF25C | |||
| FTXF35C | RXF35C | |||
| FTXF42C | RXF42C | |||
| FTXF50A | RXF50B | |||
| FTXF60A | RXF60B | |||
| FTXF71A | RXF71A | |||
| Floor-standing units Perfera (FVXM-A/RXM-R(9) CVXM-A) | CVXM20A | MXM-A | DK-1-MB-B | Documentation |
| FVXM25A | RXM25R9 | |||
| FVXM35A | RXM35R9 | |||
| FVXM50A | RXM50R | |||
| Low-static ducted units (FDXM-F9/RXM-R(9)) | FDXM25F9 | RXM25R9 | DK-5-MB-B | Documentation |
| FDXM35F9 | RXM35R9 | |||
| FDXM50F9 | RXM50R | |||
| FDXM60F9 | RXM60R | |||
| Split systems, series Sky Air (R-32) | |||
| Wall-mounted units Perfera (FTXM-R/RZAG-A) | FTXM35R | RZAG35A | DK-1-MB-B | Documentation |
| FTXM50R | RZAG50A | |||
| FTXM60R | RZAG60A | |||
| Wall-mounted units (FAA-B/RZAG-N) | FAA71B | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FAA100B | RZAG100NV1/NY1 | |||
| Wall-mounted units (FAA-B/RZASG-M) | FAA71B | RZASG71MV1 | DK-5-MB-B | Documentation |
| FAA100B | RZASG100MV1/MY1 | |||
| Low-static ducted units (FDXM-F9/RZAG-A) | FDXM35F9 | RZAG35A | DK-5-MB-B | Documentation |
| FDXM50F9 | RZAG50A | |||
| FDXM60F9 | RZAG60A | |||
| Medium-static ducted units (FBA-A9/RXM-R(9)) | FBA35A9 | RXM35R9 | DK-5-MB-B | Documentation |
| FBA50A9 | RXM50R | |||
| FBA60A9 | RXM60R | |||
| Medium-static ducted units (FBA-A(9)/RZAG-A(N)) | FBA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FBA50A9 | RZAG50A | |||
| FBA60A9 | RZAG60A | |||
| FBA71A9 | RZAG71NV1/NY1 | |||
| FBA100A | RZAG100NV1/NY1 | |||
| FBA125A | RZAG125NV1/NY1 | |||
| FBA140A | RZAG140NV1/NY1 | |||
| Medium-static ducted units (FBA-A(9)/RZASG-M) | FBA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FBA100A | RZASG100MV1/MY1 | |||
| FBA125A | RZASG125MV1/MY1 | |||
| FBA140A | RZASG140MV1/MY1 | |||
| High-static ducted units (FDA-A/RZAG-N) | FDA125A | RZAG125NV1 | DK-5-MB-B | Documentation |
| FDA125A | RZAG125NY1 | |||
| High-static ducted units (FDA-A/RZASG-M) | FDA125A | RZASG125MV1 | DK-5-MB-B | Documentation |
| FDA125A | RZASG125MY1 | |||
| High-static ducted units (FDA-A/RZA-D) | FDA200A | RZA200D | DK-5-MB-B | Documentation |
| FDA250A | RZA250D | |||
| Cassette units (FFA-A9/RXM-R(9)) | FFA25A9 | RXM25R9 | DK-5-MB-B | Documentation |
| FFA35A9 | RXM35R9 | |||
| FFA50A9 | RXM50R | |||
| FFA60A9 | RXM60R | |||
| Cassette units (FFA-A9/RZAG-A) | FFA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FFA50A9 | RZAG50A | |||
| FFA60A9 | RZAG60A | |||
| Cassette units (FCAG-B/RXM-R(9)) | FCAG35B | RXM35R9 | DK-5-MB-B | Documentation |
| FCAG50B | RXM50R | |||
| FCAG60B | RXM60R | |||
| Cassette units (FCAG-B/RZAG-A/N) | FCAG35B | RZAG35A | DK-5-MB-B | Documentation |
| FCAG50B | RZAG50A | |||
| FCAG60B | RZAG60A | |||
| FCAG71B | RZAG71NV1/NY1 | |||
| FCAG100B | RZAG100NV1/NY1 | |||
| FCAG125B | RZAG125NV1/NY1 | |||
| FCAG140B | RZAG140NV1/NY1 | |||
| Cassette units (FCAG-B/RZASG-M) | FCAG71B | RZASG71MV1 | DK-5-MB-B | Documentation |
| FCAG100B | RZASG100MV1/MY1 | |||
| FCAG125B | RZASG125MV1/MY1 | |||
| FCAG140B | RZASG140MV1/MY1 | |||
| Cassette units (FCAHG-H/RZAG-N) | FCAHG71H | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZAG100NV1/NY1 | |||
| FCAHG125H | RZAG125NV1/NY1 | |||
| FCAHG140H | RZAG140NV1/NY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZAG-N) | FUA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FUA100A | RZAG100NV1/NY1 | |||
| FUA125A | RZAG125NV1/NY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZASG-M) | FUA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FUA100A | RZASG100MV1/MY1 | |||
| FUA125A | RZASG125MV1/MY1 | |||
| One-way ceiling-suspended units (FHA-A9/RXM-R(9)) | FHA35A9 | RXM35R9 | DK-5-MB-B | Documentation |
| FHA50A9 | RXM50R | |||
| FHA60A9 | RXM60R | |||
| One-way ceiling-suspended units (FHA-A(9)/RZAG-A(N)) | FHA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FHA50A9 | RZAG50A | |||
| FHA60A9 | RZAG60A | |||
| FHA71A9 | RZAG71NV1/ NY1 | |||
| FHA100A | RZAG100NV1/ NY1 | |||
| FHA125A | RZAG125NV1/ NY1 | |||
| FHA140A | RZAG140NV1/ NY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZASG-M) | FHA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FHA100A | RZASG100MV1/MY1 | |||
| FHA125A | RZASG125MV1/MY1 | |||
| FHA140A | RZASG140MV1/MY1 | |||
| Concealed floor-standing units (FNA-A9/RXM-R(9)) | FNA25A9 | RXM25R9 | DK-5-MB-B | Documentation |
| FNA35A9 | RXM35R9 | |||
| FNA50A9 | RXM50R | |||
| FNA60A9 | RXM60R | |||
| Concealed floor-standing units (FNA-A9/RZAG-A) | FNA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FNA50A9 | RZAG50A | |||
| FNA60A9 | RZAG60A | |||
| Column units (FVA-A/RZAG-N) | FVA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FVA100A | RZAG100NV1/NY1 | |||
| FVA125A | RZAG125NV1/NY1 | |||
| FVA140A | RZAG140NV1/NY1 | |||
| Column units (FVA-A/RZASG-M) | FVA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FVA100A | RZASG100MV1/MY1 | |||
| FVA125A | RZASG125MV1/MY1 | |||
| FVA140A | RZASG140MV1/MY1 | |||
| Split systems, series Sky Air (R-410A) | |||
| Wall-mounted units (FAA-B/RR-B, FAA-B/RQ-B) | FAA71B | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FAA100B | RQ100BV3/W1 | |||
| FAA71B | RR71BV3/W1 | |||
| FAA100B | RR100BV3/W1 | |||
| Medium-static ducted units (FBA- A(9)/RR-B, FBA- A(9)/RQ-B) | FBA71A9 | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FBA100A | RQ100BV3/W1 | |||
| FBA125A | RQ125BW1 | |||
| FBA71 A9 | RR71BV3/W1 | |||
| FBA100A | RR100BV3/W1 | |||
| FBA125A | RR125BW1 | |||
| High-static ducted units (FDA-A/RR-B, FDA-A/RQ-B) | FDA125A | RQ125BW1 | DK-5-MB-B | Documentation |
| FDA125A | RR125BW1 | |||
| Cassette units (FCAG-B/RR-B, FCAG-B/RQ-B) | FCAG71B | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FCAG100B | RQ100BV3/W1 | |||
| FCAG125B | RQ125BW1 | |||
| FCAG71B | RR71BV3/W1 | |||
| FCAG100B | RR100BV3/W1 | |||
| FCAG125B | RR125BW1 | |||
| Four-way ceiling-suspended units (FUA-A/RR-B, FUA-A/RQ-B) | FUA71A | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FUA100A | RQ100BV3/W1 | |||
| FUA125A | RQ125BW1 | |||
| FUA71A | RR71BV3/W1 | |||
| FUA100A | RR100BV3/W1 | |||
| FUA125A | RR125BW1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RR-B, FHA-A(9)/RQ-B) | FHA71A9 | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FHA100A | RQ100BV3/W1 | |||
| FHA125A | RQ125BW1 | |||
| FHA71A9 | RR71BV3/W1 | |||
| FHA100A | RR100BV3/W1 | |||
| FHA125A | RR125BW1 | |||
| Multi-split systems | |||
| Wall-mounted units (FTXP-N) | FTXP20N | DK-1-MB-B | Documentation |
| FTXP25N | |||
| FTXP35N | |||
| Wall-mounted units (FTXF-B(A)(E)) | FTXF20B | DK-1-MB-B | Documentation |
| FTXF25B | |||
| FTXF35A | |||
| FTXF20E | DK-1-MB-B | ||
| FTXF25E | |||
| FTXF35E | |||
| FTXF42E | |||
| Wall-mounted units (FTXJ-MW(MS)) | FTXJ20MW | DK-1-MB-B | Documentation |
| FTXJ25MW | |||
| FTXJ35MW | |||
| FTXJ50MW | |||
| Multi-split outdoor units | |||
| Outdoor units | | 2MXM40A | Not supported | Documentation |
| | 2MXM50A | |||
| | 2MXM68A | |||
| | 3MXM40A | |||
| | 3MXM52A | |||
| | 3MXM68A | |||
| | 4MXM68A | |||
| | 4MXM80A | |||
| | 5MXM90A | |||
| | 2MXF40A | |||
| | 2MXF50A | |||
| | 3MXF52A(9) | |||
| | RXYSCQ4TV1 | |||
| | RXYSCQ5TV1 | |||
| | RXYSCQ6TV1 | |||
| | RXYSQ4T8V/Y | |||
| | RXYSQ5T8V/Y | |||
| | RXYSQ6T8V/Y | |||
| | RXYSQ8TY1 | |||
| | RXYSQ10TY1 | |||
| | RXYSQ12TY1 | |||
| Indoor units VRV IV | |||
| Round-flow cassette units (FXFQ-B) | FXFQ20B | DK-5-MB-B | Documentation |
| FXFQ25B | |||
| FXFQ32B | |||
| FXFQ40B | |||
| FXFQ50B | |||
| FXFQ63B | |||
| FXFQ80B | |||
| FXFQ100B | |||
| FXFQ125B | |||
| Four-way cassette units (600x600) (FXZQ-A) | FXZQ15A | DK-5-MB-B | Documentation |
| FXZQ20A | |||
| FXZQ25A | |||
| FXZQ32A | |||
| FXZQ40A | |||
| FXZQ50A | |||
| Two-way cassette units (FXCQ-A) | FXCQ20A | DK-5-MB-B | Documentation |
| FXCQ25A | |||
| FXCQ32A | |||
| FXCQ40A | |||
| FXCQ50A | |||
| FXCQ63A | |||
| FXCQ80A | |||
| FXCQ125A | |||
| One-way cassette units (FXKQ-M) | FXKQ25M | DK-5-MB-B | Documentation |
| FXKQ32M | |||
| FXKQ40M | |||
| FXKQ63M | |||
| Slim ducted units (FXDQ-A3) | FXDQ15A3 | DK-5-MB-B | Documentation |
| FXDQ20A3 | |||
| FXDQ25A3 | |||
| FXDQ32A3 | |||
| FXDQ40A3 | |||
| FXDQ50A3 | |||
| FXDQ63A3 | |||
| Medium-static ducted units (FXSQ-A) | FXSQ15A | DK-5-MB-B | Documentation |
| FXSQ20A | |||
| FXSQ25A | |||
| FXSQ32A | |||
| FXSQ40A | |||
| FXSQ50A | |||
| FXSQ63A | |||
| FXSQ80A | |||
| FXSQ100A | |||
| FXSQ125A | |||
| FXSQ140A | |||
| High-static ducted units (FXMQ-P7) | FXMQ50P7 | DK-5-MB-B | Documentation |
| FXMQ63P7 | |||
| FXMQ80P7 | |||
| FXMQ100P7 | |||
| FXMQ125P7 | |||
| High-static ducted units (FXMQ-A) | FXMQ200A | DK-5-MB-B | Documentation |
| FXMQ250A | |||
| Wall-mounted units (FXAQ-A) | FXAQ15A | DK-5-MB-B | Documentation |
| FXAQ20A | |||
| FXAQ25A | |||
| FXAQ32A | |||
| FXAQ40A | |||
| FXAQ50A | |||
| FXAQ63A | |||
| One-way ceiling-suspended units (FXHQ-A) | FXHQ32A | DK-5-MB-B | Documentation |
| FXHQ63A | |||
| FXHQ100A | |||
| Four-way ceiling-suspended units (FXUQ-A) | FXUQ71A | DK-5-MB-B | Documentation |
| FXUQ100A | |||
| Floor-standing units (FXLQ-P) | FXLQ20P | DK-5-MB-B | Documentation |
| FXLQ25P | |||
| FXLQ32P | |||
| FXLQ40P | |||
| FXLQ50P | |||
| FXLQ63P | |||
| Concealed floor-standing units (FXNQ-A) | FXNQ20A | DK-5-MB-B | Documentation |
| FXNQ25A | |||
| FXNQ32A | |||
| FXNQ40A | |||
| FXNQ50A | |||
| FXNQ63A | |||
| Indoor units VRV 5 | |||
| Round-flow cassette units (FXFA-A) | FXFA20A | DK-5-MB-B | Documentation |
| FXFA25A | |||
| FXFA32A | |||
| FXFA40A | |||
| FXFA50A | |||
| FXFA63A | |||
| FXFA80A | |||
| FXFA100A | |||
| FXFA125A | |||
| Four-way cassette units (600x600) (FXZA-A) | FXZA15A | DK-5-MB-B | Documentation |
| FXZA20A | |||
| FXZA25A | |||
| FXZA32A | |||
| FXZA40A | |||
| FXZA50A | |||
| Slim ducted units (FXDA-A) | FXDA10A | DK-5-MB-B | Documentation |
| FXDA15A | |||
| FXDA20A | |||
| FXDA25A | |||
| FXDA32A | |||
| FXDA40A | |||
| FXDA50A | |||
| FXDA63A | |||
| Medium-static ducted units (FXSA-A) | FXSA15A | DK-5-MB-B | Documentation |
| FXSA20A | |||
| FXSA25A | |||
| FXSA32A | |||
| FXSA40A | |||
| FXSA50A | |||
| FXSA63A | |||
| FXSA80A | |||
| FXSA100A | |||
| FXSA125A | |||
| FXSA140A | |||
| High-static ducted units (FXMA-A) | FXMA50A | DK-5-MB-B | Documentation |
| FXMA63A | |||
| FXMA80A | |||
| FXMA100A | |||
| FXMA125A | |||
| FXMA200A | |||
| FXMA250A | |||
| Wall-mounted units (FXAA-A) | FXAA15A | DK-5-MB-B | Documentation |
| FXAA20A | |||
| FXAA25A | |||
| FXAA32A | |||
| FXAA40A | |||
| FXAA50A | |||
| FXAA63A | |||
| Ceiling-suspended units (FXHA-A) | FXHA32A | DK-5-MB-B | Documentation |
| FXHA50A | |||
| FXHA63A | |||
| FXHA100A | |||
| Four-way ceiling-suspended units (FXUA-A) | FXUA50A | DK-5-MB-B | Documentation |
| FXUA71A | |||
| FXUA100A | |||
2022
|
Air-conditioning series |
Air-conditioning model | Gateway | Documentation |
| Air purifiers | |||
| Air purifiers with humidification | MCK55W | Not supported | Documentation |
| MCK70YV | |||
| Air purifier | MC55W | Not supported | |
| Split systems | |||
| Wall-mounted units Emura (FTXJ-A/RXJ-A) | FTXJ20AW/S/B | RXJ20A | DK-1-MB-B | Documentation |
| FTXJ25AW/S/B | RXJ25A | |||
| FTXJ35AW/S/B | RXJ35A | |||
| FTXJ42AW/S/B | RXJ42A | |||
| FTXJ50AW/S/B | RXJ50A | |||
| Wall-mounted units Emura (FTXJ-MW(MS)/RXJ-M9(N)) | FTXJ20M-W/S | RXJ20M9 | DK-1-MB-B | Documentation |
| FTXJ25M-W/S | RXJ25M9 | |||
| FTXJ35M-W/S | RXJ35M9 | |||
| FTXJ50M-W/S | RXJ50N | |||
| Wall-mounted units Perfera (FTXM-R/RXM-R(9) CTXM-R) | CTXM15R | MXM-A | DK-1-MB-B | Documentation |
| FTXM20R | RXM20R9 | |||
| FTXM25R | RXM25R9 | |||
| FTXM35R | RXM35R9 | |||
| FTXM42R | RXM42R | |||
| FTXM50R | RXM50R | |||
| FTXM60R | RXM60R | |||
| FTXM71R | RXM71R | |||
| Wall-mounted units Comfora (FTXP-M(9)/RXP-M) | FTXP20M9 | RXP20M | DK-1-MB-B | Documentation |
| FTXP25M9 | RXP25M | |||
| FTXP35M9 | RXP35M | |||
| FTXP50M | RXP50M | |||
| FTXP60M | RXP60M | |||
| FTXP71M | RXP71M | |||
| Wall-mounted units Sensira (FTXF-C(A)/RXF-C(B,A)) | FTXF20C | RXF20C | DK-1-MB-B | Documentation |
| FTXF25C | RXF25C | |||
| FTXF35C | RXF35C | |||
| FTXF42C | RXF42C | |||
| FTXF50A | RXF50B | |||
| FTXF60A | RXF60B | |||
| FTXF71A | RXF71A | |||
| Wall-mounted units Sensira (FTXF-D/RXF-D) | FTXF20D | RXF20D | DK-1-MB-B | Documentation |
| FTXF25D | RXF25D | |||
| FTXF35D | RXF35D | |||
| FTXF42D | RFX42D | |||
| FTXF50D | RXF50D | |||
| FTXF60D | RXF60D | |||
| FTXF71D | RXF71D | |||
| Wall-mounted units (FTYN-L/RYN-L) | FTYN20L | RYN20L | DK-1-MB-B | Documentation |
| FTYN25L | RYN25L | |||
| FTYN35L | RYN35L | |||
| FTYN50L | RYN50L | |||
| FTYN60L | RYN60L | |||
| Floor-standing units Perfera (FVXM-A/RXM-R(9) CVXM-A) | CVXM20A | MXM-A | DK-1-MB-B | Documentation |
| FVXM25A | RXM25R9 | |||
| FVXM35A | RXM35R9 | |||
| FVXM50A | RXM50R | |||
| Low-static ducted units (FDXM-F9/RXM-R(9)) | FDXM25F9 | RXM25R9 | DK-5-MB-B | Documentation |
| FDXM35F9 | RXM35R9 | |||
| FDXM50F9 | RXM50R | |||
| FDXM60F9 | RXM60R | |||
| Split systems, series Sky Air (R-32) | |||
| Wall-mounted units Perfera (FTXM-R/RZAG-A) | FTXM35R | RZAG35A | DK-1-MB-B | Documentation |
| FTXM50R | RZAG50A | |||
| FTXM60R | RZAG60A | |||
| Wall-mounted units (FAA-B/RZAG-N) | FAA71B | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FAA100B | RZAG100NV1/NY1 | |||
| Wall-mounted units (FAA-B/RZASG-M) | FAA71B | RZASG71MV1 | DK-5-MB-B | Documentation |
| FAA100B | RZASG100MV1/MY1 | |||
| Wall-mounted units (FAA-B/AZAS-M) | FAA71B | AZAS71MV1 | DK-5-MB-B | Documentation |
| FAA100B | AZAS100MV1/MY1 | |||
| Low-static ducted units (FDXM-F9/RZAG-A) | FDXM35F9 | RZAG35A | DK-5-MB-B | Documentation |
| FDXM50F9 | RZAG50A | |||
| FDXM60F9 | RZAG60A | |||
| Medium-static ducted units (FBA-A9/RXM-R(9)) | FBA35A9 | RXM35R9 | DK-5-MB-B | Documentation |
| FBA50A9 | RXM50R | |||
| FBA60A9 | RXM60R | |||
| Medium-static ducted units (FBA-A(9)/RZAG-A(N)) | FBA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FBA50A9 | RZAG50A | |||
| FBA60A9 | RZAG60A | |||
| FBA71A9 | RZAG71NV1/NY1 | |||
| FBA100A | RZAG100NV1/NY1 | |||
| FBA125A | RZAG125NV1/NY1 | |||
| FBA140A | RZAG140NV1/NY1 | |||
| Medium-static ducted units (FBA-A(9)/RZASG-M) | FBA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FBA100A | RZASG100MV1/MY1 | |||
| FBA125A | RZASG125MV1/MY1 | |||
| FBA140A | RZASG140MV1/MY1 | |||
| Medium-static ducted units (FBA-A(9)/AZAS-M) | FBA71A9 | AZAS71MV1 | DK-5-MB-B | Documentation |
| FBA100A | AZAS100MV1/MY1 | |||
| FBA125A | AZAS125MV1/MY1 | |||
| FBA140A | AZAS140MV1/MY1 | |||
| High-static ducted units (FDA-A/RZAG-N) | FDA125A | RZAG125NV1 | DK-5-MB-B | Documentation |
| FDA125A | RZAG125NY1 | |||
| High-static ducted units (FDA-A/RZASG-M) | FDA125A | RZASG125MV1 | DK-5-MB-B | Documentation |
| FDA125A | RZASG125MY1 | |||
| High-static ducted units (FDA-A/RZA-D) | FDA200A | RZA200D | DK-5-MB-B | Documentation |
| FDA250A | RZA250D | |||
| Cassette units (FFA-A9/RXM-R(9)) | FFA25A9 | RXM25R9 | DK-5-MB-B | Documentation |
| FFA35A9 | RXM35R9 | |||
| FFA50A9 | RXM50R | |||
| FFA60A9 | RXM60R | |||
| Cassette units (FFA-A9/RZAG-A) | FFA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FFA50A9 | RZAG50A | |||
| FFA60A9 | RZAG60A | |||
| Cassette units (FCAG-B/RXM-R(9)) | FCAG35B | RXM35R9 | DK-5-MB-B | Documentation |
| FCAG50B | RXM50R | |||
| FCAG60B | RXM60R | |||
| Cassette units (FCAG-B/RZAG-A/N) | FCAG35B | RZAG35A | DK-5-MB-B | Documentation |
| FCAG50B | RZAG50A | |||
| FCAG60B | RZAG60A | |||
| FCAG71B | RZAG71NV1/NY1 | |||
| FCAG100B | RZAG100NV1/NY1 | |||
| FCAG125B | RZAG125NV1/NY1 | |||
| FCAG140B | RZAG140NV1/NY1 | |||
| Cassette units (FCAG-B/RZASG-M) | FCAG71B | RZASG71MV1 | DK-5-MB-B | Documentation |
| FCAG100B | RZASG100MV1/MY1 | |||
| FCAG125B | RZASG125MV1/MY1 | |||
| FCAG140B | RZASG140MV1/MY1 | |||
| Cassette units (FCAG-B/AZAS-M) | FCAG71B | AZAS71MV1 | DK-5-MB-B | Documentation |
| FCAG100B | AZAS100MV1/MY1 | |||
| FCAG125B | AZAS125MV1/MY1 | |||
| FCAG140B | AZAS140MV1/MY1 | |||
| Cassette units (FCAHG-H/RZAG-N) | FCAHG71H | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZAG100NV1/NY1 | |||
| FCAHG125H | RZAG125NV1/NY1 | |||
| FCAHG140H | RZAG140NV1/NY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZAG-N) | FUA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FUA100A | RZAG100NV1/NY1 | |||
| FUA125A | RZAG125NV1/NY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZASG-M) | FUA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FUA100A | RZASG100MV1/MY1 | |||
| FUA125A | RZASG125MV1/MY1 | |||
| One-way ceiling-suspended units (FHA-A9/RXM-R(9)) | FHA35A9 | RXM35R9 | DK-5-MB-B | Documentation |
| FHA50A9 | RXM50R | |||
| FHA60A9 | RXM60R | |||
| One-way ceiling-suspended units (FHA-A(9)/RZAG-A(N)) | FHA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FHA50A9 | RZAG50A | |||
| FHA60A9 | RZAG60A | |||
| FHA71A9 | RZAG71NV1/NY1 | |||
| FHA100A | RZAG100NV1/NY1 | |||
| FHA125A | RZAG125NV1/NY1 | |||
| FHA140A | RZAG140NV1/NY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZASG-M) | FHA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FHA100A | RZASG100MV1/MY1 | |||
| FHA125A | RZASG125MV1/MY1 | |||
| FHA140A | RZASG140MV1/MY1 | |||
| Concealed floor-standing units (FNA-A9/RXM-R(9)) | FNA25A9 | RXM25R9 | DK-5-MB-B | Documentation |
| FNA35A9 | RXM35R9 | |||
| FNA50A9 | RXM50R | |||
| FNA60A9 | RXM60R | |||
| Concealed floor-standing units (FNA-A9/RZAG-A) | FNA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FNA50A9 | RZAG50A | |||
| FNA60A9 | RZAG60A | |||
| Column units (FVA-A/RZAG-N) | FVA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FVA100A | RZAG100NV1/NY1 | |||
| FVA125A | RZAG125NV1/NY1 | |||
| FVA140A | RZAG140NV1/NY1 | |||
| Column units (FVA-A/RZASG-M) | FVA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FVA100A | RZASG100MV1/MY1 | |||
| FVA125A | RZASG125MV1/MY1 | |||
| FVA140A | RZASG140MV1/MY1 | |||
| Split systems, series Sky Air (R-410A) | |||
| Wall-mounted units (FAA-B/RZQG-L) | FAA71B | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FAA100B | RZQG100L9V/L8Y | |||
| Wall-mounted units (FAA-B/RZQSG-L) | FAA71B | RZQSG71L3V | DK-5-MB-B | Documentation |
| FAA100B | RZQSG100L9V/L8Y | |||
| Wall-mounted units (FAA-B/RR-B, FAA-B/RQ-B) | FAA71B | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FAA100B | RQ100BV3/W1 | |||
| FAA71B | RR71BV3/W1 | |||
| FAA100B | RR100BV3/W1 | |||
| Medium-static ducted units (FBA-A(9)/RZQG-L) | FBA71A9 | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FBA100A | RZQG100L9V1/L8Y1 | |||
| FBA125A | RZQG125L9V1/L8Y1 | |||
| FBA140A | RZQG140L9V1/LY1 | |||
| Medium-static ducted units (FBA-A(9)/RZQSG-L) | FBA71A9 | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FBA100A | RZQSG100L9V1/L8Y1 | |||
| FBA125A | RZQSG125L9V1/L8Y1 | |||
| FBA140A | RZQSG140L9V1/LY1 | |||
| Medium-static ducted units (FBA-A(9)/RR-B, FBA-A(9)/RQ-B) | FBA71A9 | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FBA100A | RQ100BV3/W1 | |||
| FBA125A | RQ125BW1 | |||
| FBA71A9 | RR71BV3/W1 | |||
| FBA100A | RR100BV3/W1 | |||
| FBA125A | RR125BW1 | |||
| High-static ducted units (FDA-A/RZQG-L) | FDA125A | RZQG125L9V1 | DK-5-MB-B | Documentation |
| FDA125A | RZQG125L8Y1 | |||
| High-static ducted units (FDA-A/RZQSG-L) | FDA125A | RZQSG125L9V1 | DK-5-MB-B | Documentation |
| FDA125A | RZQSG125L8Y1 | |||
| High-static ducted units (FDA-A/RR-B, FDA-A/RQ-B) | FDA125A | RQ125BW1 | DK-5-MB-B | Documentation |
| FDA125A | RR125BW1 | |||
| Cassette units (FCAG-B/RZQG-L) | FCAG71B | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FCAG100B | RZQG100L9V1/L8Y1 | |||
| FCAG125B | RZQG125L9V1/L8Y1 | |||
| FCAG140B | RZQG140L9V1/LY1 | |||
| Cassette units (FCAG-B/RZQSG-L) | FCAG71B | RZQSG71L3V | DK-5-MB-B | Documentation |
| FCAG100B | RZQSG100L9V1/L8Y1 | |||
| FCAG125B | RZQSG125L9V1/L8Y1 | |||
| FCAG140B | RZQSG140L9V1/LY1 | |||
| Cassette units (FCAG-B/RR-B, FCAG-B/RQ-B) | FCAG71B | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FCAG100B | RQ100BV3/W1 | |||
| FCAG125B | RQ125BW1 | |||
| FCAG71B | RR71BV3/W1 | |||
| FCAG100B | RR100BV3/W1 | |||
| FCAG125B | RR125BW1 | |||
| Cassette units (FCAHG-H/RZQG-L) | FCAHG71H | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZQG100L9V1/L8Y1 | |||
| FCAHG125H | RZQG125L9V1/L8Y1 | |||
| FCAHG140H | RZQG140L9V1/LY1 | |||
| Cassette units (FCAHG-H/RZQSG-L) | FCAHG71H | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZQSG100L9V1/L8Y1 | |||
| FCAHG125H | RZQSG125L9V1/L8Y1 | |||
| FCAHG140H | RZQSG140L9V1/LY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZQG-L) | FUA71A | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FUA100A | RZQG100L9V1/L8Y1 | |||
| FUA125A | RZQG125L9V1/L8Y1 | |||
| Four-way ceiling-suspended units (FUA-A/RZQSG-L) | FUA71A | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FUA100A | RZQSG100L9V1/L8Y1 | |||
| FUA125A | RZQSG125L9V1/L8Y1 | |||
| Four-way ceiling-suspended units (FUA-A/RR-B, FUA-A/RQ-B) | FUA71A | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FUA100A | RQ100BV3/W1 | |||
| FUA125A | RQ125BW1 | |||
| FUA71A | RR71BV3/W1 | |||
| FUA100A | RR100BV3/W1 | |||
| FUA125A | RR125BW1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZQG-L) | FHA71A(9) | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FHA100A | RZQG100L9V1/L8Y1 | |||
| FHA125A | RZQG125L9V1/L8Y1 | |||
| FHA140A | RZQG140L9V1/LY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZQSG-L) | FHA71A(9) | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FHA100A | RZQSG100L9V1/L8Y1 | |||
| FHA125A | RZQSG125L9V1/L8Y1 | |||
| FHA140A | RZQSG140L9V1/LY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RR-B, FHA-A(9)/RQ-B) | FHA71A(9) | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FHA100A | RQ100BV3/W1 | |||
| FHA125A | RQ125BW1 | |||
| FHA71A(9) | RR71BV3/W1 | |||
| FHA100A | RR100BV3/W1 | |||
| FHA125A | RR125BW1 | |||
| Column units (FVA-A/RZQG-L) | FVA71A | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FVA100A | RZQG100L9V1/L8Y1 | |||
| FVA125A | RZQG125L9V1/L8Y1 | |||
| FVA140A | RZQG140L9V1/LY1 | |||
| Column units (FVA-A/RZQSG-L) | FVA71A | RZQSG125L9V1 | DK-5-MB-B | Documentation |
| FVA100A | RZQSG100L9V1/L8Y1 | |||
| FVA125A | RZQSG125L9V1/L8Y1 | |||
| FVA140A | RZQSG140L9V1/LY1 | |||
| Multi-split systems | |||
| Wall-mounted units (FTXF-B(A)) | FTXF20B | DK-1-MB-B | Documentation |
| FTXF25B | |||
| FTXF35A | |||
| Multi-split outdoor units | |||
| Outdoor units | | 2MXM40N9 | Not supported | Documentation |
| | 2MXM50N9 | |||
| | 2MXM68N | |||
| | 3MXM40N7 | |||
| | 3MXM52N7 | |||
| | 3MXM68N9 | |||
| | 4MXM68N9 | |||
| | 4MXM80N9 | |||
| | 5MXM90N9 | |||
| | 2MXF40A | |||
| | 2MXF50A | |||
| | 3MXF52A(9) | |||
| | 3MXF68A(9) | |||
| | RXYSCQ4TV1 | |||
| | RXYSCQ5TV1 | |||
| | RXYSCQ6TV1 | |||
| | RXYSQ4T8V/Y | |||
| | RXYSQ5T8V/Y | |||
| | RXYSQ6T8V/Y | |||
| | RXYSQ8TY1 | |||
| | RXYSQ10TY1 | |||
| | RXYSQ12TY1 | |||
2021
|
Air-conditioning series |
Air-conditioning model | Gateway | Documentation |
| Air purifiers | |||
| Air purifier | MC55W | Not supported | Documentation |
| Split systems | |||
| Wall-mounted units Emura (FTXJ-MW(MS)/RXJ-M(N)) | FTXJ20M-W/S | RXJ20M | DK-1-MB-B | Documentation |
| FTXJ25M-W/S | RXJ25M | |||
| FTXJ35M-W/S | RXJ35M | |||
| FTXJ50M-W/S | RXJ50N | |||
| Wall-mounted units Perfera (FTXM-R/RXM-R(9), CTXM-R) | CTXM15R | MXM-A | DK-1-MB-B | Documentation |
| FTXM20R | RXM20R9 | |||
| FTXM25R | RXM25R9 | |||
| FTXM35R | RXM35R9 | |||
| FTXM42R | RXM42R | |||
| FTXM50R | RXM50R | |||
| FTXM60R | RXM60R | |||
| FTXM71R | RXM71R | |||
| Wall-mounted units Comfora (FTXP-K3(L)/RXP-L) | FTXP20K3/L | RXP20L | DK-1-MB-B | Documentation |
| FTXP25K3/L | RXP25K3/L | |||
| FTXP35K3/L | RXP35L | |||
| Wall-mounted units Comfora (FTXP-M(9)/RXP-M) | FTXP20M9 | RXP20M | DK-1-MB-B | Documentation |
| FTXP25M9 | RXP25M | |||
| FTXP35M9 | RXP35M | |||
| FTXP50M | RXP50M | |||
| FTXP60M | RXP60M | |||
| FTXP71M | RXP71M | |||
| Wall-mounted units Sensira (FTXF-B(A)(E)) | FTXF20B | DK-1-MB-B | Documentation |
| FTXF25B | |||
| FTXF35A | |||
| FTXF50A | RXF50B | DK-1-MB-B | ||
| FTXF60A | RXF60B | |||
| FTXF71A | RXF71A | |||
| Wall-mounted units Sensira (FTXF-C/RXF-C, CTXF-C) | CTXF20C | MXF-A(9) | DK-1-MB-B | Documentation |
| CTXF25C | MXF-A(9) | |||
| CTXF35C | MXF-A(9) | |||
| FTXF20C | RXF20C | DK-1-MB-B | ||
| FTXF25C | RXF25C | |||
| FTXF35C | RXF35C | |||
| FTXF42C | RXF42C | |||
| Wall-mounted units (FTYN-L/RYN-L) | FTYN20L | RYN20L | DK-1-MB-B | Documentation |
| FTYN25L | RYN25L | |||
| FTYN35L | RYN35L | |||
| FTYN50L | RYN50L | |||
| FTYN60L | RYN60L | |||
| Floor-standing units Perfera (FVXM-A/RXM-R CVXM-A) | CVXM20A | MXM-A | DK-1-MB-B | Documentation |
| FVXM25A | RXM25R | |||
| FVXM35A | RXM35R | |||
| FVXM50A | RXM50R | |||
| Low-static ducted units (FDXM-F9/RXM-R(9)) | FDXM25F9 | RXM25R | DK-5-MB-B | Documentation |
| FDXM35F9 | RXM35R | |||
| FDXM50F9 | RXM50R | |||
| FDXM60F9 | RXM60R | |||
| Split systems, series Sky Air (R-32) | |||
| Wall-mounted units Perfera (FTXM-R/RZAG-A) | FTXM35R | RZAG35A | DK-1-MB-B | Documentation |
| FTXM50R | RZAG50A | |||
| FTXM60R | RZAG60A | |||
| Wall-mounted units (FAA-A/RZAG-N) | FAA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FAA100A | RZAG100NV1/NY1 | |||
| Wall-mounted units (FAA-A/RZASG-M) | FAA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FAA100A | RZASG100MV1/MY1 | |||
| Wall-mounted units (FAA-A/AZAS-M) | FAA71A | AZAS71MV1 | DK-5-MB-B | Documentation |
| FAA100A | AZAS100MV1/MY1 | |||
| Low-static ducted units (FDXM-F9/RZAG-A) | FDXM35F9 | RZAG35A | DK-5-MB-B | Documentation |
| FDXM50F9 | RZAG50A | |||
| FDXM60F9 | RZAG60A | |||
| Medium-static ducted units (FBA-A9/RXM-R) | FBA35A9 | RXM35R | DK-5-MB-B | Documentation |
| FBA50A9 | RXM50R | |||
| FBA60A9 | RXM60R | |||
| Medium-static ducted units (FBA-A(9)/RZAG-A(N)) | FBA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FBA50A9 | RZAG50A | |||
| FBA60A9 | RZAG60A | |||
| FBA71A9 | RZAG71NV1/NY1 | |||
| FBA100A | RZAG100NV1/NY1 | |||
| FBA125A | RZAG125NV1/NY1 | |||
| FBA140A | RZAG140NV1/NY1 | |||
| Medium-static ducted units (FBA-A(9)/RZASG-M) | FBA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FBA100A | RZASG100MV1/MY1 | |||
| FBA125A | RZASG125MV1/MY1 | |||
| FBA140A | RZASG140MV1/MY1 | |||
| Medium-static ducted units (FBA-A(9)/AZAS-M) | FBA71A9 | AZAS71MV1 | DK-5-MB-B | Documentation |
| FBA100A | AZAS100MV1/MY1 | |||
| FBA125A | AZAS125MV1/MY1 | |||
| FBA140A | AZAS140MV1/MY1 | |||
| High-static ducted units (FDA-A/RZAG-N) | FDA125A | RZAG125NV1 | DK-5-MB-B | Documentation |
| FDA125A | RZAG125NY1 | |||
| High-static ducted units (FDA-A/RZASG-M) | FDA125A | RZASG125MV1 | DK-5-MB-B | Documentation |
| FDA125A | RZASG125MY1 | |||
| High-static ducted units (FDA-A/RZA-D) | FDA200A | RZA200D | DK-5-MB-B | Documentation |
| FDA250A | RZA250D | |||
| Cassette units (FFA-A9/RXM-R) | FFA25A9 | RXM25R | DK-5-MB-B | Documentation |
| FFA35A9 | RXM35R | |||
| FFA50A9 | RXM50R | |||
| FFA60A9 | RXM60R | |||
| Cassette units (FFA-A9/RZAG-A) | FFA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FFA50A9 | RZAG50A | |||
| FFA60A9 | RZAG60A | |||
| Cassette units (FCAG-B/RXM-R) | FCAG35B | RXM35R | DK-5-MB-B | Documentation |
| FCAG50B | RXM50R | |||
| FCAG60B | RXM60R | |||
| Cassette units (FCAG-B/RZAG-A/N) | FCAG35B | RZAG35A | DK-5-MB-B | Documentation |
| FCAG50B | RZAG50A | |||
| FCAG60B | RZAG60A | |||
| FCAG71B | RZAG71NV1/NY1 | |||
| FCAG100B | RZAG100NV1/NY1 | |||
| FCAG125B | RZAG125NV1/NY1 | |||
| FCAG140B | RZAG140NV1/NY1 | |||
| Cassette units (FCAG-B/RZASG-M) | FCAG71B | RZASG71MV1 | DK-5-MB-B | Documentation |
| FCAG100B | RZASG100MV1/MY1 | |||
| FCAG125B | RZASG125MV1/MY1 | |||
| FCAG140B | RZASG140MV1/MY1 | |||
| Cassette units (FCAG-B/AZAS-M) | FCAG71B | AZAS71MV1 | DK-5-MB-B | Documentation |
| FCAG100B | AZAS100MV1/MY1 | |||
| FCAG125B | AZAS125MV1/MY1 | |||
| FCAG140B | AZAS140MV1/MY1 | |||
| Cassette units (FCAHG-H/RZAG-N) | FCAHG71H | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZAG100NV1/NY1 | |||
| FCAHG125H | RZAG125NV1/NY1 | |||
| FCAHG140H | RZAG140NV1/NY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZAG-N) | FUA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FUA100A | RZAG100NV1/NY1 | |||
| FUA125A | RZAG125NV1/NY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZASG-M) | FUA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FUA100A | RZASG100MV1/MY1 | |||
| FUA125A | RZASG125MV1/MY1 | |||
| One-way ceiling-suspended units (FHA-A9/RXM-R) | FHA35A9 | RXM35R | DK-5-MB-B | Documentation |
| FHA50A9 | RXM50R | |||
| FHA60A9 | RXM60R | |||
| One-way ceiling-suspended units (FHA-A(9)/RZAG-A(N)) | FHA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FHA50A9 | RZAG50A | |||
| FHA60A9 | RZAG60A | |||
| FHA71A9 | RZAG71NV1/NY1 | |||
| FHA100A | RZAG100NV1/NY1 | |||
| FHA125A | RZAG125NV1/NY1 | |||
| FHA140A | RZAG140NV1/NY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZASG-M) | FHA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FHA100A | RZASG100MV1/MY1 | |||
| FHA125A | RZASG125MV1/MY1 | |||
| FHA140A | RZASG140MV1/MY1 | |||
| Concealed floor-standing units (FNA-A9/RXM-R) | FNA25A9 | RXM25R | DK-5-MB-B | Documentation |
| FNA35A9 | RXM35R | |||
| FNA50A9 | RXM50R | |||
| FNA60A9 | RXM60R | |||
| Concealed floor-standing units (FNA-A9/RZAG-A) | FNA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FNA50A9 | RZAG50A | |||
| FNA60A9 | RZAG60A | |||
| Column units (FVA-A/RZAG-N) | FVA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FVA100A | RZAG100NV1/NY1 | |||
| FVA125A | RZAG125NV1/NY1 | |||
| FVA140A | RZAG140NV1/NY1 | |||
| Column units (FVA-A/RZASG-M) | FVA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FVA100A | RZASG100MV1/MY1 | |||
| FVA125A | RZASG125MV1/MY1 | |||
| FVA140A | RZASG140MV1/MY1 | |||
| Split systems, series Sky Air (R-410A) | |||
| Wall-mounted units (FAA-A/RZQG-L) | FAA71A | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FAA100A | RZQG100L9V1/L8Y1 | |||
| Wall-mounted units (FAA-A/RZQSG-L) | FAA71A | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FAA100A | RZQSG100L9V1/L8Y1 | |||
| Wall-mounted units (FAA-A/RR-B, FAA-A/RQ-B) | FAA71A | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FAA100A | RQ100BV3/W1 | |||
| FAA71A | RR71BV3/W1 | |||
| FAA100A | RR100BV3/W1 | |||
| Medium-static ducted units (FBA-A(9)/RZQG-L) | FBA71A9 | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FBA100A | RZQG100L9V1/L8Y1 | |||
| FBA125A | RZQG125L9V1/L8Y1 | |||
| FBA140A | RZQG140L9V1/LY1 | |||
| Medium-static ducted units (FBA-A(9)/RZQSG-L) | FBA71A9 | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FBA100A | RZQSG100L9V1/L8Y1 | |||
| FBA125A | RZQSG125L9V1/L8Y1 | |||
| FBA140A | RZQSG140L9V1/LY1 | |||
| Medium-static ducted units (FBA-A(9)/RR-B, FBA-A(9)/RQ-B) | FBA71A9 | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FBA100A | RQ100BV3/W1 | |||
| FBA125A | RQ125BW1 | |||
| FBA71A9 | RR71BV3/W1 | |||
| FBA100A | RR100BV3/W1 | |||
| FBA125A | RR125BW1 | |||
| High-static ducted units (FDA-A/RZQG-L) | FDA125A | RZQG125L9V1 | DK-5-MB-B | Documentation |
| FDA125A | RZQG125L8Y1 | |||
| High-static ducted units (FDA-A/RZQSG-L) | FDA125A | RZQSG125L9V1 | DK-5-MB-B | Documentation |
| FDA125A | RZQSG125L8Y1 | |||
| High-static ducted units (FDA-A/RR-B, FDA-A/RQ-B) | FDA125A | RQ125BW1 | DK-5-MB-B | Documentation |
| FDA125A | RR125BW1 | |||
| Cassette units (FCAG-B/RZQG-L) | FCAG71B | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FCAG100B | RZQG100L9V1/L8Y1 | |||
| FCAG125B | RZQG125L9V1/L8Y1 | |||
| FCAG140B | RZQG140L9V1/LY1 | |||
| Cassette units (FCAG-B/RZQSG-L) | FCAG71B | RZQSG71L3V | DK-5-MB-B | Documentation |
| FCAG100B | RZQSG100L9V1/L8Y1 | |||
| FCAG125B | RZQSG125L9V1/L8Y1 | |||
| FCAG140B | RZQSG140L9V1/LY1 | |||
| Cassette units (FCAG-B/RR-B, FCAG-B/RQ-B) | FCAG71B | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FCAG100B | RQ100BV3/W1 | |||
| FCAG125B | RQ125BW1 | |||
| FCAG71B | RR71BV3/W1 | |||
| FCAG100B | RR100BV3/W1 | |||
| FCAG125B | RR125BW1 | |||
| Cassette units (FCAHG-H/RZQG-L) | FCAHG71H | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZQG100L9V1/L8Y1 | |||
| FCAHG125H | RZQG125L9V1/L8Y1 | |||
| FCAHG140H | RZQG140L9V1/LY1 | |||
| Cassette units (FCAHG-H/RZQSG-L) | FCAHG71H | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZQSG100L9V1/L8Y1 | |||
| FCAHG125H | RZQSG125L9V1/L8Y1 | |||
| FCAHG140H | RZQSG140L9V1/LY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZQG-L) | FUA71A | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FUA100A | RZQG100L9V1/L8Y1 | |||
| FUA125A | RZQG125L9V1/L8Y1 | |||
| Four-way ceiling-suspended units (FUA-A/RZQSG-L) | FUA71A | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FUA100A | RZQSG100L9V1/L8Y1 | |||
| FUA125A | RZQSG125L9V1/L8Y1 | |||
| Four-way ceiling-suspended units (FUA-A/RR-B, FUA-A/RQ-B) | FUA71A | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FUA100A | RQ100BV3/W1 | |||
| FUA125A | RQ125BW1 | |||
| FUA71A | RR71BV3/W1 | |||
| FUA100A | RR100BV3/W1 | |||
| FUA125A | RR125BW1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZQG-L) | FHA71A(9) | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FHA100A | RZQG100L9V1/L8Y1 | |||
| FHA125A | RZQG125L9V1/L8Y1 | |||
| FHA140A | RZQG140L9V1/LY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZQSG-L) | FHA71A(9) | RZQSG71L3V1 | DK-5-MB-B | Documentation |
| FHA100A | RZQSG100L9V1/L8Y1 | |||
| FHA125A | RZQSG125L9V1/L8Y1 | |||
| FHA140A | RZQSG140L9V1/LY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RR-B, FHA-A(9)/RQ-B) | FHA71A9 | RQ71BV3/W1 | DK-5-MB-B | Documentation |
| FHA100A | RQ100BV3/W1 | |||
| FHA125A | RQ125BW1 | |||
| FHA71A9 | RR71BV3/W1 | |||
| FHA100A | RR100BV3/W1 | |||
| FHA125A | RR125BW1 | |||
| Column units (FVA-A/RZQG-L) | FVA71A | RZQG71L9V1/L8Y1 | DK-5-MB-B | Documentation |
| FVA100A | RZQG100L9V1/L8Y1 | |||
| FVA125A | RZQG125L9V1/L8Y1 | |||
| FVA140A | RZQG140L9V1/LY1 | |||
| Column units (FVA-A/RZQSG-L) | FVA71A | RZQSG125L9V1 | DK-5-MB-B | Documentation |
| FVA100A | RZQSG100L9V1/L8Y1 | |||
| FVA125A | RZQSG125L9V1/L8Y1 | |||
| FVA140A | RZQSG140L9V1/LY1 | |||
| Multi-split outdoor units | |||
| Outdoor units | | 2MXM40N | Not supported | Documentation |
| | 2MXM50N | |||
| | 2MXM68N | |||
| | 3MXM40N8 | |||
| | 3MXM52N8 | |||
| | 3MXM68N9 | |||
| | 4MXM68N9 | |||
| | 4MXM80N9 | |||
| | 5MXM90N9 | |||
| | 2MXF40A | |||
| | 2MXF50A | |||
| | 3MXF52A(9) | |||
| | 3MXF68A(9) | |||
| | RXYSCQ4TV1 | |||
| | RXYSCQ5TV1 | |||
| | RXYSCQ6TV1 | |||
| | RXYSQ4T8V/Y | |||
| | RXYSQ5T8V/Y | |||
| | RXYSQ6T8V/Y | |||
| | RXYSQ8TY1 | |||
| | RXYSQ10TY1 | |||
| | RXYSQ12TY1 | |||
2020
|
Air-conditioning series |
Air-conditioning model | Gateway | Documentation |
| Air purifiers | |||
| Air purifier | MC55W | Not supported | Documentation |
| MC70L | |||
| Split systems | |||
| Wall-mounted units Emura (FTXJ-MW(MS)/RXJ-M(N)) | FTXJ20M-W/S | RXJ20M | DK-1-MB-B | Documentation |
| FTXJ25M-W/S | RXJ25M | |||
| FTXJ35M-W/S | RXJ35M | |||
| FTXJ50M-W/S | RXJ50N | |||
| Wall-mounted units Emura (FTXG-L/RXG-L) | FTXG20LW/S | RXG20L | DK-1-MB-B | Documentation |
| FTXG25LW/S | RXG25L | |||
| FTXG35LW/S | RXG35L | |||
| FTXG50LW/S | RXG50L | |||
| Wall-mounted units Perfera (FTXM-N/RXM-N(9), CTXM-N) | CTXM15N | MXM-M | DK-1-MB-B | Documentation |
| FTXM20N | RXM20N9 | |||
| FTXM25N | RXM25N9 | |||
| FTXM35N | RXM35N9 | |||
| FTXM42N | RXM42N9 | |||
| FTXM50N | RXM50N9 | |||
| FTXM60N | RXM60N9 | |||
| FTXM71N | RXM71N | |||
| Wall-mounted units Perfera (FTXS-K/RXS-L3, CTXS-K) | FTXS20K | RXS20L3 | DK-1-MB-B | Documentation |
| FTXS25K | RXS25L3 | |||
| CTXS15K | |||
| CTXS35K | |||
| Wall-mounted units Perfera (FTXS-K/RXS-L(3)) | FTXS35K | RXS35L3 | DK-1-MB-B | Documentation |
| FTXS42K | RXS42L | |||
| FTXS50K | RXS50L | |||
| Wall-mounted units Perfera (FTXS-G/RXS-L/F8) | FTXS60G | RXS60L | DK-1-MB-B | Documentation |
| FTXS71G | RXS71F8 | |||
| Wall-mounted units Comfora (FTXP-K3(L)/RXP-K3(L)) | FTXP20K3/L | RXP20K3/L | DK-1-MB-B | Documentation |
| FTXP25K3/L | RXP25K3/L | |||
| FTXP35K3/L | RXP35K3/L | |||
| FTXP50K3/L | RXP50K3/L | |||
| FTXP60K3/L | RXP60K3/L | |||
| FTXP71K3/L | RXP71K3/L | |||
| Wall-mounted units Comfora (FTXP-M(9)/RXP-M) | FTXP20M9 | RXP20M | DK-1-MB-B | Documentation |
| FTXP25M9 | RXP25M | |||
| FTXP35M9 | RXP35M | |||
| FTXP50M | RXP50M | |||
| FTXP60M | RXP60M | |||
| FTXP71M | RXP71M | |||
| Wall-mounted units Sensira (FTXF-A(B)/RXF-A(B)) | FTXF20B | RXF20B | DK-1-MB-B | Documentation |
| FTXF25B | RXF25B | |||
| FTXF35A | RXF35A | |||
| FTXF50A | RXF50B | |||
| FTXF60A | RXF60B | |||
| FTXF71A | RXF71A | |||
| Wall-mounted units Sensira (FTXB-C/RXB-C) | FTXB20C | RXB20C | DK-1-MB-B | Documentation |
| FTXB25C | RXB25C | |||
| FTXB35C | RXB35C | |||
| FTXB50C | RXB50C | |||
| FTXB60C | RXB60C | |||
| Wall-mounted units (FTYN-L/RYN-L) | FTYN20L | RYN20L | DK-1-MB-B | Documentation |
| FTYN25L | RYN25L | |||
| FTYN35L | RYN35L | |||
| FTYN50L | RYN50L | |||
| FTYN60L | RYN60L | |||
| Universal units (FLXS-B(9)/RXS-L(3)) | FLXS25B | RXS25L3 | DK-1-MB-B | Documentation |
| FLXS35B9 | RXS35L3 | |||
| FLXS50B | RXS50L | |||
| FLXS60B | |||
| Floor-standing units Nexura (FVXG-K/RXG-L) | FVXG25K | RXG25L | DK-1-MB-B | Documentation |
| FVXG35K | RXG35L | |||
| FVXG50K | RXG50L | |||
| Floor-standing units (FVXM-F/RXM-N9) | FVXM25F | RXM25N9 | DK-1-MB-B | Documentation |
| FVXM35F | RXM35N9 | |||
| FVXM50F | RXM50N9 | |||
| Floor-standing units (FVXS-F/RXS-L(3)) | FVXS25F | RXS25L3 | DK-1-MB-B | Documentation |
| FVXS35F | RXS35L3 | |||
| FVXS50F | RXS50L | |||
| Low-static ducted units (FDXM-F9/RXM-N9) | FDXM25F9 | RXM25N9 | DK-5-MB-B | Documentation |
| FDXM35F9 | RXM35N9 | |||
| FDXM50F9 | RXM50N9 | |||
| FDXM60F9 | RXM60N9 | |||
| Low-static ducted units (FDXM-F9/RXS-L(3)) | FDXM25F9 | RXS25L3 | DK-5-MB-B | Documentation |
| FDXM35F9 | RXS35L3 | |||
| FDXM50F9 | RXS50L | |||
| FDXM60F9 | RXS60L | |||
| Split systems, series Sky Air (R-32) | |||
| Wall-mounted units Perfera (FTXM-N/RZAG-A) | FTXM35N | RZAG35A | DK-1-MB-B | Documentation |
| FTXM50N | RZAG50A | |||
| FTXM60N | RZAG60A | |||
| Wall-mounted units (FAA-A/RZAG-N) | FAA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FAA100A | RZAG100NV1/NY1 | |||
| Wall-mounted units (FAA-A/RZAG-M) | FAA71A | RZAG71MV1/MY1 | DK-5-MB-B | Documentation |
| FAA100A | RZAG100MV1/MY1 | |||
| Wall-mounted units (FAA-A/RZASG-M) | FAA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FAA100A | RZASG100MV1/MY1 | |||
| Wall-mounted units (FAA-A/AZAS-M) | FAA71A | AZAS71MV1 | DK-5-MB-B | Documentation |
| FAA100A | AZAS100MV1/MY1 | |||
| Low-static ducted units (FDXM-F9/RZAG-A) | FDXM35F9 | RZAG35A | DK-5-MB-B | Documentation |
| FDXM50F9 | RZAG50A | |||
| FDXM60F9 | RZAG60A | |||
| Medium-static ducted units (FBA-A9/RXM-N9) | FBA35A9 | RXM35N9 | DK-5-MB-B | Documentation |
| FBA50A9 | RXM50N9 | |||
| FBA60A9 | RXM60N9 | |||
| Medium-static ducted units (FBA-A(9)/RZAG-A(N)) | FBA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FBA50A9 | RZAG50A | |||
| FBA60A9 | RZAG60A | |||
| FBA71A9 | RZAG71NV1/NY1 | |||
| FBA100A | RZAG100NV1/NY1 | |||
| FBA125A | RZAG125NV1/NY1 | |||
| FBA140A | RZAG140NV1/NY1 | |||
| Medium-static ducted units (FBA-A(9)/RZAG-M) | FBA71A9 | RZAG71MV1/MY1 | DK-5-MB-B | Documentation |
| FBA100A | RZAG100MV1/MY1 | |||
| FBA125A | RZAG125MV1/MY1 | |||
| FBA140A | RZAG140MV1/MY1 | |||
| Medium-static ducted units (FBA-A(9)/RZASG-M) | FBA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FBA100A | RZASG100MV1/MY1 | |||
| FBA125A | RZASG125MV1/MY1 | |||
| FBA140A | RZASG140MV1/MY1 | |||
| Medium-static ducted units (FBA-A(9)/AZAS-M) | FBA71A9 | AZAS71MV1 | DK-5-MB-B | Documentation |
| FBA100A | AZAS100MV1/MY1 | |||
| FBA125A | AZAS125MV1/MY1 | |||
| FBA140A | AZAS140MV1/MY1 | |||
| High-static ducted units (FDA-A/RZAG-N) | FDA125A | RZAG125NV1 | DK-5-MB-B | Documentation |
| FDA125A | RZAG125NY1 | |||
| High-static ducted units (FDA-A/RZAG-M) | FDA125A | RZAG125MV1 | DK-5-MB-B | Documentation |
| FDA125A | RZAG125MY1 | |||
| High-static ducted units (FDA-A/RZASG-M) | FDA125A | RZASG125MV1 | DK-5-MB-B | Documentation |
| FDA125A | RZASG125MY1 | |||
| High-static ducted units (FDA-A/RZA-D) | FDA200A | RZA200D | DK-5-MB-B | Documentation |
| FDA250A | RZA250D | |||
| Cassette units (FFA-A9/RXM-N9) | FFA25A9 | RXM25N9 | DK-5-MB-B | Documentation |
| FFA35A9 | RXM35N9 | |||
| FFA50A9 | RXM50N9 | |||
| FFA60A9 | RXM60N9 | |||
| Cassette units (FFA-A9/RZAG-A) | FFA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FFA50A9 | RZAG50A | |||
| FFA60A9 | RZAG60A | |||
| Cassette units (FCAG-B/RXM-N9) | FCAG35B | RXM35N9 | DK-5-MB-B | Documentation |
| FCAG50B | RXM50N9 | |||
| FCAG60B | RXM60N9 | |||
| Cassette units (FCAG-B/RZAG-A/N) | FCAG35B | RZAG35A | DK-5-MB-B | Documentation |
| FCAG50B | RZAG50A | |||
| FCAG60B | RZAG60A | |||
| FCAG71B | RZAG71NV1/NY1 | |||
| FCAG100B | RZAG100NV1/NY1 | |||
| FCAG125B | RZAG125NV1/NY1 | |||
| FCAG140B | RZAG140NV1/NY1 | |||
| Cassette units (FCAG-B/RZAG-M) | FCAG71B | RZAG71MV1/MY1 | DK-5-MB-B | Documentation |
| FCAG100B | RZAG100MV1/MY1 | |||
| FCAG125B | RZAG125MV1/MY1 | |||
| FCAG140B | RZAG140MV1/MY1 | |||
| Cassette units (FCAG-B/RZASG-M) | FCAG71B | RZASG71MV1 | DK-5-MB-B | Documentation |
| FCAG100B | RZASG100MV1/MY1 | |||
| FCAG125B | RZASG125MV1/MY1 | |||
| FCAG140B | RZASG140MV1/MY1 | |||
| Cassette units (FCAG-B/AZAS-M) | FCAG71B | AZAS71MV1 | DK-5-MB-B | Documentation |
| FCAG100B | AZAS100MV1/MY1 | |||
| FCAG125B | AZAS125MV1/MY1 | |||
| FCAG140B | AZAS140MV1/MY1 | |||
| Cassette units (FCAHG-H/RZAG-N) | FCAHG71H | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZAG100NV1/NY1 | |||
| FCAHG125H | RZAG125NV1/NY1 | |||
| FCAHG140H | RZAG140NV1/NY1 | |||
| Cassette units (FCAHG-H//RZAG-M) | FCAHG71H | RZAG71MV1/MY1 | DK-5-MB-B | Documentation |
| FCAHG100H | RZAG100MV1/MY1 | |||
| FCAHG125H | RZAG125MV1/MY1 | |||
| FCAHG140H | RZAG140MV1/MY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZAG-N) | FUA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FUA100A | RZAG100NV1/NY1 | |||
| FUA125A | RZAG125NV1/NY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZAG-M) | FUA71A | RZAG71MV1/MY1 | DK-5-MB-B | Documentation |
| FUA100A | RZAG100MV1/MY1 | |||
| FUA125A | RZAG125MV1/MY1 | |||
| Four-way ceiling-suspended units (FUA-A/RZASG-M) | FUA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FUA100A | RZASG100MV1/MY1 | |||
| FUA125A | RZASG125MV1/MY1 | |||
| One-way ceiling-suspended units (FHA-A9/RXM-N9) | FHA35A9 | RXM35N9 | DK-5-MB-B | Documentation |
| FHA50A9 | RXM50N9 | |||
| FHA60A9 | RXM60N9 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZAG-A(N)) | FHA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FHA50A9 | RZAG50A | |||
| FHA60A9 | RZAG60A | |||
| FHA71A9 | RZAG71NV1/NY1 | |||
| FHA100A | RZAG100NV1/NY1 | |||
| FHA125A | RZAG125NV1/NY1 | |||
| FHA140A | RZAG140NV1/NY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZAG-M) | FHA71A9 | RZAG71MV1/MY1 | DK-5-MB-B | Documentation |
| FHA100A | RZAG100MV1/MY1 | |||
| FHA125A | RZAG125MV1/MY1 | |||
| FHA140A | RZAG140MV1/MY1 | |||
| One-way ceiling-suspended units (FHA-A(9)/RZASG-M) | FHA71A9 | RZASG71MV1 | DK-5-MB-B | Documentation |
| FHA100A | RZASG100MV1/MY1 | |||
| FHA125A | RZASG125MV1/MY1 | |||
| FHA140A | RZASG140MV1/MY1 | |||
| Concealed floor-standing units (FNA-A9/RXM-N9) | FNA25A9 | RXM25N9 | DK-5-MB-B | Documentation |
| FNA35A9 | RXM35N9 | |||
| FNA50A9 | RXM50N9 | |||
| FNA60A9 | RXM60N9 | |||
| Concealed floor-standing units (FNA-A9/RZAG-A) | FNA35A9 | RZAG35A | DK-5-MB-B | Documentation |
| FNA50A9 | RZAG50A | |||
| FNA60A9 | RZAG60A | |||
| Column units (FVA-A/RZAG-N) | FVA71A | RZAG71NV1/NY1 | DK-5-MB-B | Documentation |
| FVA100A | RZAG100NV1/NY1 | |||
| FVA125A | RZAG125NV1/NY1 | |||
| FVA140A | RZAG140NV1/NY1 | |||
| Column units (FVA-A/RZAG-M) | FVA71A | RZAG71MV1/MY1 | DK-5-MB-B | Documentation |
| FVA100A | RZAG100MV1/MY1 | |||
| FVA125A | RZAG125MV1/MY1 | |||
| FVA140A | RZAG140MV1/MY1 | |||
| Column units (FVA-A/RZASG-M) | FVA71A | RZASG71MV1 | DK-5-MB-B | Documentation |
| FVA100A | RZASG100MV1/MY1 | |||
| FVA125A | RZASG125MV1/MY1 | |||
| FVA140A | RZASG140MV1/MY1 | |||
| Split systems, series Sky Air (R-410A) | |||
| Wall-mounted units (FAA-A/RZQG-L) | FAA71A | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FAA100A | RZQG100L9V/L8Y | |||
| Wall-mounted units (FAA-A/RZQSG-L) | FAA71A | RZQSG71L3V | DK-5-MB-B | Documentation |
| FAA100A | RZQSG100L9V/L8Y | |||
| Wall-mounted units (FAA-A/RR-B, FAA-A/RQ-B) | FAA71A | RQ71BV/W | DK-5-MB-B | Documentation |
| FAA100A | RQ100BV/W | |||
| FAA71A | RR71BV/W | |||
| FAA100A | RR100BV/W | |||
| Medium-static ducted units (FBA-A9/RXS-L(3)) | FBA35A9 | RXS35L3 | DK-5-MB-B | Documentation |
| FBA50A9 | RXS50L | |||
| FBA60A9 | RXS60L | |||
| Medium-static ducted units (FBA-A(9)/RZQG-L) | FBA71A9 | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FBA100A | RZQG100L9V/L8Y | |||
| FBA125A | RZQG125L9V/L8Y | |||
| FBA140A | RZQG140L9V/LY | |||
| Medium-static ducted units (FBA-A(9)/RZQSG-L) | FBA71A9 | RZQSG71L3V | DK-5-MB-B | Documentation |
| FBA100A | RZQSG100L9V/L8Y | |||
| FBA125A | RZQSG125L9V/L8Y | |||
| FBA140A | RZQSG140L9V/LY | |||
| Medium-static ducted units (FBA-A(9)/RR-B, FBA-A(9)/RQ-B) | FBA71A9 | RQ71BV/W | DK-5-MB-B | Documentation |
| FBA100A | RQ100BV/W | |||
| FBA125A | RQ125BW | |||
| FBA71A9 | RR71BV/W | |||
| FBA100A | RR100BV/W | |||
| FBA125A | RR125BW | |||
| High-static ducted units (FDA-A/RZQG-L) | FDA125A | RZQG125L9V | DK-5-MB-B | Documentation |
| FDA125A | RZQG125L8Y | |||
| High-static ducted units (FDA-A/RZQSG-L) | FDA125A | RZQSG125L9V | DK-5-MB-B | Documentation |
| FDA125A | RZQSG125L8Y | |||
| High-static ducted units (FDA-A/RR-B, FDA-A/RQ-B) | FDA125A | RQ125BW | DK-5-MB-B | Documentation |
| FDA125A | RR125BW | |||
| High-static ducted units (FDA-A/RZQ-C) | FDA200A | RZQ200C | DK-5-MB-B | Documentation |
| FDA250A | RZQ250C | |||
| Cassette units (FFA-A9/RXS-L(3)) | FFA25A9 | RXS25L3 | DK-5-MB-B | Documentation |
| FFA35A9 | RXS35L3 | |||
| FFA50A9 | RXS50L | |||
| FFA60A9 | RXS60L | |||
|
Cassette units (FCAG-B//RXS-L(3) ) |
FCAG35B | RXS35L3 | DK-5-MB-B | Documentation |
| FCAG50B | RXS50L | |||
| FCAG60B | RXS60L | |||
| Cassette units (FCAG-B/RZQG-L) | FCAG71B | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FCAG100B | RZQG100L9V/L8Y | |||
| FCAG125B | RZQG125L9V/L8Y | |||
| FCAG140B | RZQG140L9V/LY | |||
| Cassette units (FCAG-B/RZQSG-L) | FCAG71B | RZQSG71L3V | DK-5-MB-B | Documentation |
| FCAG100B | RZQSG100L9V/L8Y | |||
| FCAG125B | RZQSG125L9V/L8Y | |||
| FCAG140B | RZQSG140L9V/LY | |||
| Cassette units (FCAG-B/RR-B, FCAG-B/RQ-B) | FCAG71B | RQ71BV/W | DK-5-MB-B | Documentation |
| FCAG100B | RQ100BV/W | |||
| FCAG125B | RQ125BW | |||
| FCAG71B | RR71BV/W | |||
| FCAG100B | RR100BV/W | |||
| FCAG125B | RR125BW | |||
| Cassette units (FCAHG-H/RZQG-L) | FCAHG71H | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FCAHG100H | RZQG100L9V/L8Y | |||
| FCAHG125H | RZQG125L9V/L8Y | |||
| FCAHG140H | RZQG140L9V/LY | |||
| Cassette units (FCAHG-H/RZQSG-L) | FCAHG71H | RZQSG71L3V | DK-5-MB-B | Documentation |
| FCAHG100H | RZQSG100L9V/L8Y | |||
| FCAHG125H | RZQSG125L9V/L8Y | |||
| FCAHG140H | RZQSG140L9V/LY | |||
| Four-way ceiling-suspended units (FUA-A/RZQG-L) | FUA71A | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FUA100A | RZQG100L9V/L8Y | |||
| FUA125A | RZQG125L9V/L8Y | |||
| Four-way ceiling-suspended units (FUA-A/RZQSG-L) | FUA71A | RZQSG71L3V | DK-5-MB-B | Documentation |
| FUA100A | RZQSG100L9V/L8Y | |||
| FUA125A | RZQSG125L9V/L8Y | |||
| Four-way ceiling-suspended units (FUA-A/RR-B, FUA-A/RQ-B) | FUA71A | RQ71BV/W | DK-5-MB-B | Documentation |
| FUA100A | RQ100BV/W | |||
| FUA125A | RQ125BW | |||
| FUA71A | RR71BV/W | |||
| FUA100A | RR100BV/W | |||
| FUA125A | RR125BW | |||
| One-way ceiling-suspended units (FHA-A(9)/RXS-L(3)) | FHA35A(9) | RXS35L3 | DK-5-MB-B | Documentation |
| FHA50A(9) | RXS50L | |||
| FHA60A(9) | RXS60L | |||
| One-way ceiling-suspended units (FHA-A(9)/RZQG-L) | FHA71A(9) | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FHA100A | RZQG100L9V/L8Y | |||
| FHA125A | RZQG125L9V/L8Y | |||
| FHA140A | RZQG140L9V/LY | |||
| One-way ceiling-suspended units (FHA-A(9)/RZQSG-L) | FHA71A(9) | RZQSG71L3V | DK-5-MB-B | Documentation |
| FHA100A | RZQSG100L9V/L8Y | |||
| FHA125A | RZQSG125L9V/L8Y | |||
| FHA140A | RZQSG140L9V/LY | |||
| One-way ceiling-suspended units (FHA-A(9)/RR-B, FHA-A(9)/RQ-B) | FHA71A9 | RQ71BV/W | DK-5-MB-B | Documentation |
| FHA100A | RQ100BV/W | |||
| FHA125A | RQ125BW | |||
| FHA71A9 | RR71BV/W | |||
| FHA100A | RR100BV/W | |||
| FHA125A | RR125BW | |||
| Concealed floor-standing units (FNA-A9/RXS-L(3)) | FNA25A9 | RXS25L3 | DK-5-MB-B | Documentation |
| FNA35A9 | RXS35L3 | |||
| FNA50A9 | RXS50L | |||
| FNA60A9 | RXS60L | |||
| Column units (FVA-A/RZQG-L) | FVA71A | RZQG71L9V/L8Y | DK-5-MB-B | Documentation |
| FVA100A | RZQG100L9V/L8Y | |||
| FVA125A | RZQG125L9V/L8Y | |||
| FVA140A | RZQG140L9V/LY | |||
| Column units (FVA-A/RZQSG-L) | FVA71A | RZQSG71L3V | DK-5-MB-B | Documentation |
| FVA100A | RZQSG100L9V/L8Y | |||
| FVA125A | RZQSG125L9V/L8Y | |||
| FVA140A | RZQSG140L9V/LY | |||
| Multi-split outdoor units | |||
| Outdoor units | | 2MXM40M | Not supported | Documentation |
| | 2MXM50M9 | |||
| | 3MXM40N | |||
| | 3MXM52N | |||
| | 3MXM68N | |||
| | 4MXM80N | |||
| | 5MXM90N | |||
| | 2MXS40H | |||
| | 2MXS50H | |||
| | 3MXS40K | |||
| | 3MXS52E | |||
| | 3MXS68G/4MXS68F | |||
| | 4MXS80E | |||
| | 5MXS90E | |||
| | RXYSCQ4TV1 | |||
| | RXYSCQ5TV1 | |||
| | RXYSCQ6TV1 | |||
| | RXYSQ4T8V1/Y1 | |||
| | RXYSQ5T8V1/Y1 | |||
| | RXYSQ6T8V1/Y1 | |||
| | RXYSQ8TY | |||
| | RXYSQ10TY | |||
| | RXYSQ12TY | |||
Copied.
Ventalen © 2026
All rights reserved
Website maintained by the Ventalen technical team
